| Name: | Washbox/Jigging Machines | Feeding Size: | 3 Mm |
|---|---|---|---|
| Capacity: | 0.018-0.6 T/h | Rush Times: | 420/min |
| Power: | 0.55KW | Motor Model: | Y80L-4 |
| Jig Chamber: | 1 | Classification: | Ore Dressing Equipment |
| High Light: | Ore Dressing Equipment Mineral Jig,3mm Feeding Mineral Jig,3mm Feeding Ore Dressing Equipment |
||

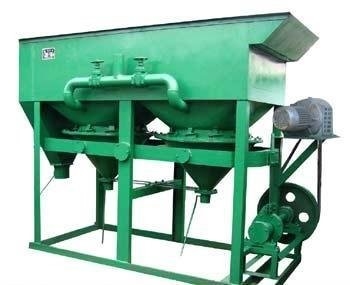

Mining Ore Dressing Equipment Jigging Machines Gravity Washbox
1.Ore Dressing Equipment jig product description
Jigging pause ore belongs to readjust the sorting operation, it with water as a separation medium, using the selected in the proportion of gangue minerals difference, carries on the sorting, jig belongs to the diaphragm, stroke and speed according to the proportion of the selected mineral, can be adjusted flexibly, widely used in tungsten, tin, alluvial gold, hematite, brown iron, manganese, titanium, antimony, lead, tantalum, niobium metals such as gravity separation.
2. Ore Dressing Equipment Jigging Machines Sawtooth wave jig specifications and detailed parameters are as follows:

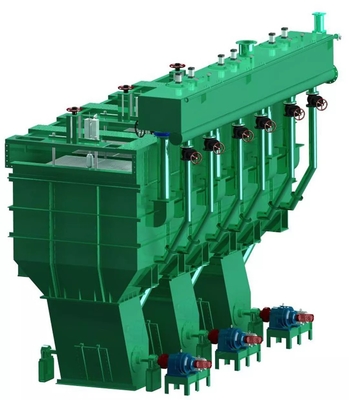

Sawtooth wave jig is one of the key equipment of gravity beneficiation. Because of its large processing capacity, wide separation size range, high recovery, good effect, it is widely used in the separation of sand gold, tin, tungsten, lead, zinc, antimony, manganese, diamond, iron ore and other non-ferrous metallurgy mines and gold mining ships. The jT4-2, JT1.5-2 type sawtooth wave large particle jig of this kind of products, the maximum particle size of ore feeding can reach 30MM, using the screen on the screen to discharge ore. It is applied to the beneficiation of barite ore, manganese ore, iron ore and so on. It has the advantages of wide size range of ore and significantly reduced water supply under the screen.
The traditional jig is mostly driven by circumferential eccentricity, and its jig pulsation curve is mostly sinusoidal. Because the rising and falling water velocity and action time generated by diaphragm movement are basically the same, it is not conducive to the loosening of jig bed layer and the stratification of ore particles according to specific gravity, thus affecting the separation ratio and recovery rate of equipment.
Zigzag wave jig is an energy-saving gravity separation equipment developed and improved on the basis of traditional jig according to the theoretical stratification law of jig bed layer. Its jig ging pulsation curve is zigzag, which makes the rising flow faster than the falling flow: the rising time is short and the falling time is long; It overcomes the defects of sinusoidal wave and pulsating curve jig in rising and falling water flow and the same action time, enhances the looseness of the bed, alleviates the inhalation effect, makes the heavy ore particles in the minerals fully settle, and greatly improves the separation ratio capacity and recovery rate of the equipment. Compared with sinusoidal jig , Sn 3.01%, W 5.5%, Pb 1.63%, Zn 2.04%; The water consumption is reduced by 30%-40%, the floor area is reduced by 1/3, and the stroke can be adjusted, because the electromagnetic adjustment motor is used to drag the stroke can be stepless adjustment. Its performance has reached the domestic advanced level and it is one of the ideal energy-saving gravity separation equipment at present.
3. Mining Ore Dressing Equipment Main technical data of double bucket diaphragm jig :
Product specifications and technical parameters:
| Model SPEC | Jig chamber |
Screen room area (m²) |
Feeding size(mm) | Production capacity(t/h) | Length of stroke(mm) |
Times of stroke (times/min) |
Adding wate(t/h) |
(kg/cm²) |
Motor | Weight (kg) | |
| Type | Power (KW) | ||||||||||
|
100×150 Diaphragm jig |
1 | 0.015 | -3 | 0.018-0.6 | - | 420 | - | 1-1.5 | Y80L-4 | 0.55 | 130 |
|
300×450 Double chamber diaphragm jig |
2 | 0.27 | -12 | 3-6 | 0-26 | 322 | 2-4 | 1-1.5 | Y90S-4 | 1.1 | 745 |
|
1000×1000 Downmoving conical jig |
2 | 2 | 1-5 | 10-25 | 0-26 | 200-350 | 60-80 | 0.6-2 | Y100L-6 | 1.5 | 1700 |
|
370×360 Downmoving conical diaphragm jig |
2 | 0.274 | 6 | 1-3 | 5-25 | 200-250 | 2-5 | - | Y90S-4 | 1.1 | 240 |
| Working leather trapezoidal side moving diaphragm jig | 3 | 2.7 | -3 | 12.5-37.5 | 13-21 | 170-230 | 60-90 | 2 | Y90S-4 | 1.1 | 2000 |
| 670×920jig | 2 | 1.44 | 4-8 | 7-10 | 18-24 | 240-300 | |||||
