| Production Capacity: | 0.018-0.6T/h | Hydraulic Pressure: | 1-1.5 Kg/cm² |
|---|---|---|---|
| Weight: | Depands, 130kg | Warranty: | 1 YEAR |
| Classification: | 0.015 M² | Capacity T/h: | 0.018-0.6 |
| Power KW: | 0.55 | Applicable Industries: | Manufacturing Plant, Construction Works , Energy & Mining |
| High Light: | Manganese Ore Separating Jig Machine Mining,0.6T/H Jig Machine Mining,Mining Jig 0.55kw |
||

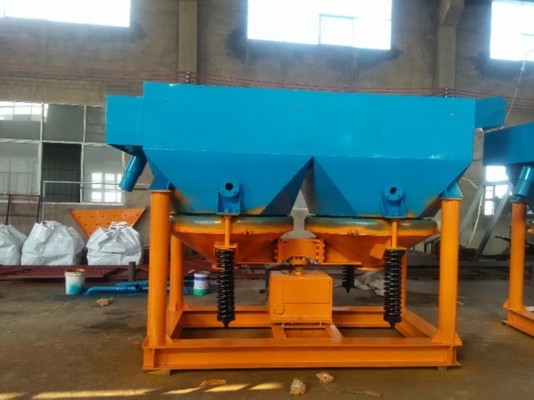

Mining Machine Jigger Jig Machine Washbox For Manganese Ore Separating
1. Ore Dressing Equipment jig Model Number:
(1) AM30 jig belongs to large particle jig . Widely used in gravity separation of tungsten, tin, placer gold, red iron, brown iron, manganese, titanium, antimony, lead, tantalum, niobium and other metals. Ltp34/2, LTA55/2, LTA1010/2, LTC-69/2, 2LTC79/4, 2LTC-912/4 and other types of jig can be produced according to customer requirements.
(2) 6109 trapezoidal jig trapezoidal jig , handling capacity of 20-30T per hour.
(3) Zigzag wave JT1070-2 jig has the advantages of water saving and energy saving and can improve the recovery of fine particles and minerals, widely used in tungsten, tin, gold, iron, manganese, titanium, adz, chromium, sulfur and all kinds of alloy smelting slag extraction of metal, etc.
(4) LTA-1010/2 jig is mainly used for processing tungsten, tin, antimony and other ore dressing.
(5) LTP34/2 jig is widely used for jig ging beneficiation of tungsten, tin, gold, iron, lead, zinc, manganese and other heavy metals.
(6) Diaphragm jig type:
jig can be divided into different types according to different standards, such as diaphragm installation position can be divided into:
Side operated diaphragm jig (e.g. Ltp34/2 jig )
Down-acting diaphragm jig (such as LTA1010/2 jig , JT1070/2 jig )
Side acting diaphragm jig (e.g. 2LTC-6109/8T jig )
Ore Dressing Equipment
2. Ore Dressing Equipment Sawtooth wave jig specifications and detailed parameters are as follows:
Sawtooth wave jig is one of the key equipment of gravity beneficiation. Because of its large processing capacity, wide separation size range, high recovery, good effect, it is widely used in the separation of sand gold, tin, tungsten, lead, zinc, antimony, manganese, diamond, iron ore and other non-ferrous metallurgy mines and gold mining ships. The jT4-2, JT1.5-2 type sawtooth wave large particle jig of this kind of products, the maximum particle size of ore feeding can reach 30MM, using the screen on the screen to discharge ore. It is applied to the beneficiation of barite ore, manganese ore, iron ore and so on. It has the advantages of wide size range of ore and significantly reduced water supply under the screen.
The traditional jig is mostly driven by circumferential eccentricity, and its jig pulsation curve is mostly sinusoidal. Because the rising and falling water velocity and action time generated by diaphragm movement are basically the same, it is not conducive to the loosening of jig bed layer and the stratification of ore particles according to specific gravity, thus affecting the separation ratio and recovery rate of equipment.
Zigzag wave jig is an energy-saving gravity separation equipment developed and improved on the basis of traditional jig according to the theoretical stratification law of jig bed layer. Its jig ging pulsation curve is zigzag, which makes the rising flow faster than the falling flow: the rising time is short and the falling time is long; It overcomes the defects of sinusoidal wave and pulsating curve jig in rising and falling water flow and the same action time, enhances the looseness of the bed, alleviates the inhalation effect, makes the heavy ore particles in the minerals fully settle, and greatly improves the separation ratio capacity and recovery rate of the equipment. Compared with sinusoidal jig , Sn 3.01%, W 5.5%, Pb 1.63%, Zn 2.04%; The water consumption is reduced by 30%-40%, the floor area is reduced by 1/3, and the stroke can be adjusted, because the electromagnetic adjustment motor is used to drag the stroke can be stepless adjustment. Its performance has reached the domestic advanced level and it is one of the ideal energy-saving gravity separation equipment at present.Ore Dressing Equipment
3. Ore Dressing Equipment Main technical data of double bucket diaphragm jig :
Product specifications and technical parameters:
| Model SPEC | Jig chamber |
Screen room area (m²) |
Feeding size(mm) | Production capacity(t/h) | Length of stroke(mm) |
Times of stroke (times/min) |
Adding wate(t/h) |
(kg/cm²) |
Motor | Weight (kg) | |
| Type | Power (KW) | ||||||||||
|
100×150 Diaphragm jig |
1 | 0.015 | -3 | 0.018-0.6 | - | 420 | - | 1-1.5 | Y80L-4 | 0.55 | 130 |
|
300×450 Double chamber diaphragm jig |
2 | 0.27 | -12 | 3-6 | 0-26 | 322 | 2-4 | 1-1.5 | Y90S-4 | 1.1 | 745 |
|
1000×1000 Downmoving conical jig |
2 | 2 | 1-5 | 10-25 | 0-26 | 200-350 | 60-80 | 0.6-2 | Y100L-6 | 1.5 | 1700 |
|
370×360 Downmoving conical diaphragm jig |
2 | 0.274 | 6 | 1-3 | 5-25 | 200-250 | 2-5 | - | Y90S-4 | 1.1 | 240 |
| Working leather trapezoidal side moving diaphragm jig | 3 | 2.7 | -3 | 12.5-37.5 | 13-21 | 170-230 | 60-90 | 2 | Y90S-4 | 1.1 | 2000 |
| 670×920jig | 2 | 1.44 | 4-8 | 7-10 | 18-24 | 240-300 | |||||
