Product Details:
Payment & Shipping Terms:
|
| Product: | High Efficiency Concentrator | Wild Used In: | Metallurgy, Chemical Industry，coal,environmental Protection |
|---|---|---|---|
| Processing Capacity: | Max 6250 T/d | Model No: | NZS、NZ、NT Series |
| USE: | Dewatering Concentrate And Tailings In Concentrator | Classification: | Ore Dressing Equipment |
| Certification: | IOS/CE | Warranty: | 12 Months |
| High Light: | IOS Thickeners In Mineral Processing,IOS Gravity Thickeners,Gravity Thickeners High Performance |
||
Ore Dressing Equipment High Efficiency Gravity Thickener Machine Ore Concentrate
1. Ore dressing equipment characteristics of high efficiency concentrator:
(1) Add flocculant to increase the size of settling solid particles, so as to accelerate the settling speed;
(2) Install inclined plate to shorten the settlement distance of ore particles and increase the settlement area;
(3) Play the role of flocculation, filtration, compression and increasing processing capacity of mud sediment thick phase layer;
(4) Equipped with complete automatic control facilities.
2. Ore dressing equipment product parameters of high efficiency concentrator:
Technical parameters of high efficiency concentrator:
| ITEM | Concentration basin(m) | Desilting area(m2) | Mention rake part | Motor | Processing capacity(t/d) | Weight (t) | |||||
| Model | Spec | Inner diameter | Depth | Floor of pool | Methods | Height (m) | One-turm time (min/r) | Drive | Lift | ||
| NZS-1 | Φ1.8m | 1.8 | 1.8 | 2.54 | Hand control | 0.16 | 2 | Y90L-6 1.1KW | ---- | 5.6 | 1.235 |
| NZS-3 | Φ3.6m | 3.6 | 1.8 | 10.2 | Hand control | 0.35 | 2.5 | Y90L-6 1.1KW | ---- | 22.4 | 3.064 |
| NZS-6 | Φ6m | 6 | 3 | 28.3 | Hand control | 0.2 | 3.7 | Y90S-4 1.1KW | ---- | 62 | 8.751 |
| NZSF-6 | Φ6m | 6 | 3 | 28.3 | Hand control | 3.7 | Y90S-4 1.1KW | ---- | 62 | 3.649 | |
| NZ-9 | Φ9m | 9 | 3 | 63.6 | Automatic | 0.25 | 4.34 | Y132S-6 3KW | XWD0.8-3 0.8KW | 140 | 6.134 |
| NZS-9 | Φ9m | 9 | 3 | 63.6 | Hand control | 0.25 | 4.34 | Y132S-6 3KW | ---- | 140 | 5.146 |
| NZS-12 | Φ12m | 12 | 3.5 | 113 | Hand control | 0.25 | 5.28 | Y132S-6 3KW | ---- | 250 | 8.51 |
| NZ-15 | Φ15m | 15 | 4.4 | 176 | Automatic | 0.4 | 10.4 | JTC752A-44 5.2KW | Y112M-6 2.2KW | 350 | 21.757 |
| NZ-20 | Φ20m | 20 | 4.4 | 314 | Automatic | 0.4 | 10.4 | JTC752A-44 5.2KW | Y112M-6 2.2KW | 960 | 24.504 |
| NZ-30 | Φ30m | 30 | 7.165 | 707 | ---- | 0.61 | 13.7 | Y100L1-4 2.2×2KW | YCJ132-S 1.5KW | ---- | 31.8 |
| NZS-45 | Φ45m | 45 | 4.636 | 1590 | Hand control | ---- | 20 | JTC672A-44 5.2KW | YCJ160-S 2.2KW |
515 |
47.81 |
| NT-15 | Φ15m | 15 | 3.5 | 177 | ---- | ---- | 8.4 | Y132M2-6 5.5KW |
---- |
390 | 11 |
| NQ-18 | Φ18m | 18 | 3.5 | 255 | ---- | ---- | 10 | Y132M2-6 5.5KW | ---- | 560 | 10 |
| NQ-24 | Φ24m | 24 | 3.4 | 452 | ---- | ---- | 12.7 | Y160M-6 7.5KW | ---- | 1000 | 23.3 |
| NG-30 | Φ30m | 30 | 3.6 | 707 | ---- | ---- | 16 | Y160M-6 7.5KW | ---- | 1570 | 26.42 |
| NJ-38 | Φ38m | 38 | 4.9 | 1134 | ---- | ---- | 10-25 | JZT252-4 11KW | Y160M-6 7.5KW | 1600 | 55.26 |
| NT-45 | Φ45m | 45 | 5.05 | 1590 | Automatic | ---- | 19.3 | Y160L-6 11KW |
---- |
2400 | 58.64 |
| NTJ-53 | Φ53m | 53 | 5.07 | 2202 | ---- | ---- | 23.18 | Y180L-6-15kw | ---- | 6250 | 79.80 |
| NT-100 | Φ100m | 100 | 5.65 | 7846 |
---- |
---- |
43 | Y180L-6 15KW |
---- |
3030 | 199.648 |

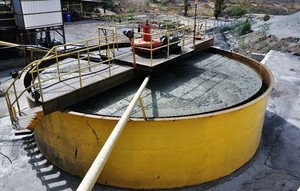

Ore Dressing Equipment High Efficiency Gravity Thickener Machine Ore Concentrate

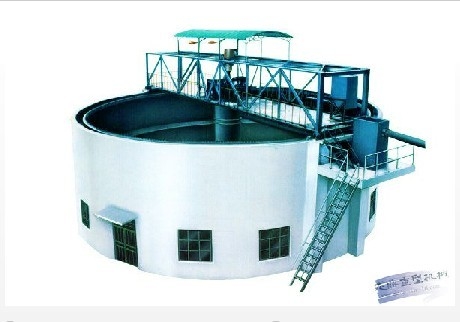

Ore Dressing Equipment High Efficiency Gravity Thickener Machine Ore Concentrate
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
