Product Details:
Payment & Shipping Terms:
|
| Model: | XJM Flotation Machine | Condition: | New |
|---|---|---|---|
| Type: | XJM-1 Flotation Separator | Single Effective Weight (kg): | 1154 |
| Effective Cubage (m3): | 1 | Color: | Custom |
| Warranty: | 12 Months | Classification: | Ore Dressing Equipment |
| High Light: | High Effective Cubage Ore Dressing Equipment,High Effective Cubage Flotation Separator,ISO Flotation Separator |
||

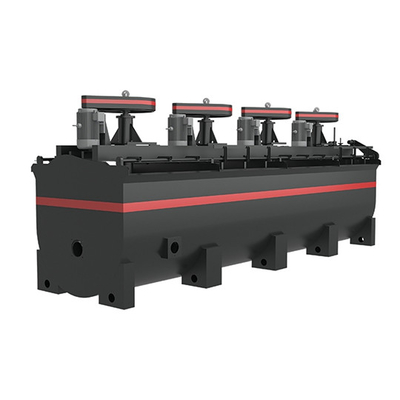

Ore Dressing Equipment XJM Series Flotation Machine With High Effective Cubage
1. Introduction of flotation machine ore dressing equipment
Flotation machine is suitable for the separation of non-ferrous metals, but also for the separation of non-metals such as coal stone, talc.
The flotation machine adopts "U" type tank, hollow shaft inflation and suspension stator, especially a new impeller. It is a conical impeller with blades tilted backward at an Angle, similar to centrifugal pump wheels with high specific speed. It has a large amount of pulp, small pressure head, low power consumption and simple structure. A porous cylindrical air distributor is also installed in the impeller chamber, so that the air can be evenly dispersed in most areas of the impeller blade in advance, providing a larger pulp - air contact interface.
2. Characteristics of flotation machine ore dressing equipment:
Flotation machine has the following characteristics: large suction capacity, low power consumption. Each slot has a triple function of suction, pulping and flotation, with its own flotation loop, without any auxiliary equipment, configuration level, easy to change the process.
3. Technical parameters of flotation machine Ore dressing equipment
Ore dressing equipment Technical data: XJM Flotation Machine
| Model | XJM-1 | XJM-2 | XJM-3 | XJM-4 | XJM-8 | XJM-16 | XJM-24 | XJM-38 | |
| Chute dimensions | Length (mm) | 1000 | 1300 | 1600 | 1800 | 2200 | 2800 | 3100 | 3600 |
| Width (mm) | 1000 | 1300 | 1600 | 1800 | 2200 | 2800 | 3100 | 3600 | |
| Height (mm) | 1100 | 1250 | 1400 | 1500 | 1950 | 2400 | 10819 | 3400 | |
| Single effective weight (kg) | 1154 | 1659 | 2259 | 2669 | 3868 | 6520 | 8000 | 16790 | |
| Effective cubage (m3) | 1 | 2 | 3 | 4 | 8 | 16 | 24 | 38 | |
| Production capacity(calculated by slurry volume) (m3/min) | 0.2-1 | 0.4-2 | 0.6-3 | 1.2-4 | 3-8 | 4-16 | 4-24 | 10-38 | |
| Main shaft motor | Model | Y132M2-6 | Y160M-6 | Y160L-6 | Y180L-6 | Y200L2-6 | Y280S-8 | Y280S-8 | Y280S-6 |
| Power (kw) | 5.5 | 7.5 | 11 | 15 | 22 | 37 | 37 | 45 | |
| Impeller | |||||||||
| Rotation speed (r/min) | 960 | 970 | 970 | 970 | 970 | 740 | 740 | 980 - |
|
| Diameter (mm) | 400 | 460 | 540 | 620 | 720 | 860 | 950 | ||
| Height (mm) | 155 | 175 | 207 | 247 | 321 | 349 | - | - | |
| Rotation speed (r/min) | 358 | 331 | 266 | 215 | 185 | 160 | 153 | - | |
| Circular velocity (m/s) | 7.5 | 7.5 | 7.5 | 7 | 6.97 | 7.6 | 7.6 | 7.4 | |
| Loam board motor | Model | Y90S-4 | Y90S-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 |
| Power (kw) | 1.1 | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Rotation speed (r/min) | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | |
| Loam board | Rotation speed (r/min) | 18 | 18 | 16 | 16 | 16 | 16 | 16 | 16 |
| Diameter (mm) | 500 | 500 | 580 | 600 | 600 | 700 | 700 | 700 | |
| Wind pressure of fan (kpa) | ≥12.6 | ≥14.7 | ≥19.8 | ≥19.8 | ≥21.6 | ≥25.5 | ≥30.4 | ≥34.3 | |
| Max.air injection amount (m3/㎡·min) | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
