Product Details:
Payment & Shipping Terms:
|
| Model: | SF/XJM Flotation Machine | Name: | Flotation Separator |
|---|---|---|---|
| Type: | Ore Dressing Equipment | Output: | 0.2-8 , 0.2-38 M3/min |
| Weight Kg: | 468-4486 Kg | Max.air Injection Amount: | 2 M3/㎡·min |
| Impeller Diameter Mm: | 300 Mm | Impeller Rotation Speed R/min: | 191-400 R/min |
| High Light: | High Efficiency Flotation Machine,Rocks Washing Separation Flotation Machine,High Efficiency Flotation Separator |
||

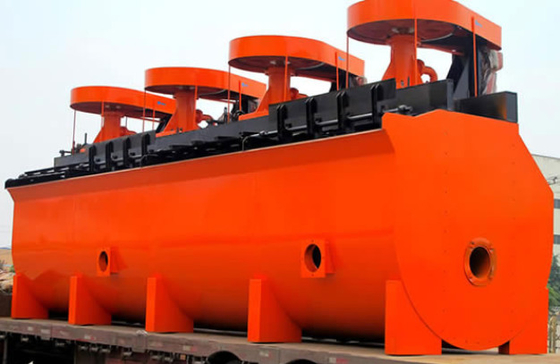

Flotation Machine For Rocks Particle Minerals Washing And Separation
1. Working principle of flotation machine ore dressing equipment
When the flotation machine is working, with the rotation of the impeller, the pulp in the tank is sucked from the bottom of the impeller to the impeller blade, and the low-pressure air given by the blower is also entered into the hollow shaft and the air distributor of the impeller. After the pulp and air are fully mixed between the blades, it is pushed out from the upper part of the impeller on the syncline, and enters the whole tank after stator steady flow and orientation. The bubble rises to the foam stability zone, and after enrichment, the foam overflows from the overflow weir and enters the foam tank. Part of the pulp flows to the lower part of the impeller, and then it is stirred by the impeller to remix and form mineralized bubbles. The remaining pulp flows to the next tank until it finally becomes tailings.
2. Use and maintenance of flotation machine ore dressing equipment
(1) The working capacity and working hours of the flotation machine like other machines are determined by maintenance and the main part of the normal working part of all 3-4 months of work has been carefully checked, but in the first few months of the new flotation machine's work should be checked frequently;
(2) Only skilled personnel can carry out the inspection.
(3) In order to ensure timely replacement of wearing parts and reduce downtime, we must always keep a complete set of parts in the warehouse. According to different circumstances, to determine the use date and reserves of wearing parts.
(4) It is necessary to ensure that the operator of the flotation machine is given some technical guidance and training so that he is fully familiar with the machine.

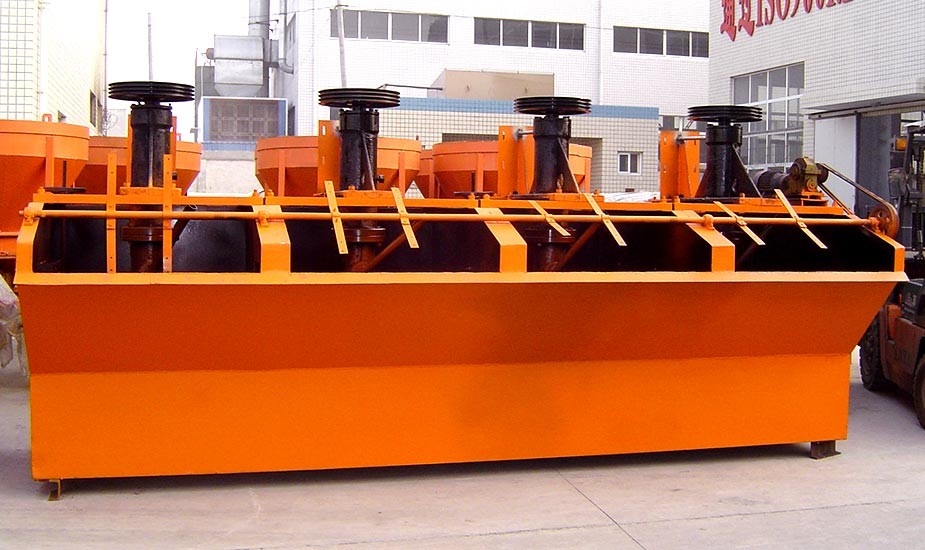

Flotation Machine For Rocks Particle Minerals Washing And Separation
3. Technical parameters of flotation machine Ore dressing equipment
Ore dressing equipment Technical data: XJM Flotation Machine
| Model | XJM-1 | XJM-2 | XJM-3 | XJM-4 | XJM-8 | XJM-16 | XJM-24 | XJM-38 | |
| Chute dimensions | Length (mm) | 1000 | 1300 | 1600 | 1800 | 2200 | 2800 | 3100 | 3600 |
| Width (mm) | 1000 | 1300 | 1600 | 1800 | 2200 | 2800 | 3100 | 3600 | |
| Height (mm) | 1100 | 1250 | 1400 | 1500 | 1950 | 2400 | 10819 | 3400 | |
| Single effective weight (kg) | 1154 | 1659 | 2259 | 2669 | 3868 | 6520 | 8000 | 16790 | |
| Effective cubage (m3) | 1 | 2 | 3 | 4 | 8 | 16 | 24 | 38 | |
| Production capacity(calculated by slurry volume) (m3/min) | 0.2-1 | 0.4-2 | 0.6-3 | 1.2-4 | 3-8 | 4-16 | 4-24 | 10-38 | |
| Main shaft motor | Model | Y132M2-6 | Y160M-6 | Y160L-6 | Y180L-6 | Y200L2-6 | Y280S-8 | Y280S-8 | Y280S-6 |
| Power (kw) | 5.5 | 7.5 | 11 | 15 | 22 | 37 | 37 | 45 | |
| Impeller | |||||||||
| Rotation speed (r/min) | 960 | 970 | 970 | 970 | 970 | 740 | 740 | 980 - |
|
| Diameter (mm) | 400 | 460 | 540 | 620 | 720 | 860 | 950 | ||
| Height (mm) | 155 | 175 | 207 | 247 | 321 | 349 | - | - | |
| Rotation speed (r/min) | 358 | 331 | 266 | 215 | 185 | 160 | 153 | - | |
| Circular velocity (m/s) | 7.5 | 7.5 | 7.5 | 7 | 6.97 | 7.6 | 7.6 | 7.4 | |
| Loam board motor | Model | Y90S-4 | Y90S-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 |
| Power (kw) | 1.1 | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Rotation speed (r/min) | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | |
| Loam board | Rotation speed (r/min) | 18 | 18 | 16 | 16 | 16 | 16 | 16 | 16 |
| Diameter (mm) | 500 | 500 | 580 | 600 | 600 | 700 | 700 | 700 | |
| Wind pressure of fan (kpa) | ≥12.6 | ≥14.7 | ≥19.8 | ≥19.8 | ≥21.6 | ≥25.5 | ≥30.4 | ≥34.3 | |
| Max.air injection amount (m3/㎡·min) | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
Flotation Machine For Rocks Particle Minerals Washing And Separation
