| Model: | XJM Flotation Machine | Product Name: | Flotation Separator |
|---|---|---|---|
| Type: | Ore Dressing Equipment | Weight: | 468-4486 Kg |
| Impeller Rotation Speed: | 191-400 R/min | Color: | Custom |
| Warranty: | 12 Months | Port: | QingDao,ShangHai,TianJin |
| High Light: | Ore Processing Plant Flotation Separator,Flotation Separator 400r/Min,flotation machine 400r/Min |
||

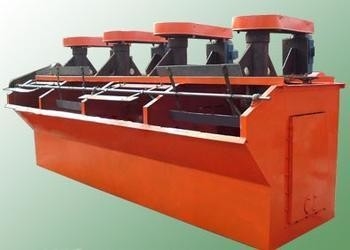

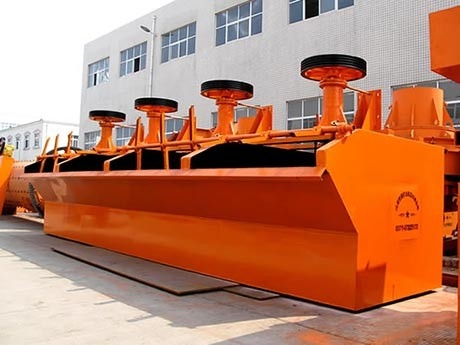

Ore Dressing Equipment Lead Zinc Ore Mineral Processing Plant Flotation Separator
1. Characteristics of flotation machine ore dressing equipment:
Flotation machine has the following characteristics: large suction capacity, low power consumption. Each slot has a triple function of suction, pulping and flotation, with its own flotation loop, without any auxiliary equipment, configuration level, easy to change the process.
2. Working principle of flotation machine ore dressing equipment
When the flotation machine is working, with the rotation of the impeller, the pulp in the tank is sucked from the bottom of the impeller to the impeller blade, and the low-pressure air given by the blower is also entered into the hollow shaft and the air distributor of the impeller. After the pulp and air are fully mixed between the blades, it is pushed out from the upper part of the impeller on the syncline, and enters the whole tank after stator steady flow and orientation. The bubble rises to the foam stability zone, and after enrichment, the foam overflows from the overflow weir and enters the foam tank. Part of the pulp flows to the lower part of the impeller, and then it is stirred by the impeller to remix and form mineralized bubbles. The remaining pulp flows to the next tank until it finally becomes tailings.
Ore Dressing Equipment Lead Zinc Ore Mineral Processing Plant Flotation Separator
3. Technical parameters of flotation machine Ore dressing equipment
Ore dressing equipment Technical data: XJM Flotation Machine
| Model | XJM-1 | XJM-2 | XJM-3 | XJM-4 | XJM-8 | XJM-16 | XJM-24 | XJM-38 | |
| Chute dimensions | Length (mm) | 1000 | 1300 | 1600 | 1800 | 2200 | 2800 | 3100 | 3600 |
| Width (mm) | 1000 | 1300 | 1600 | 1800 | 2200 | 2800 | 3100 | 3600 | |
| Height (mm) | 1100 | 1250 | 1400 | 1500 | 1950 | 2400 | 10819 | 3400 | |
| Single effective weight (kg) | 1154 | 1659 | 2259 | 2669 | 3868 | 6520 | 8000 | 16790 | |
| Effective cubage (m3) | 1 | 2 | 3 | 4 | 8 | 16 | 24 | 38 | |
| Production capacity(calculated by slurry volume) (m3/min) | 0.2-1 | 0.4-2 | 0.6-3 | 1.2-4 | 3-8 | 4-16 | 4-24 | 10-38 | |
| Main shaft motor | Model | Y132M2-6 | Y160M-6 | Y160L-6 | Y180L-6 | Y200L2-6 | Y280S-8 | Y280S-8 | Y280S-6 |
| Power (kw) | 5.5 | 7.5 | 11 | 15 | 22 | 37 | 37 | 45 | |
| Impeller | |||||||||
| Rotation speed (r/min) | 960 | 970 | 970 | 970 | 970 | 740 | 740 | 980 - |
|
| Diameter (mm) | 400 | 460 | 540 | 620 | 720 | 860 | 950 | ||
| Height (mm) | 155 | 175 | 207 | 247 | 321 | 349 | - | - | |
| Rotation speed (r/min) | 358 | 331 | 266 | 215 | 185 | 160 | 153 | - | |
| Circular velocity (m/s) | 7.5 | 7.5 | 7.5 | 7 | 6.97 | 7.6 | 7.6 | 7.4 | |
| Loam board motor | Model | Y90S-4 | Y90S-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 | Y90L-4 |
| Power (kw) | 1.1 | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Rotation speed (r/min) | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | |
| Loam board | Rotation speed (r/min) | 18 | 18 | 16 | 16 | 16 | 16 | 16 | 16 |
| Diameter (mm) | 500 | 500 | 580 | 600 | 600 | 700 | 700 | 700 | |
| Wind pressure of fan (kpa) | ≥12.6 | ≥14.7 | ≥19.8 | ≥19.8 | ≥21.6 | ≥25.5 | ≥30.4 | ≥34.3 | |
| Max.air injection amount (m3/㎡·min) | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
