| Name: | Spiral Chute Separator | Feeding Size: | 0.3-0.02 Mm |
|---|---|---|---|
| Applicationht Chlorine Plastic: | Sorting Iron, Tin, Tungsten, Tantalum, Niobium, Gold, Coal | External Diameter: | 400-1200 Mm |
| Feature: | Simple Structure, No Moving Parts, Light Weight, No Noise | Ore Feeding Concentration: | 25-55 % |
| Model: | 5LL Series Spiral Chute | Capacity: | 0.15-6 T/h |
| High Light: | High Performance Spiral Chute Separator,0.03mm Feeding Spiral Chute Separator,0.03mm Feeding Spiral concentrator |
||
Spiral Chute Separator And Ore Dressing Equipment With Feeding Size 0.3-0.03mm
1. Structural characteristics of spiral chute Ore Dressing Equipment :
Glass fiber reinforced plastic spiral chute is composed of six parts: ore feeder, ore feeder, spiral groove, product intercepting groove, product gathering bucket and groove bracket (including cross or tripod). The spiral groove connected by the spiral sheet is the main component. The spiral plates are made of glass reinforced plastic (fiberglass reinforced plastic) and bolted together. The selective surface of the spiral groove has a prefabricated wear-resistant layer. The beneficiation equipment has the advantages of light, strong and durable. A multi-tube ore feeder is arranged above the spiral groove, and the ore is evenly divided and easy to control.
The evenly divided pulp is slowly fed to the spiral groove surface by feeding the orange. The end of the spiral groove is equipped with a valve block type product intercepting groove to divide the sorted ore flow into several products according to grade. Use the control valve block position to change the width of each product interception. The ore hopper is a core ring cylinder, which collects and exports the intercepted ore flow according to the product.
The cross section of the spiral groove is a cubic parabola. The change of slope of the curve is especially suitable for the selection of fine grained materials. Spiral chute has the advantages of simple structure, no moving parts, easy manufacture, light weight, convenient configuration, installation and maintenance.

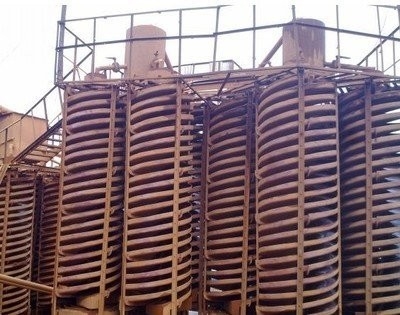

Spiral Chute Separator And Ore Dressing Equipment With Feeding Size 0.3-0.03mm
2. Working characteristics of spiral chute Ore Dressing Equipment :
The working characteristic of spiral chute is that the fine, middle and tailings are intercepted respectively at the end of the trough, and no washing water is added in the sorting process. The spiral groove is the main part of the equipment, which is made of glass steel spiral plates connected by bolts. The inner surface of the spiral groove is coated with a wear-resistant lining, usually polyurethane wear-resistant adhesive or epoxy resin mixed with artificial emery. A wear-resistant layer containing diabase powder was applied to the inner surface of the spiral groove. Above the spiral groove is a ore separator and a ore feed groove; The lower part has a product interceptor and a chute. The whole equipment is set up vertically with channel steel. Spiral Chute Separator And Ore Dressing Equipment With Feeding Size 0.3-0.03mm
3. Spiral chute product parameters of Ore Dressing Equipment
| Model | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 | |
| Outer diameter (mm) | 1200 | 900 | 600 | 400 | |
| Pitch (mm) | 900 ,720 , 540 | 675 , 540 , 405 | 450 , 360 , 270 | 240 , 180 | |
| Pitch to diameter ratio (pitch/diameter) | 0,75 , 0.6 , 0.45 | 0.75 , 0.6 , 0.45 | 0.75 , 0.6 , 0.45 | 0.6 , 0.45 | |
| Transverse Angle (degree) | 9° | 9° | 9° | 9° | |
|
Each most Number of mounting screws |
4 | 4 | 3 | 2 | |
| Feeding size (mm) | 0.3-.0.03 | 0.3-.0.03 | 0.2-0.02 | 0.2-0.02 | |
| Ore feeding concentration (%) | 25-55 | 25-55 | 25-55 | 25-55 | |
| Production capacity (ton/hour) | 4-6 | 2-3 | 0.8-1.2 | 0.15-0.2 | |
| Dimensions | L(mm) | 1360 | 1060 | 700 | 460 |
| W(mm) | 1360 | 1060 | 700 | 460 | |
| H(mm) | 5230 | 4000 | 2600 | 1500 | |
| Weight(kg) | 600 | 400 | 150 | 50 | |
Spiral Chute Separator And Ore Dressing Equipment With Feeding Size 0.3-0.03mm
