Product Details:
Payment & Shipping Terms:
|
| Type: | TCL Decanting Centrifuge | Drum Length(mm0: | 1722-3350 Mm |
|---|---|---|---|
| Large End Diameter Of Drum9mm): | 900-1100 Mm | Material: | Flotation Concentrate |
| Feed Concentration: | 25~35% | Main Motor Power: | Max 300 Kw |
| Classification: | Ore Dressing Equipment | Warranty: | 12 Months |
| High Light: | Flotation Concentrate Industrial Centrifugal Filters,300kw Industrial Centrifugal Filters,ISO Industrial Centrifugal Filters |
||

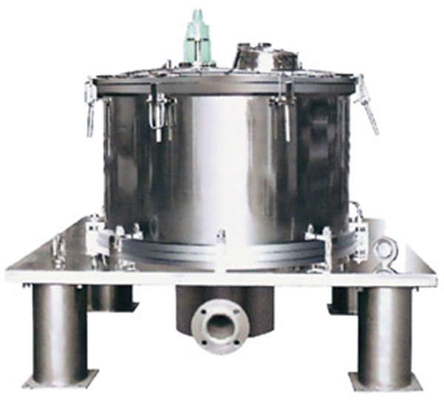

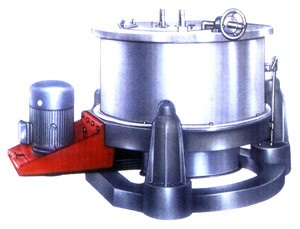

Industrial Centrifugal Filters Decanting Centrifuge Ore Dressing Equipment
1. Product introduction of sedimentation centrifuge Ore Dressing Equipment
Sedimentation centrifuge is a new type of horizontal spiral unloading centrifuge, its working principle is the use of solid-liquid specific gravity difference, and rely on centrifugal force field to expand thousands of times, the solid phase is sedimentation under the action of centrifugal force, so as to achieve solid-liquid separation, and under the action of a special mechanism, respectively discharged from the body. When the centrifugal filtration because of solid particles easy to plug the filter medium and filter resistance is too large or too much fine particles leakage, the filter centrifuge can not achieve the ideal separation effect, at this time the sedimentation centrifuge has the incomparable advantages of the filter. The solid particles with small particle size can be separated from the liquid phase by centrifugal sedimentation principle.
2. TCL, TC series sedimentation centrifuge technical performance: Ore Dressing Equipment
| Item | Unit | Model | |||||||
| TCL-0918 | TCL-0924 | TCL-1134 | TCL-1418B | TCL-0924 | TCL-1134 | ||||
| Diameter of big end of drum | mm | 900 | 1104 | 1358 | 900 | 1100 | |||
| Drum length | mm | 1722 | 3212 | 1868 | 2440 | 3350 | |||
| Drum speed | r/min | 800;1000 | 900;1100;1300 | 480;550;650 | 1000 | 850 | |||
| Main motor power | Kw | 100 | 300 | 190 | 110 | 300 | |||
| Handle material | Flotation cleaned coal | Flotation cleaned coal | Flotation cleaned coal | Pipeline coal | Flotation cleaned coal | Wast coal | Wast coal | ||
| Feed material concentration | % | 25～35 | 25～35 | ≥30 | 50 | 25～35 | |||
|
Processing capacity (Dry materials) |
t/h | 10～20 | 15～25 | 40～50 | 50～60 | 10～25 | 15～30 | ||
| Product water | % | 15～20 | 15～20 | 15～20 | 13～20 | 30～35 | 30～35 | ||
| Dimension | L | mm | 4.04 | 4.64 | 9.22 | 470 | 4.82 | ||
| W | mm | 3.5 | 3.28 | 2.96 | 3.996 | 2.9 | |||
| H | mm | 1.47 | 1.47 | 2.47 | 2.05 | 1.46 | |||
| Machine weight | t | 11.34 | 11.9 | 24 | 18 | 13 | |||
3. Drum structure and feeding mode Ore Dressing Equipment
According to the research data of centrifuge developed abroad in recent years, the structure of rotary drum has positive cup type and inverted cup type, and the corresponding feeding modes are up feed mode and down feed mode. Scientific research machines and engineering machines in our country use inverted cup drum and feed system. The advantages are that the length of the main shaft is shortened, the superstructure is simplified, the slag discharge is smooth, and there is less pollution above the operation. The process pipeline is centrally arranged under the drum, which is conducive to the lifting, maintenance and solution of α seal of the drum.
