Product Details:
Payment & Shipping Terms:
|
| Modle: | XB Serise Mixing Barrel | Condition: | New |
|---|---|---|---|
| Applicable: | Mining, Metallurgy, Pharmaceutical | Color: | Custom |
| Tank Diameter: | 70-3500 Mm | Weight: | 228-7110 Kg |
| Motor Power: | 1.1-22 Kw | Mixer Diameter: | 3240-850 Mm |
| Mixer Speed: | 200-530 R/min | Warranty: | 12 Months |
| Type: | Ore Dressing Equipment | Port: | QingDao,ShangHai,TianJin |
| High Light: | Acid resistant Mining Mixer,Acid resistant mineral processing machine,Mining Mixer 530r/Min |
||

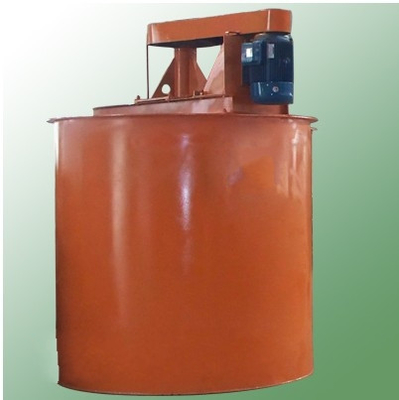

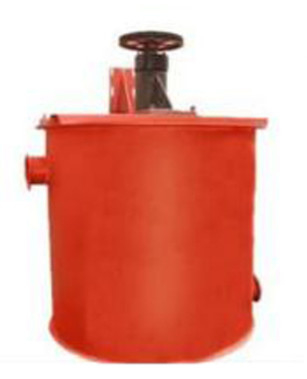

High Quality Powder Mixer Of Ore Dressing Equipment Mineral Mixer
1. Working principle of dressing mixing barrel ore dressing equipment
Mineral mixer is driven by the motor triangle belt rotating impeller, the drug and pulp fully mixed evenly, increase the reaction time of the drug to strengthen the quality of the drug reaction equipment, this machine is suitable for mining, can also be used as a variety of chemical industry trough cake stirring.
It is used for concentration not greater than 30% (by weight) fixed component particle size less than 1mm It is in the form of a flat-bottomed barrel radial cycle spiral turbomachinery stirring type. Before use, tighten the bolts of the pump body, rotate the pump shaft to check whether the replacement wheel is flexible, and then start the machine to run, and other flotation machines. Wear parts: impeller, stator.
2. Characteristics of Mineral mixer ore dressing equipment
1) Acid and alkali resistant, lightweight and corrosion resistant.
2) Low cost, small speculation suitable for small and medium-sized mineral processing enterprises.
3) Compact and lightweight, easy to operate without standing area, economical and practical.
4) It is 3-5 times more durable than the conventional iron mixing bucket.
3. Advantages of this Mineral mixer ore dressing equipment
This machine is a flat - bottom barrel - type spiral turbomachinery. Tighten the bolt on the pump body before use. Rotate the pump shaft and replace the wheel to ensure that it is flexible.
4. Product parameters of Mineral mixer of ore dressing equipment
| Item | Internal dimensions of the tank | Effective volume(m3) | Mixer | Motor | Weight (kg) | |||
| Diameter(mm) | Depth(mm) | Diameter(mm) | Speed(r/min) | Model | Power (KW) | |||
| XB-750 | 750 | 750 | 0.26 | 240 | 530 | Y90S-4 | 1.1 | 228 |
| XB-1000 | 1000 | 1000 | 0.58 | 240 | 530 | Y90L-4 | 1.5 | 436 |
| XB-1200 | 1200 | 1200 | 1.14 | 400 | 320 | Y100L2-4 | 3 | 765 |
| XB-1500 | 1500 | 1500 | 2.2 | 400 | 320 | Y100L2-4 | 3 | 1083 |
| XB-2000 | 2000 | 2000 | 5.46 | 550 | 230 | Y132M2-6 | 5.5 | 1671 |
| XB-2500 | 2500 | 2500 | 11.2 | 650 | 200 | Y160L-6 | 11 | 3438 |
| XB-3000 | 3000 | 3000 | 19.1 | 700 | 210 | Y225S-8 | 18.5 | 4613 |
| XB-3500 | 3500 | 3500 | 30 | 850 | 230 | Y225M-8 | 22 | 7110 |
