Product Details:
Payment & Shipping Terms:
|
| Model: | XB Serise Mineral Mixer | Suitable: | Mining, Metallurgy, Pharmaceutical |
|---|---|---|---|
| Tank Diameter: | 70-3500 Mm | Mixer Diameter: | 3240-850 Mm |
| Mixer Speed: | 200-530 R/min | Warranty: | 12 Months |
| Classification: | Ore Dressing Equipment | Port: | QingDao,ShangHai,TianJin |
| High Light: | 3500mm Mining Agitator,3500mm Agitator Mixing Tank,Mining Agitator Alkali Resistant |
||

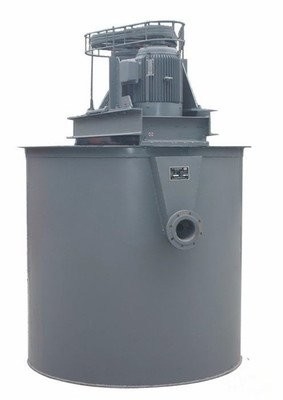

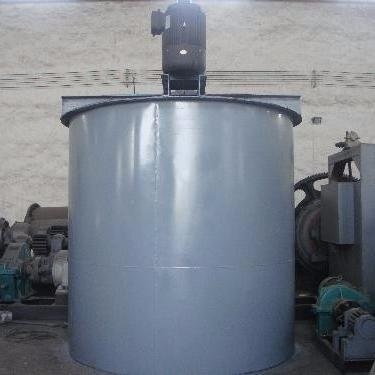

Mining Mixing Tank With Agitator Mineral Mixer Of Ore Dressing Equipment
1.Mineral mixer of ore dressing equipment
Mineral mixer is driven by the motor triangle belt rotating impeller, so as to dilute the pulp, can reach the concentration ratio of the next beneficiation process, this machine is suitable for mining, can also be used for various chemical industry. In the beneficiation process often see such as: used in the gravity separation process before the mortar pump, used to dilute the material in order to achieve the suction concentration of the mortar pump.
2. Instructions for use of Mineral mixer ore dressing equipment
Before use, first tighten the bolts of the pump body, rotate the pump shaft to ensure that the replacement wheel is flexible, and then start up and run. Vulnerable parts: impeller and stator.
3. Characteristics of Mineral mixer ore dressing equipment
1) Acid and alkali resistant, lightweight and corrosion resistant.
2) Low cost, small speculation suitable for small and medium-sized mineral processing enterprises.
3) Compact and lightweight, easy to operate without standing area, economical and practical.
4) It is 3-5 times more durable than the conventional iron mixing bucket.
4. Product parameters of Mineral mixer of ore dressing equipment
| Item | Internal dimensions of the tank | Effective volume(m3) | Mixer | Motor | Weight (kg) | |||
| Diameter(mm) | Depth(mm) | Diameter(mm) | Speed(r/min) | Model | Power (KW) | |||
| XB-750 | 750 | 750 | 0.26 | 240 | 530 | Y90S-4 | 1.1 | 228 |
| XB-1000 | 1000 | 1000 | 0.58 | 240 | 530 | Y90L-4 | 1.5 | 436 |
| XB-1200 | 1200 | 1200 | 1.14 | 400 | 320 | Y100L2-4 | 3 | 765 |
| XB-1500 | 1500 | 1500 | 2.2 | 400 | 320 | Y100L2-4 | 3 | 1083 |
| XB-2000 | 2000 | 2000 | 5.46 | 550 | 230 | Y132M2-6 | 5.5 | 1671 |
| XB-2500 | 2500 | 2500 | 11.2 | 650 | 200 | Y160L-6 | 11 | 3438 |
| XB-3000 | 3000 | 3000 | 19.1 | 700 | 210 | Y225S-8 | 18.5 | 4613 |
| XB-3500 | 3500 | 3500 | 30 | 850 | 230 | Y225M-8 | 22 | 7110 |
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
