Stable Performance Ore Dressing Equipment Sand Washing Machine 13-38RPM

Stable Performance Ore Dressing Equipment Sand Washing Machine 13-38RPM
Stable Performance Ore Dressing Equipment Sand Washing Machine 13-38RPM Stable Performance Ore Dressing Equipment Sand Washing Machine 13-38RPM Stable Performance Ore Dressing Equipment Sand Washing Machine 13-38RPM

Large Image :  Stable Performance Ore Dressing Equipment Sand Washing Machine 13-38RPM

Product Details:
Place of Origin: Henan, China
Brand Name: ZTIC
Certification: ISO /CE
Model Number: Ore Dressing Equipment
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: negotiable
Packaging Details: Simple packaging
Supply Ability: 1000 Set/Sets per Year
Detailed Product Description
Product: Sand Washing Machine Name: Sand Washer
Condition: New XS Series Capacity(t/h): 20-180 T/h
Used: For Washing And Dehydration Of Construction Sand And Stone Materials XS Series Speed: 0.8-1.2 Rpm
WCD Series Washing Size: ≤10mm Type: Ore Dressing Equipment
Warranty: 12 Months Color: Custom
High Light:

38RPM Sand Washing Machine

,

Stable Performance Sand Washing Machine

,

Stable Performance Ore Dressing Equipment

Ore Dressing Equipment Sand Washing Machine With Stable Performance



1. Product description of ore dressing equipment sand washing machine

Sand washing machine is mainly used in sand and stone field, mining, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station and other industries to wash materials. Generally used as the supporting equipment of sand and stone production line.

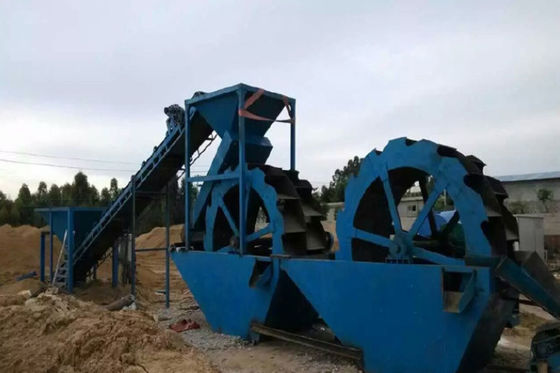

(1) XS series sand and stone washing machine is a wheel bucket type washing equipment. Mainly used for washing and dehydration of building sand and stone.

It is mainly used for washing, classification and dehydration of sand and stone in construction site, sand and stone factory, concrete dam site of hydropower station, post and telecommunications pole factory, quartz sand in glass factory and pressure sand for oil well backfilling.

(2) Spiral sand washing machine is formed in the lower part of the inclined arrangement of the sink sedimentation tank, drive the bolt rotation, from the bottom of the sedimentation tank into the cleaning water, so as to complete the three functions of cleaning, dehydration and classification. Spiral sand washing machine is suitable for washing, grading and impurity removal in metallurgy, building materials, hydropower and other industries, and is used for washing fine-grained and coarse-grained materials. It is suitable for building sand and road sand. Spiral sand washing machine power consumption is small, high cleaning degree. Good sealing structure, fully closed transmission device, adjustable weir plate, to ensure that the product efficient, durable, cleaning, dehydration effect is good, fine products to maintain stability and other characteristics.



2. Working principle of ore dressing equipment sand washing machine

In the production operation, the motor drives the impeller to rotate slowly after decelerating through the triangle belt, reducer and gear. The sand and stone enter the washing tank from the feeding tank, roll under the drive of the impeller, and grind each other to remove the impurities covering the surface of the sand and stone, and destroy the water vapor layer covering the sand, so as to facilitate dehydration; At the same time, add water to form a strong water flow, timely take away impurities and foreign bodies with small proportion, and discharge from the overflow outlet washing tank to complete the cleaning effect. Clean sand is taken away by the blade, and then the sand is poured into the discharge trough from the rotating impeller to complete the cleaning function of the sand and stone.



3. Advantages of ore dressing equipment sand washing machine

(1) Stable performance:

Simple structure stable performance, compact structure, large production.

(2) Product quality, uniform particles:

When washing sand, the loss of medium fine sand and stone powder is very little, and the sand washing is cleaner.

(3) Low failure rate:

Wear resistant parts, low failure rate, long service life.

(4) Low maintenance rate and cost reduction:

The sand washing machine has a long service life and rarely needs maintenance, so the cost can be greatly reduced.

(5) High automation, safety and reliability:

Automatic detection, safe and reliable, set vibration display and alarm device, if the equipment occurs bad operation, can issue a warning, so that the equipment stops working, to protect the purpose of the machine.



4.Product parameters of ore dressing equipment sand washing machine

(1)XS series sand and stone washing machine ore dressing equipment

SPEC XS2600 XS2600Ⅱ XS2800 XS3200 XS3600
Wheel bucket diameter(mm) 2600 2600 2800 3200 3600
Speed(rpm) 0.8-1.2 0.8-1.2 0.8-1.2 0.8-1.2 0.8-1.2
Processing capacity(t/h) 20-50 30-70 50-100 80-120 120-180
Motor power(kw) 5.5 5.5 7.5 11 15

(2)WCD series sand and stone washing machine ore dressing equipment
Model WCD-1500 WCD-1118 WCD-914 WCD-762 WCD-610 WCD-508
Screw diameter (mm) 1500 1118 914 762 610 508
Tank length (mm) 10512 9554 7815 7620 7225 6705
Washing size (mm) ≤10 ≤10 ≤10 ≤10 ≤10 ≤10
Production capacity (t/h) 130~220 100~175 75~100 50~75 40~50 20
Screw speed (RPM) 13 18 20 26 32 38
Motor power (KW) 18.5 15 11 11 7.5 5.5
Water consumption (t/h) 14~190 20~168 10~80 9~63 6~63 6~60
Machine weight (t) 16.5 8.6 6.5 5.2 3.8 2.6

Model 2WCD-1118 2WCD-914 2WCD-762
Screw diameter (mm) 1118 914 762
Tank length (mm) 9325 6886 6886
Washing size (mm) ≤10 ≤10 ≤10
Production capacity (t/h) 200~300 150~200 100~145
Screw speed (RMP) 17 21 26
Motor power (KW) 2*15 2*11 2*11
Water consumption (t/h) 200~250 120~150 136~182
Machine weight (t) 19.8 13.5 8.1


Stable Performance Ore Dressing Equipment Sand Washing Machine 13-38RPM 0

Stable Performance Ore Dressing Equipment Sand Washing Machine 13-38RPM 1
