Product Details:
Payment & Shipping Terms:
|
| Name: | 2WCD-1118 Sand Washer | Condition: | New |
|---|---|---|---|
| Production Capacity (t/h): | 200-300 | Screw Speed (RMP): | 17 |
| Motor Power (KW): | 2*15 | Water Consumption (t/h): | 14-190 |
| Type: | Ore Dressing Equipment | Warranty: | 12 Months |
| High Light: | High Automation Sand Washer Machine,High Automation Ore Dressing Equipment,Sand Washer Machine 300t/H |
||

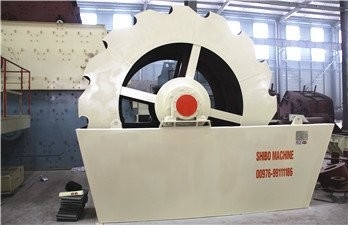

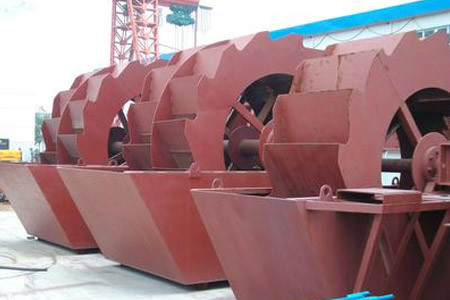

High Automation And Reliability Ore Dressing Equipment Sand Washer
1. Product description of ore dressing equipment sand washing machine
Sand washing machine is mainly used in sand and stone field, mining, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station and other industries to wash materials. Generally used as the supporting equipment of sand and stone production line.
2. Advantages of ore dressing equipment sand washing machine
(1) Stable performance:
Simple structure stable performance, compact structure, large production.
(2) Product quality, uniform particles:
When washing sand, the loss of medium fine sand and stone powder is very little, and the sand washing is cleaner.
(3) Low failure rate:
Wear resistant parts, low failure rate, long service life.
(4) Low maintenance rate and cost reduction:
The sand washing machine has a long service life and rarely needs maintenance, so the cost can be greatly reduced.
(5) High automation, safety and reliability:
Automatic detection, safe and reliable, set vibration display and alarm device, if the equipment occurs bad operation, can issue a warning, so that the equipment stops working, to protect the purpose of the machine.
3. Product parameters of ore dressing equipment sand washing machine
(1)XS series sand and stone washing machine ore dressing equipment
| SPEC | XS2600 | XS2600Ⅱ | XS2800 | XS3200 | XS3600 |
| Wheel bucket diameter(mm) | 2600 | 2600 | 2800 | 3200 | 3600 |
| Speed(rpm) | 0.8-1.2 | 0.8-1.2 | 0.8-1.2 | 0.8-1.2 | 0.8-1.2 |
| Processing capacity(t/h) | 20-50 | 30-70 | 50-100 | 80-120 | 120-180 |
| Motor power(kw) | 5.5 | 5.5 | 7.5 | 11 | 15 |
| Model | WCD-1500 | WCD-1118 | WCD-914 | WCD-762 | WCD-610 | WCD-508 |
| Screw diameter (mm) | 1500 | 1118 | 914 | 762 | 610 | 508 |
| Tank length (mm) | 10512 | 9554 | 7815 | 7620 | 7225 | 6705 |
| Washing size (mm) | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 |
| Production capacity (t/h) | 130～220 | 100～175 | 75～100 | 50～75 | 40～50 | 20 |
| Screw speed (RPM) | 13 | 18 | 20 | 26 | 32 | 38 |
| Motor power (KW) | 18.5 | 15 | 11 | 11 | 7.5 | 5.5 |
| Water consumption (t/h) | 14～190 | 20～168 | 10～80 | 9～63 | 6～63 | 6～60 |
| Machine weight (t) | 16.5 | 8.6 | 6.5 | 5.2 | 3.8 | 2.6 |
| Model | 2WCD-1118 | 2WCD-914 | 2WCD-762 |
| Screw diameter (mm) | 1118 | 914 | 762 |
| Tank length (mm) | 9325 | 6886 | 6886 |
| Washing size (mm) | ≤10 | ≤10 | ≤10 |
| Production capacity (t/h) | 200～300 | 150～200 | 100～145 |
| Screw speed (RMP) | 17 | 21 | 26 |
| Motor power (KW) | 2*15 | 2*11 | 2*11 |
| Water consumption (t/h) | 200～250 | 120～150 | 136～182 |
| Machine weight (t) | 19.8 | 13.5 | 8.1 |
