Product Details:
Payment & Shipping Terms:
|
| Type: | High-efficiency Probability Screen | Model: | GS Series |
|---|---|---|---|
| Capacity(t/h): | 60-350tph | Appliacation: | Multi-stage Screening And Dry Material Operation |
| Screen Size: | 1.0*1.4-3.0*2.5(m) | Installed Power: | 2.25-30 (kw) |
| Number Of Layers: | 2-6 | Classification: | Ore Dressing Equipment |
| High Light: | 350tph Vibrating Screen Machine,350tph sand vibrating screen,Vibrating Screen Machine 6layers |
||

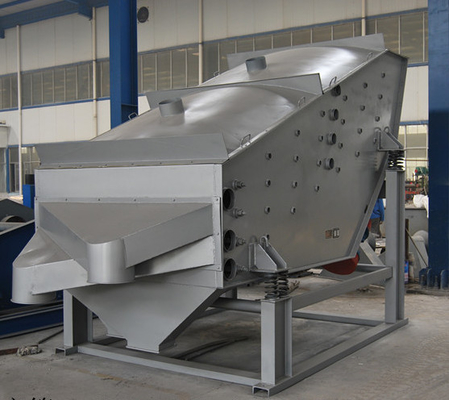

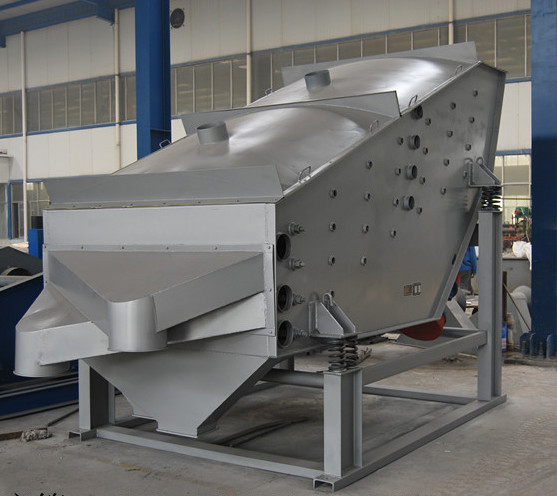

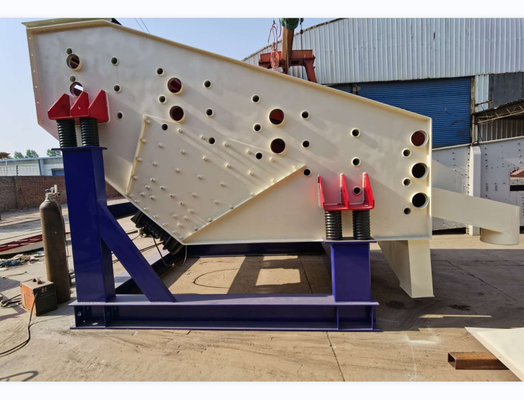

Probability Vibrating Screen Machine Used For Sand Sifter Gravel
1. Probability screen advantages of Probability Screen for Ore Dressing Equipment:
High finished product qualification rate
Low energy consumption
High screening efficiency and large processing capacity
Easy to replace the screen
The screen does not block holes
Small size and many grain types
Overall sealing, environmental protection and energy saving
Easy to use and maintain
Save space
Low working noise and good shock absorption effect
Long equipment life and low failure rate
Series of products have strong versatility for wearing parts
Fast fastener
Compound shock absorption
High-quality dedicated screen
Special rubber strip anti-leakage material
Quick access hole
Quickly replace the screen
2. Technical parameters of Probability Screen for Ore Dressing Equipment
|
Model |
Number of layers |
Screen size(m) |
Screening size range(mm) |
Installed power(kw) |
Processing capacity(t/h) |
Max. size(m) |
|
GS1015 |
2-6 |
1.0*1.4 |
0.075-20 |
2.25-3.7 |
60 |
2.5*1.6*2.0 |
|
GS1025 |
2-6 |
1.0*2.5 |
0.15-30 |
7.4-9 |
100 |
4.6*1.8*3.8 |
|
GS1625 |
2-6 |
1.5*2.5 |
0.2-50 |
9-14 |
160 |
4.7*2.2*3.8 |
|
GS2125 |
2-6 |
2.0*2.5 |
0.2-50 |
9-14 |
210 |
4.8*2.8*3.8 |
|
GS2625 |
2-6 |
2.5*2.5 |
0.3-50 |
22-30 |
260 |
4.9*3.5*3.8 |
|
GS3125 |
2-6 |
3.0*2.5 |
0.3-50 |
24-30 |
350 |
5.0*3.7*3.8 |
(1) The processing capacity varies with factors such as the type of screening material, particle size, gradation, moisture content, density and other factors;
(2) The typical processing capacity in the table is the reference value of limestone with a particle size of 13mm, a density of 1.6t/m³, and a moisture content of less than 2%;
(3) Under the same conditions, the time required for screening materials with probability screens is only 1/3~1/6 of that of ordinary vibrating linear screens, and the processing capacity per unit area of the screen is 5-10 times larger than that of ordinary vibrating linear screens ；
(4) The manufacturer reserves the right to revise the technical parameters, please contact our company for details.
3. Application of probability screen in complete refractory processing system
(1) Advanced concepts, integrated design, standardized production, efficient installation, intelligent control and integrated operation;
(2) Save land and factory, reduce the space occupied by the entire production process, and have high economic performance;
(3) Centralized dust removal, good dust removal effect, actively responding to national environmental protection policies, and fully meeting national emission standards;
(4) Improve production efficiency and reduce labor. Compared with the traditional method, the material conveying path is shortened, automatic production is realized, and the efficiency is greatly improved;
(5) Good energy saving effect. Compared with traditional methods, it consumes less power and achieves higher economic benefits;
(6) The finished material contains extremely low iron content;
(7) Reasonable matching of process selection and stable production and operation;
(8) The complete set of building station processing technology systems that are matched with equipment such as multi-layer high-efficiency probability screens and vertical plastic sand making machines developed by our company are a perfect combination;
(9) Compared with the ordinary refractory production system, the output per hour can be doubled;
(10) Standardized combined production tailors a suitable process system for customers.
