Product Details:
Payment & Shipping Terms:
|
| Name: | Disk Filter | Filter Area: | 40m²~120m² |
|---|---|---|---|
| Product Water: | 22-24% | Feature: | Stable Performance |
| Usage: | Metallurgy, Chemical Industry, Petroleum And Sewage Treatment | Main Motor Power: | 2.2/4 KW |
| Classification: | Ore Dressing Equipment | Keyword: | Disc Filter |
| High Light: | Chemical Industry vacuum disk filter,Metallurgy Industry Vacuum Disk Filter,4KW vacuum disc filter |
||
Ore Dressing Equipment Disk Filter For Mining, Metallurgy And Chemical Industry
1.GPY series disc filter of ore dressing equipment uses:
GPY series disc filter is mainly used for 0~0.5mm flotation cleaned coal and tail coal and other fine granular material dehydration, can also be used in metallurgy, chemical industry, petroleum, sewage treatment solid-liquid separation.
2. GPY series disc filter of ore dressing equipment technical data:
| Unit | GPY-40 | GPY-60 | GPY-80 | GPY-100 | GPY-120 | |
| Filter area | m2 | 40 | 60 | 80 | 100 | 120 |
| Dial Diameter | mm | 2700 | ||||
| Number of disk | 4 | 6 | 8 | 10 | 12 | |
| Spindle speed | r/min | 1-0.167 | 0966-0.215 | |||
| Main motor power | Kw | 2.2 | 4 | |||
| Speed of agitator | r/min | 73 | ||||
| Mixing motor Work rate | Kw | 2.2 | 4 | |||
| Feed size | Less than 0.063 mm fraction content is not more than 35-40% | |||||
| The material concentration | g/l | 250-350 | ||||
| Capacity | t/h | 8-12 | 12-18 | 16-24 | 20-30 | 24-36 |
| Product water | % | 22-24 | ||||
| Dimensions (L×W×H) | mm | 3217×3450×3275 | 4017×3450×3275 | 4817×3450×3275 | 5617×3450×3275 | 6417×3450×3275 |
| Weight | Kg | 5485 | 7736 | 8754 | 10099.4 | 11189 |

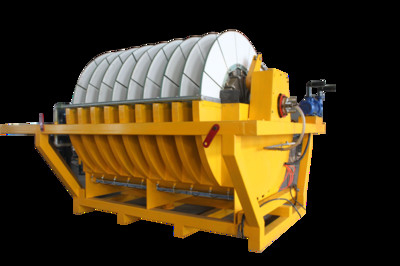

Ore Dressing Equipment Disk Filter

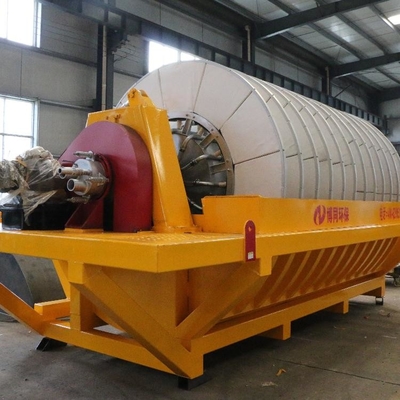

Ore Dressing Equipment Disk Filter
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
Ore Dressing Equipment Disk Filter
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
