Product Details:
Payment & Shipping Terms:
|
| Product Name: | Rotary Drum Vacuum Disc Ceramic Filter | Filter Area M²: | 40m²~120m² |
|---|---|---|---|
| Product Water: | 22-24% | Feed Size Mm: | Less Than 0.063 Mm |
| Output: | 8-36 T/h | Weight: | 5.485-11.189t |
| Model: | Ore Dressing Equipment | Keyword: | Rotary Drum Vacuum Disc Ceramic Filter |
| High Light: | Mining Industry Ceramic Vacuum Disc Filter,36t/H Ceramic Vacuum Disc Filter,36t/H mining industry equipment |
||
ZTIC Rotary Drum Vacuum Disc Ceramic Filter For Mining Industry
1. Working principle of GPY series disc filter of ore dressing equipment :
The filtration process of disc filter is: Using vacuum pump to form under the action of pressure difference, form a particle filter cake on the filter cloth, and by excluding liquid filter cloth and filter cake to solid-liquid separation, filter cake into the dry area, remove most of the water and then into the drop zone, the compressed air generated by the blower blew filter plate part of the filter cake, the rest of the filter cake by scraper discharge, a cycle is complete.
2. GPY series disc filter of ore dressing equipment technical data:
| Unit | GPY-40 | GPY-60 | GPY-80 | GPY-100 | GPY-120 | |
| Filter area | m2 | 40 | 60 | 80 | 100 | 120 |
| Dial Diameter | mm | 2700 | ||||
| Number of disk | 4 | 6 | 8 | 10 | 12 | |
| Spindle speed | r/min | 1-0.167 | 0966-0.215 | |||
| Main motor power | Kw | 2.2 | 4 | |||
| Speed of agitator | r/min | 73 | ||||
| Mixing motor Work rate | Kw | 2.2 | 4 | |||
| Feed size | Less than 0.063 mm fraction content is not more than 35-40% | |||||
| The material concentration | g/l | 250-350 | ||||
| Capacity | t/h | 8-12 | 12-18 | 16-24 | 20-30 | 24-36 |
| Product water | % | 22-24 | ||||
| Dimensions (L×W×H) | mm | 3217×3450×3275 | 4017×3450×3275 | 4817×3450×3275 | 5617×3450×3275 | 6417×3450×3275 |
| Weight | Kg | 5485 | 7736 | 8754 | 10099.4 | 11189 |

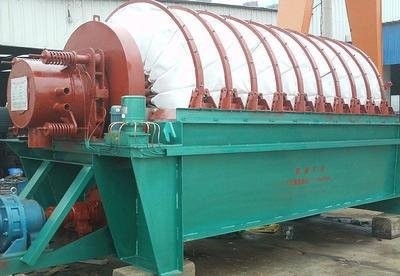

Disc filter of ore dressing equipment

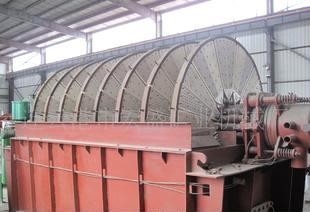

Disc filter of ore dressing equipment
Disc filter of ore dressing equipment
Company Information
Luoyang Zhongtai Industrial Co., Ltd. is located in Luoyang National University Science Park, Longyu Road, Jianxi District, Luoyang City, Henan Province. It is a professional company integrating development, design, installation, commissioning, sales and technical services of mining machinery products. Business scope includes: mining equipment, metallurgical equipment, construction equipment, construction machinery, power machinery, stone chemical equipment, electrical equipment, agricultural machinery, hydraulic equipment and accessories, refractory materials, warehouse color, casting and forging sales, mechanical equipment, energy-saving and environmental protection equipment technology research and development, consultation, installation, maintenance, project contracting. Our company has independent legal personality and foreign trade import and export business qualification, engaged in import and export business of goods and technology.
Depending on our company's strong scientific research ability and production and sales ability, relying on advanced and mature production technology in Luoyang mining machinery industry cluster area, we have cooperated with major well-known enterprises at home and abroad to provide technical services and complete sets of equipment for key projects in national mining, metallurgy, building materials, lifting, electric power, non-ferrous metals, environmental protection, chemical industry, petroleum and other industries. Spare parts. Relying on innovative technology, new products and perfect after-sales service, the company has won the trust and support of more and more domestic and foreign customers.
Disc filter of ore dressing equipment
