PProduct Name: | ZSM Series Vibrating Screen | Application: | Coal, Metallurgy, Mineral Processing, Electric Power |
---|---|---|---|
Capacity(t/h): | 60-100 T/h | Feed Size(mm): | ≤300mm |
Screen Surface Inclination: | -2~10° | Classification: | Ore Dressing Equipment |
Vibration Frequency: | 800 | Warranty: | 12 Months |
High Light: | Vibratory Screening Equipment High Efficiency,Large Capacity Vibratory Screening Equipment,Large Capacity vibrating screen equipment |

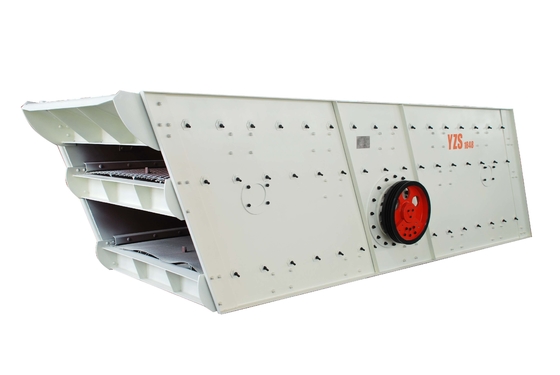

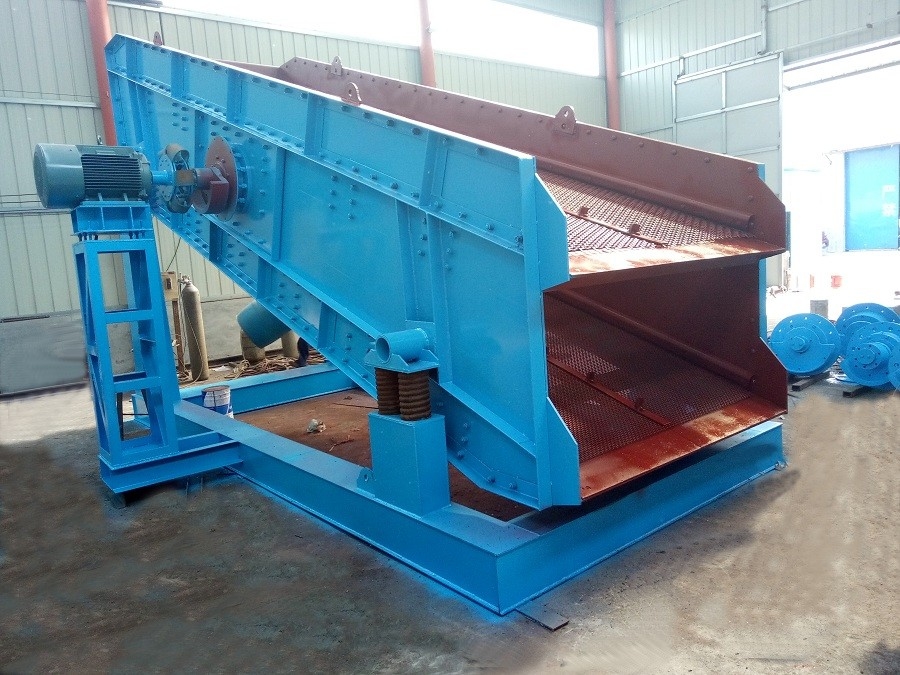

Vibrating Screen With Large Processing Capacity And High Screening Efficiency
1. ZSM series vibrating screen of ore dressing equipment product description:
USES:
This series is suitable for coal, metallurgy, mineral processing, electric power, light industry, sugar making, dewatering, mediating, desliming and classification of dry and wet materials, with the advantages of large processing capacity and high screening efficiency.
2. ZSM series vibrating screen of ore dressing equipment working principle:
(1) Sieve working principle:
Under the action of agitation force, the material on the screen surface for continuous oblique throwing movement. The material is loose when thrown up, in the collision of screen surface encounter, so that is equal to or less than the screen hole de particles through the screen, so as to achieve dehydration, support or grading.
(2) Self-synchronization principle:
B - type sieve vibrator is free of forced contact, no gear between the two shafts. In order to ensure the vibration of the screen according to the straight track, the two axes must be strictly synchronized with the opposite operation, which can be done naturally in the vibration system of the biaxial screen.
(3) Working principle of damper:
The damping vibrator is arranged as shown, in working and stopping state. The rubber block does not contact the base hole. It exerts symmetrical pressure on the screen box to keep it in a stable position to eliminate cross vibration and twist.
When the stop resonance beat, the screen box amplitude is greater than the rubber block and the base hole gap, at this time the vibration needs to overcome the dynamic friction between rubber and screen box. Because frictional damping consumes some kinetic energy, the resonance amplitude is limited to three times the operating amplitude. The damping force is adjusted by adjusting screws.
3. Product parameters of ore dressing equipment
ZSM series vibrating screen technical performance:
SPEC | Unit | Model | |||||||
zsm1556A | 2zsm1556A | zsm1756A | zsm1756B | 2zsm1756A | zsm2065A | 2zsm2065A | |||
Screen box specifications |
W | mm | 1500 | 1750 | 2000 | ||||
L | mm | 5600 | 5600 | 6500 | |||||
Capacity | t/h | ~60 | 50~80 | 70~100 | |||||
Feeding size | mm | ~300 | ~300 | ~300 | |||||
Working area | m2 | 7.5 | 7.5 | 7.5 | |||||
Screen surface numbers | layer | 1 | 2 | 1 | 2 | 1 | 2 | ||
Screen surface species |
Upper layer | mm | Slot screen plate | Perforated screen plate | Slot screen plate | Perforated screen plate | Slot screen plate | Perforated screen plate | |
Lower layer |
mm | Slot screen plate | Slot screen plate | Slot screen plate | |||||
Hole size | Upper layer | mm | 0.25,0.5,8,1.6,10,13 | 13,25,50 | 0.25,0.5,8,1.6,10,13 | 13,25,50 | 0.25,0.5,8,1.6,10,13 | 13,25,50 | |
Lower layer |
mm/rpm | 0.25~13 | 0.25~13 | 0.25~13 | |||||
Vibration frequency | 800 | 800 | 800 | ||||||
Double amplitude | mm | 11 | 10 | 9 | |||||
Mass ejection angle | ° | 45 | 45 | 45 | 45±5 | 45 | 45 | 45 | |
Screen surface inclination | ° | —2~ 10 | —2~ 10 | —2~ 10 | |||||
Motor | Type | Y160L-4 | Y160L-4 | Y160L-4 | Y160M-4 | Y160L-4 | Y180M-4 | Y180M-4 | |
Number of speed | rpm | 1460 | 1460 | 1460 | 1460 | 1460 | 1470 | 1470 | |
Power | kw | 15 | 15 | 15 | 11×2 | 15 | 18.5 | 18.5 | |
Dimension | L | mm | 5850 | 5850 | 5850 | 5850 | 5850 | 6750 | 6750 |
W | mm | 2675 | 2527 | 2935 | 3104 | 2777 | 3208 | 3148 | |
H | mm | 1707 | 2023 | 1703 | 1703 | 2015 | 1885 | 2185 | |
Total weight | kg | 4644 | 5651 | 5117 | 5266 | 6100 | 6577 | 7946 | |
Working dynamic load (single support) | kg | ±140 | ±140 | ±140 | ±140 | ±140 | ±203 | ±203 | |
Maximum dynamic load (single support) | kg | ±980 | ±980 | ±980 | ±980 | ±980 | ±1421 | ±1421 |
4. Instructions for Ordering:
Name, specification, model, form of sieve plate and size of sieve hole must be indicated when ordering. When forced synchronization is used, the motor can be installed in two ways: left or right, please indicate when ordering.
Vibrating Screen With Large Processing Capacity And High Screening Efficiency
Vibrating Screen With Large Processing Capacity And High Screening Efficiency
Vibrating Screen With Large Processing Capacity And High Screening Efficiency
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
