Product Details:
Payment & Shipping Terms:
|
| Type: | YKR Series Vibrating Screen | Usage: | For Coal, Metallurgy, Mineral Processing, Electric Power |
|---|---|---|---|
| Condition: | New | Capacity(t/h): | Max 760 T/h |
| Hole Size(mm): | 6-50mm | Double-amplitude(mm): | 7-10mm |
| Classification: | Ore Dressing Equipment | Warranty: | 12 Months |
| High Light: | 400mm Feed Vibrating Screen Machine,Mineral Processing Vibrating Screen Machine,400mm Feed vibro screen machine |
||
Ore Dressing Equipment Vibrating Screen Maximum Feed Size 400mm
1.YKR series vibrating screen working principle of ore dressing equipment :
It is mainly composed of screen box, exciter, suspension (or support) device and motor. The motor through the triangle belt, driving the shaker spindle rotation, due to the shaker on the unbalanced weight of the centrifugal force, so that the screen box vibration. Different amplitudes can be obtained by changing the eccentricity of the shaker. The drive screen machine adopts the flap coupling and flexible disc coupling with simple structure and easy manufacturing and maintenance, which overcomes the defect of universal coupling easily damaged; Vibrator adopts block eccentric structure, simple structure; Feeding box can be selected, the application of feeding box to increase the effective screening area of the vibrating screen, while extending the service life of the feed end screen; In the transmission part, the intermediate transition bearing block is added. The application of the intermediate transition bearing block effectively protects the motor and prolongs the service life of the motor.
2.YKR series vibrating screen of ore dressing equipment technical performance:
| Model | Screen surface numbers | Screen Area (㎡) | Hole size (mm) | Maximum feed size (mm) | Capacity(m³/h) | Vibration frequency (Hz) |
(mm) |
Motor power( kw) | Dimension |
| YKR1230 | 1 | 3.6 | 6～50 | 200 | 28～180 | 12~16 | 7~10 | 7.5 | Dimensions are not listed in this table. Please request general drawing |
| 2YKR1230 | 2 | 3.6X2 | 6～50 | 200 | 28～180 | 11 | |||
| YKR1236 | 1 | 4.3 | 6～50 | 200 | 30～200 | 7.5 | |||
| 2YKR1236 | 2 | 4.3X2 | 6～50 | 200 | 30～200 | 11 | |||
| YKR1536 | 1 | 5.4 | 6～50 | 200 | 35～220 | 11 | |||
| 2YKR1536 | 2 | 5.4X2 | 6～50 | 200 | 35～220 | 15 | |||
| YKR1542 | 1 | 6.3 | 6～50 | 200 | 42～258 | 11 | |||
| 2YKR1542 | 2 | 6.3X2 | 6～50 | 200 | 42～258 | 15 | |||
| YKR1548 | 1 | 7.2 | 6～50 | 200 | 47～275 | 15 | |||
| 2YKR1548 | 2 | 7.2X2 | 6～50 | 200 | 47～275 | 15 | |||
| YKR1836 | 1 | 6.3 | 6～100 | 300 | 42～600 | 15 | |||
| 2YKR1836 | 2 | 6.3X2 | 6～100 | 300 | 42～600 | 15 | |||
| YKR1842 | 1 | 7.5 | 6～100 | 300 | 50～650 | 18.5 | |||
| 2YKR1842 | 2 | 7.5X2 | 6～100 | 300 | 50～650 | 18.5 | |||
| YKR1848 | 1 | 8.6 | 6～100 | 300 | 59～670 | 18.5 | |||
| 2YKR1848 | 2 | 8.6X2 | 6～100 | 300 | 59～670 | 18.5 | |||
| YKR1854 | 1 | 9.7 | 6～100 | 300 | 68～685 | 22 | |||
| 2YKR1854 | 2 | 9.7X2 | 6～100 | 300 | 68～685 | 22 | |||
| YKR2154 | 1 | 11.3 | 6～100 | 400 | 70～698 | 22 | |||
| 2YKR2154 | 2 | 11.3X2 | 6～100 | 400 | 70～698 | 30 | |||
| YKR2160 | 1 | 12.6 | 6～100 | 400 | 80～710 | 22 | |||
| 2YKR2160 | 2 | 12.6X2 | 6～100 | 400 | 80～710 | 30 | |||
| 3YKR2160 | 3 | 12.6X3 | 6～100 | 400 | 80～710 | 37 | |||
| YKR2454 | 1 | 12.9 | 6～150 | 400 | 83～760 |

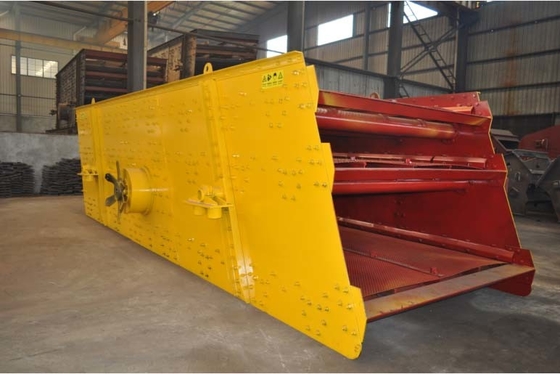

Ore Dressing Equipment Vibrating Screen Maximum Feed Size 400mm

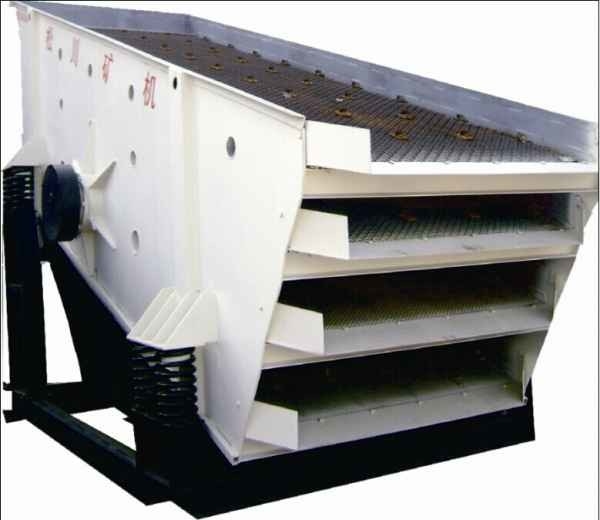

Ore Dressing Equipment Vibrating Screen Maximum Feed Size 400mm
Ore Dressing Equipment Vibrating Screen Maximum Feed Size 400mm
