Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Used In: | Water Conservancy And Hydropower, Glass Factory |
|---|---|---|---|
| Feeding Size: | ≤ 5 Mm | Suitable: | In Coal Preparation Plant And Environmental Engineering |
| Pump (power): | 15-37 KW | Processing Capacity: | 50-300 （m³/h） |
| Vibrating Screen Power（kw）: | 2x5.5Kw | Warranty: | 12 Months |
| Classification: | Ore Dressing Equipment | ||
| High Light: | 37KW Ore Dressing Equipment,37KW Sand Recovery System,Sand Recovery System For Beneficiation |
||
Ore Dressing Equipment Fine Sand Recovery Device For beneficiation
1. Description of fine sand recovery device of ore dressing equipment:
The fine sand recovery device is designed by our company by absorbing foreign advanced technology and combining with the actual situation of our country. It is widely used in water conservancy and hydropower, glass factory, fine sand and stone of building materials, recovery of coarse slime of coal preparation plant and environmental engineering (mud purification, etc.).
2. Size: 5 mm or less
3. Composition of fine sand recovery device of ore dressing equipment:

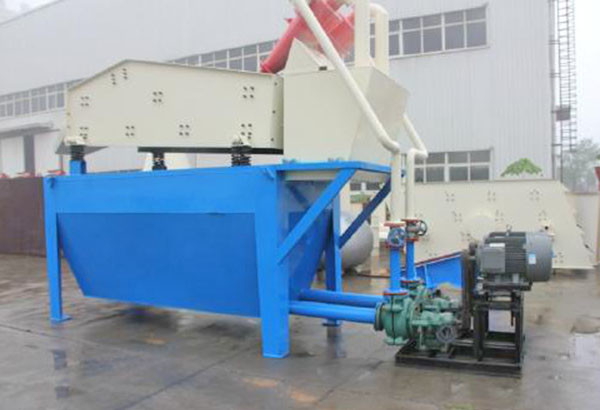

It is composed of speed regulating motor, ballast slurry pump, cyclone, ZKR linear vibrating screen, washing tank and material return box.
4. Working process of fine sand recovery device of ore dressing equipment:
The pump will transport the sand and water mixture to the cyclone, centrifugal classification and concentration of fine sand is provided to the vibrating screen through the sand mouth, the vibrating screen dehydration, fine particles and water effectively separated, a small amount of fine sand, mud and so on through the feed box and then to the wash tank, wash tank liquid level is too high, through the discharge port discharge. Linear vibrating screen recovery material weight concentration of 70%-85%. The fineness modulus can be adjusted by changing the pump speed, changing the mortar concentration, adjusting the overflow water and replacing the sand nozzle. Thus complete cleaning, dehydration and grading three functions.
5. . Product parameters of fine sand recovery device of ore dressing equipment:
| Model | Pump (power) | Swirler | Vibrating screen power(kw) | Processing capacity(m³/h) |
| HX22-30 | 15Kw | 300 | 2x3Kw | 50-120 |
| HX22-50(I) | 18.5Kw | 500 | 2x4Kw | 100-150 |
| HX22-50(II) | 22Kw | 600 | 2x4Kw | 120-230 |
| HX22-60(I) | 30Kw | 700 | 2x5.5Kw | 200-280 |
| HX30-60(II) | 37Kw | 700 | 2x5.5Kw | 250-300 |
Ore Dressing Equipment Fine Sand Recovery Device For beneficiation
Ore Dressing Equipment Fine Sand Recovery Device For beneficiation
Ore Dressing Equipment Fine Sand Recovery Device For beneficiation
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
