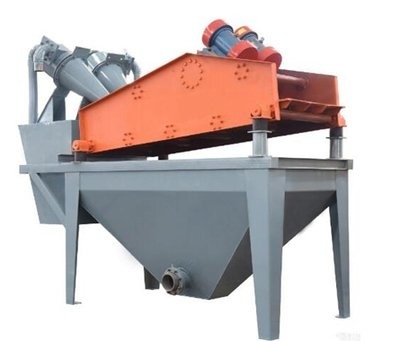

Ore Dressing Equipment Fine Sand Recovery Device For Iron Mining Sand Separation
1. Description of fine sand recovery device of ore dressing equipment:
The fine sand recovery device is designed by our company by absorbing foreign advanced technology and combining with the actual situation of our country. It is widely used in water conservancy and hydropower, glass factory, fine sand and stone of building materials, recovery of coarse slime of coal preparation plant and environmental engineering (mud purification, etc.).
2. Size: 5 mm or less
3. Composition of fine sand recovery device of ore dressing equipment:

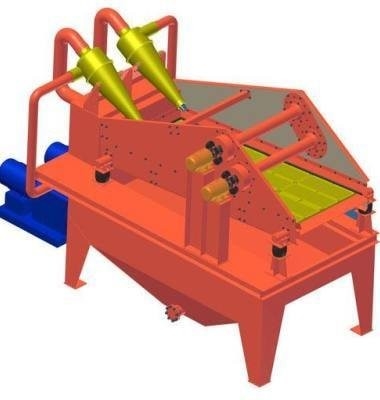

It is composed of speed regulating motor, ballast slurry pump, cyclone, ZKR linear vibrating screen, washing tank and material return box.
4. Product parameters of fine sand recovery device of ore dressing equipment:
| Model | Pump (power) | Swirler | Vibrating screen power(kw) | Processing capacity(m³/h) |
| HX22-30 | 15Kw | 300 | 2x3Kw | 50-120 |
| HX22-50(I) | 18.5Kw | 500 | 2x4Kw | 100-150 |
| HX22-50(II) | 22Kw | 600 | 2x4Kw | 120-230 |
| HX22-60(I) | 30Kw | 700 | 2x5.5Kw | 200-280 |
| HX30-60(II) | 37Kw | 700 | 2x5.5Kw | 250-300 |
fine sand recovery device
fine sand recovery device
fine sand recovery device
