Product presentation
Horizontal centrifuge is a machine used for liquid-solid separation and filtration. The horizontal centrifuge uses the high-speed rotating drum to generate centrifugal force to intercept the solid particles in the suspension in the drum and automatically discharge them out of the machine under the action of force; at the same time, under the action of centrifugal force, the liquid in the suspension is thrown out through the filter medium and the small holes of the drum, thereby achieving the purpose of liquid-solid separation and filtration.
Working principle:
The material enters the bottom of the sieve blue through the enamel coated feeding tube and sieve seat. The material inside the sieve blue is tightly attached to the sieve surface by centrifugal force. Under the action of vibration force, the material layer moves uniformly towards the large end of the sieve blue. The dehydrated material is thrown out from around the sieve blue and falls into the discharge port at the lower part of the machine casing. Discharge downwards. The moisture in the material passes through the material layer and sieve gap under the action of centrifugal force, and is thrown around the casing, flowing along the casing wall towards the drainage outlet.
Main features:
1. High processing capacity and good dehydration effect.
2. The product has a low degree of breakage, and the blue screen is not easily worn and has a long service life.
3. The TWZ system is an inertial resonance vibration system with stable and reliable amplitude and frequency.

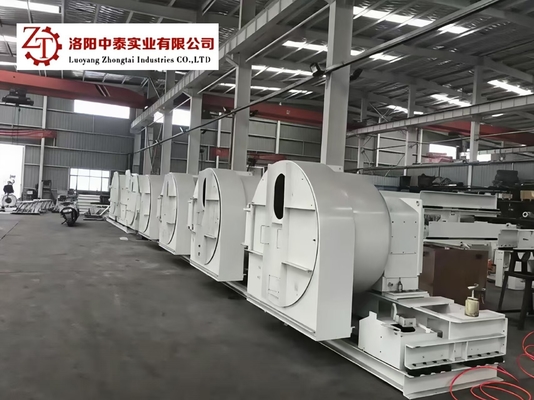

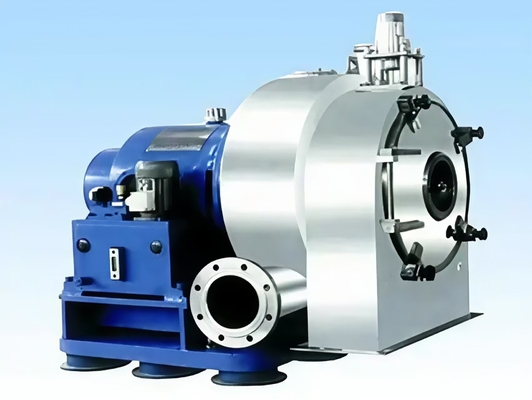

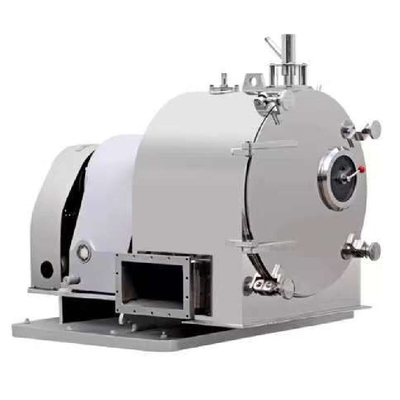

Product display
Technology features
| Parameter |
Unit |
Model Tape |
| TWZ850 |
TWZ10A |
TWZ850 |
TWZ850 |
TWZ850 |
TWZ850 |
| Feed particle size |
mm |
≤ |
0～25 |
0.5～50 |
0～50 |
≤50 |
0.5～50 |
| Processing ability |
t/h |
30～50 |
50～100 |
100～150 |
180～250 |
200～300 |
250～350 |
| Product moisture |
% |
5～9 |
| Large end diameter of sieve basket |
mm |
850 |
100 |
1150 |
1300 |
1400 |
1500 |
| Screen seam size |
mm |
0.25,0.3,0.35,0.5 |
| Sieve basket vibration frequency |
Hz |
25 |
25 |
25 |
25 |
25 |
25 |
| Double amplitude |
mm |
4～6 |
4～6 |
4～6 |
4～6 |
4～6 |
4～6 |
| Main motor power |
Kw |
15 |
22 |
37.5 |
45 |
55 |
75 |
| Vibration motor power |
Kw |
4 |
5.5 |
7.5 |
7.5 |
11 |
15 |
| Oil pump motor power |
Kw |
0.37 |
0.37 |
0.55 |
0.55 |
0.55 |
0.55 |
| Boundary dimension |
L |
mm |
2060 |
2150 |
2800 |
2700 |
3100 |
3170 |
| W |
mm |
1510 |
1875 |
1930 |
2260 |
3090 |
2975 |
| H |
mm |
1652 |
1765 |
1930 |
2245 |
2295 |
2400 |
| Equipment weight |
Kg |
2500 |
2620 |
5527 |
6500 |
9200 |
10000 |
NOTE
1. The mesh gap can be supplied according to user requirements.
2. Complete supply of host (including motor).
3. Spare parts will be ordered separately.
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time
A: parts lead time 1-2months, machines 2-3months.
Q:Payment terms
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
