High-pressure roller mill
The high-pressure roller mill developed by applying the lamination crushing mechanism is a typical equipment currently used in the world for crushing and grinding non-ferrous mines and oxide pellets. It has the advantages of high production efficiency, significant energy saving, low investment, convenient maintenance and good working environment.
Product advantages
1. The transmission system is motor-universal coupling (safety clutch)-planetary reducer-pressure roller, which is a shaft-mounted flexible transmission system. High-pressure roller mill, grinding equipment, roller mill, ball mill
2. The side seal structure of the pressure roller is unique, and a combination of non-contact seal and contact seal is adopted to effectively reduce the edge effect of the pressure roller. High-pressure roller mill, grinding equipment, roller mill
3. The feed column tube adopts a unique near-elliptical structure, which effectively prevents the edge hanging of the original rectangular feed column tube, making the material more unobstructed. High-pressure roller mill, grinding equipment, roller mill
4. Hydraulic part: The exposed part of the cylinder plunger is reliably sealed to effectively prevent dust from entering. The entire hydraulic system can realize automatic retreat, pressure maintenance, pressure compensation and other actions. High-pressure roller mill
Luoyang Zhongtai Industrial High Pressure Roller Mill is applicable to:
1. Medium, fine and ultrafine grinding of loose materials.
2. In the mineral processing industry, it can be arranged before the ball mill, can be used as a pre-grinding device, and can also form a mixed grinding system with the ball mill.
3. In the oxidation pelletizing industry, it can replace the commonly used dampening mill.
4. In the building materials, refractory materials and other industries, it has been successfully applied in the grinding of cement clinker, limestone, bauxite, etc.
Luoyang Zhongtai Industrial High Pressure Roller Mill Product Advantages:
1. The production capacity is up to 1,000 tons/hour, which can increase the production of the entire system by 30% to 40%.
2. Compared with cone crushers, rod mills and ball mills, the energy consumption is reduced by about 20% to 50%.
3. After crushing, the power consumption of the grinding material is reduced to 15 kilowatts/ton.
4. The crushing and grinding effect is good, and the content of fine powder below 1 mm is increased by 40% to 50%.
5. It occupies a small area, has high reliability, and the operating rate can reach about 95%.

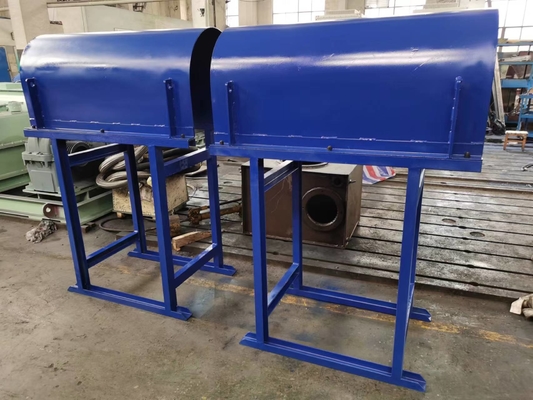

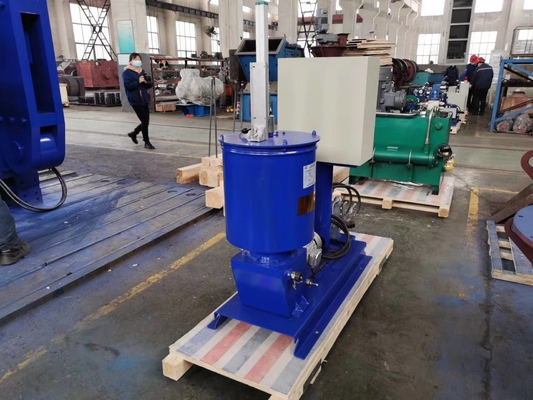

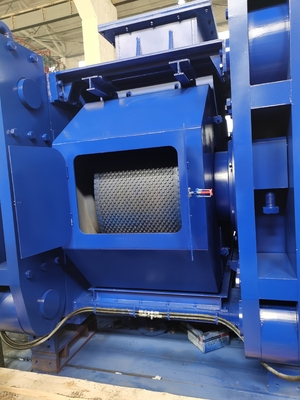

Product display
Product Parameter
| GM series high-pressure roller mill Technical parameters of GM series high-pressure roller mill |
| Model |
Roller diameter (mm) |
Roller width (mm) |
Power(kw) |
Feed particle size (mm) |
Product particle size (mm) |
Throughput (t/h) |
Approximate weight (t) |
| 90% |
10% |
70%-80% |
| GM52-20 |
520 |
200 |
2×90 |
≤25 |
26-40 |
≤3 |
31 |
13 |
| GM65-22 |
650 |
220 |
2×110 |
≤25 |
26-40 |
≤3 |
43 |
19 |
| GM80-30 |
800 |
300 |
2×135 |
≤25 |
26-40 |
≤3 |
70 |
30 |
| GM90-30 |
900 |
300 |
2×150 |
≤25 |
26-40 |
≤3 |
129 |
38 |
| GM100-40 |
1000 |
400 |
2×200 |
≤25 |
26-40 |
≤3 |
192 |
55 |
| GM100-50 |
1000 |
500 |
2×280 |
≤25 |
26-40 |
≤3 |
240 |
60 |
| GM120-60 |
1200 |
600 |
2×355 |
≤25 |
26-40 |
≤3 |
312 |
86 |
| GM120-70 |
1200 |
700 |
2×400 |
≤25 |
26-40 |
≤3 |
403 |
93 |
| GM120-80 |
1200 |
800 |
2×500 |
≤25 |
26-40 |
≤3 |
460 |
98 |
| GM140-80 |
1400 |
800 |
2×550 |
≤25 |
26-40 |
≤3 |
538 |
110 |
| GM140-110 |
1400 |
1100 |
2×800 |
≤25 |
26-40 |
≤3 |
739 |
133 |
| GM140-140 |
1400 |
1400 |
2×1000 |
≤25 |
26-40 |
≤3 |
941 |
156 |
