Product Introduction
The flotation machine is suitable for the separation of non-ferrous and ferrous metals, and can also be used for the separation of non-metals such as coal fluorite and talc. The flotation machine has the following characteristics: large air suction volume and low power consumption. Each slot has the triple functions of air suction, slurry suction and flotation, forming a flotation circuit without any auxiliary equipment, and the configuration is level, which is convenient for process changes.
Working Principle
When the flotation machine is working, as the impeller rotates, the pulp in the tank is sucked from all sides through the bottom of the tank and from the lower end of the impeller to between the impeller blades. At the same time, the low-pressure air supplied by the blower also enters through the hollow shaft and the air distributor of the impeller. After the pulp and air are fully mixed between the blades, they are pushed upward from the periphery of the upper half of the impeller, and enter the entire tank after being stabilized and oriented by the stator. The bubbles rise to the foam stabilization zone, and after the enrichment process, the foam overflows from the overflow weir by gravity and enters the foam tank. Another part of the pulp flows to the lower part of the impeller, and then is stirred by the impeller and remixed to form mineralized bubbles. The remaining pulp flows to the next tank until it finally becomes tailings.
Product Advantages
1. High sorting accuracy: The flotation machine has high sorting accuracy, can effectively separate minerals, has low ash content in clean coal, and has high yield, especially for difficult-to-sort coal. The ash content in clean coal can be reduced by 1~2% compared with conventional mechanical agitation flotation machines.
2. Large processing capacity: The flotation machine has a large processing capacity, and the processing capacity per unit volume is 2~3 times that of conventional flotation machines.
3. Low operating cost: The operating cost of the flotation machine is low, and it can save 1/3~1/2 electricity compared with conventional mechanical agitation flotation machines.
Use and Maintenance
1. The working capacity and working time of the flotation machine are determined by maintenance like other machines and are maintained for 3-4 months of work. The main parts of the normal operation are carefully checked, but the new flotation machine should be checked frequently in the first few months of work;
2. Only skilled personnel can carry out inspections.
3. In order to ensure that the wearing parts are replaced in time to reduce downtime, we must always keep a complete set of parts in the warehouse. According to different situations, the use date and reserve quantity of wearing parts are determined.
4. It must be guaranteed that some technical guidance and training are given to the flotation machine operator so that he is fully familiar with the machine.
Product Parameter
| Model |
SF0.37 |
SF0.7 |
SF1.2 |
SF2.8 |
SF4 |
SF8 |
| Trough capacity(m³) |
0.37 |
0.7 |
1.2 |
2.8 |
4 |
8 |
| Impeller diameter(mm) |
300 |
350 |
450 |
550 |
650 |
T60 |
| Production capacity (m³/min) |
0.2-0.4 |
0.3-0.9 |
0.6-1.2 |
1.5-3.5 |
0.5-4 |
4-8 |
| Impeller rotation speed (r/min) |
352 |
400 |
312 |
268 |
238 |
191 |
| Motor |
Model |
Y90L-4 |
Y100L2-4 |
Y132M2-6 |
Y160L-6 |
Y180L-6 |
Y250M-8 |
| Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90L-4 |
Y100L-6 |
| Power(kw) |
1.5 |
3 |
5.5 |
11 |
15 |
30 |
| 1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
1.5 |
|
Dimensions
(mm)
|
700×700×750 |
900×820×950 |
1100×1100×1100 |
1700×1600×1150 |
1850×2050×1200 |
2200×2900×1400 |
| Single trough weight(kg) |
468 |
600 |
1373 |
2338 |
2660 |
4486 |

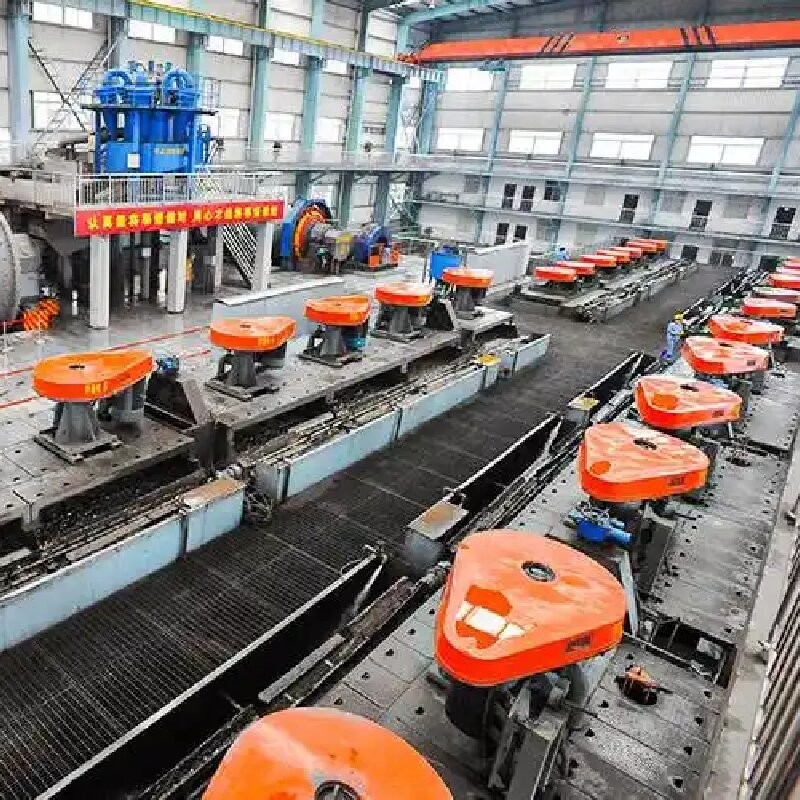

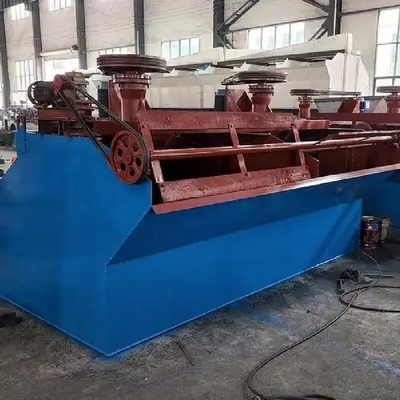

Product Display
Q&A
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
