Product Introduction
Magnetic separators are widely used in resource recycling, wood industry, mining industry, kiln industry, chemical industry, food industry and other factories. They are suitable for wet magnetic separation of magnetite, pyrrhotite, roasted ore, ilmenite and other materials with particle size below 3mm. They are also used for iron removal of coal, non-metallic minerals, building materials and other materials. They are one of the most widely used and versatile machines in the industry.
Technical features
Our magnetic separators integrate large cavity Kaizhuang high-performance physical magnet technology, new multi-pointed stainless steel wool material technology, solid-liquid-gas three-phase flow membrane separation technology, high-power low-voltage high-current rectification technology, PLC electronic control technology, and flow, temperature, pressure and other testing technologies.
The separation magnetic field is high (up to 2.2T), the magnetic field gradient is high, and the magnetic field size can be freely adjusted according to needs.
Adopting programmable control, the entire production process is fully automatically controlled, which is convenient for changing the process flow.
Application range
1. Purification and refining of fine-grained clay minerals (kaolin, bauxite, etc.): remove fine weak magnetic impurity particles (Fe2O3, TiO2) in clay ores;
2. Reduce the Fe2O3 content in quartz sand, feldspar, and barite;
3. Reduce the copper content in molybdenum concentrate;
4. Coal ash and sulfur removal;
5. Improve the quality of apatite;
Application example
The raw bauxite ore contains 1.69% Fe2O3, the magnetic separation concentrate contains 0.23% Fe2O3, and the yield is 80%.
The raw coal-based kaolin ore contains 0.85% Fe2O3, the magnetic separation concentrate contains 0.44% Fe2O3, and the yield is 89%.
Product Parameter
| model |
Cylinder diameter(mm) |
Cylinder long(mm) |
rotate speed(r/min) |
Feed particle size(mm) |
handling capacity(t/h) |
power(kw) |
| CTB6012 |
600 |
1200 |
<35 |
2-0 |
10-20 |
1.5 |
| CTB6018 |
600 |
1800 |
<35 |
2-0 |
15-30 |
2.2 |
| CTB7518 |
750 |
1800 |
<35 |
2-0 |
20-45 |
2.2 |
| CTB9018 |
900 |
1800 |
<35 |
3-0 |
40-60 |
3 |
| CTB9021 |
900 |
2100 |
<35 |
3-0 |
45-60 |
3 |
| CTB9024 |
900 |
2400 |
<28 |
3-0 |
45-70 |
4 |
| CTB1018 |
1050 |
1800 |
<20 |
3-0 |
50-75 |
5.5 |
| CTB1021 |
1050 |
2100 |
<20 |
3-0 |
50-100 |
5.5 |
| CTB1024 |
1050 |
2400 |
<20 |
3-0 |
60-120 |
5.5 |
| CTB1218 |
1200 |
1800 |
<18 |
3-0 |
80-140 |
5.5 |
| CTB1224 |
1200 |
2400 |
<18 |
3-0 |
85-180 |
7.5 |
| CTB1230 |
1200 |
3000 |
<18 |
3-0 |
100-180 |
7.5 |

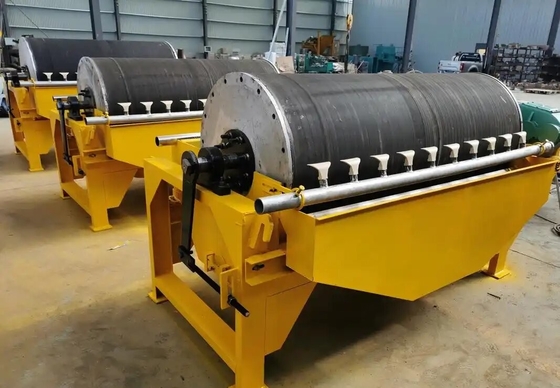

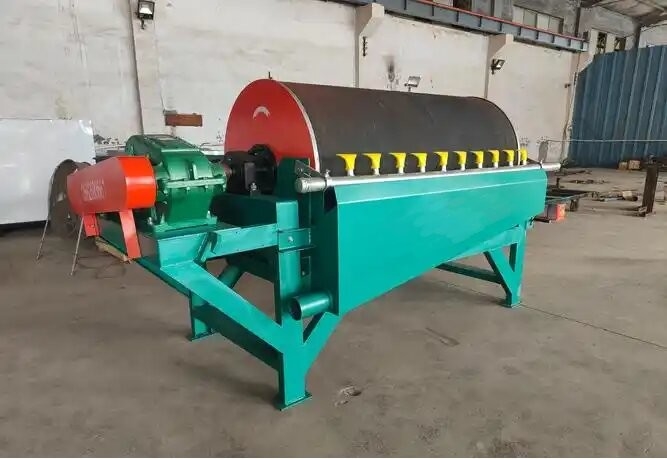

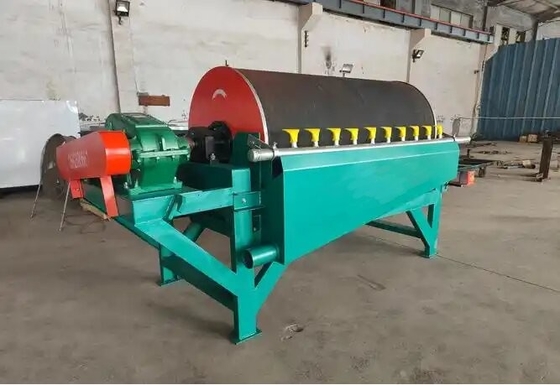

Product display
Q&A
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
