Ore/Mineral Powder/Slag Dryer, Drying Equipment, Large Processing Capacity
Product Introduction
Dryers are mainly used for drying materials with a certain humidity or particle size in mineral processing, building materials, metallurgy, chemical industry and other departments. Rotary dryers have strong adaptability to materials and can dry various materials. The equipment is simple and reliable, so they are widely used. Luokuang series dryers are widely used in: iron oxide, sludge, coke, pig iron filings, copper concentrate, silicon carbide powder, rare earth ore, mercury ore powder, tin ore powder, cobalt ore powder, nickel ore powder, manganese ore powder, gypsum powder, bentonite, kaolin, iron ore, lead concentrate, petroleum coke, gold ore powder, steel slag, slag, fluorite ore, sea sand, river sand and other materials.
Structural features of dryers
This dryer is mainly composed of cylinder, large ring gear, pinion, support wheel, retaining wheel, wheel belt, support wheel shaft and other parts. The motor passes through the V-belt, through the two-stage reduction of the reducer, and drives the large ring gear through the pinion, so that the cylinder runs at the designed speed, thereby drying the materials in the cylinder evenly.
Maintenance method
1. Check the hot flue gas temperature of the inlet of the rotary dryer during normal operation, which is 700-800 degrees Celsius, and the hot flue gas temperature of the outlet is 90-150 degrees Celsius.
2. Check the roller and support wheel of the rotary dryer. Whether the lubrication points of the support wheel bearing are filled with enough oil
3. Whether the contact between the roller and the support wheel is good, and the contact surface is not less than 70% of the width of the roller
4. Whether there is any crack in the weld between the roller and the pad, and whether there is any excessive wear between the roller and the support wheel.
5. Whether the fastening bolts and anchor bolts of the rotary dryer are loose or broken.

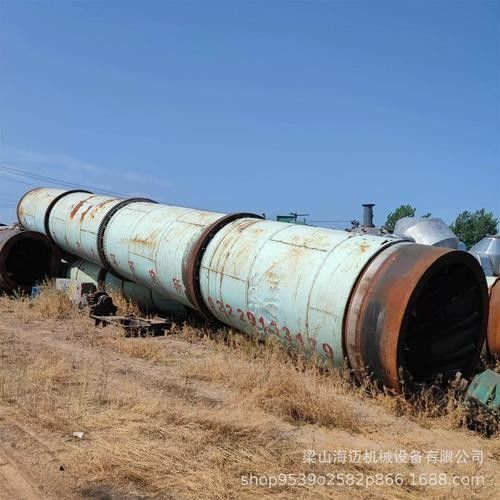

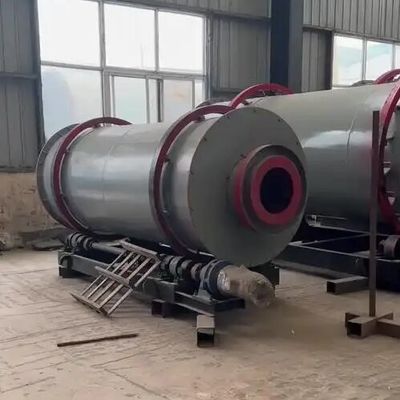

Product display
Product Parameter
| Product Specification (m) |
Cylinder volume (m ³) |
Production capacity (t/h) |
Installation slope (%) |
Maximum intake air temperature (℃) |
Main motor (kw) |
weight(t) |
| Φ1.2×8.0 |
9 |
1.9-2.4 |
3-5 |
700-800 |
7.5 |
9 |
| Φ1.2×10 |
11.3 |
2.4-3.0 |
3-5 |
700-800 |
7.5 |
11 |
| Φ1.5×12 |
21.2 |
4.5-5.7 |
3-5 |
700-800 |
15 |
18.5 |
| Φ1.5×14 |
24.7 |
5.3-6.6 |
3-5 |
700-800 |
15 |
19.7 |
| Φ1.5×15 |
26.5 |
5.7-7.1 |
3-5 |
700-800 |
15 |
20.5 |
| Φ1.8×12 |
30.5 |
6.5-8.1 |
3-5 |
700-800 |
18.5 |
21.5 |
| Φ1.8×14 |
35.6 |
7.6-9.5 |
3-5 |
700-800 |
18.5 |
23 |
| Φ2.2×12 |
45.6 |
9.7-12.2 |
3-5 |
700-800 |
22 |
33.5 |
| Φ2.2×14 |
53.2 |
11.4-14.2 |
3-5 |
700-800 |
22 |
36 |
| Φ2.2×16 |
60.8 |
13.0-16.2 |
3-5 |
700-800 |
22 |
38 |
| Φ2.4×14 |
63.3 |
13.5-16.9 |
3-5 |
700-800 |
37 |
45 |
| Φ2.4×18 |
81.4 |
17.4-21.7 |
3-5 |
700-800 |
37 |
49 |
| Φ2.4×20 |
90.4 |
19.3-24.1 |
3-5 |
700-800 |
45 |
54 |
| Φ2.4×22 |
99.5 |
21.2-26.5 |
3-5 |
700-800 |
45 |
58 |
| Φ2.6×24 |
127.4 |
27.4-34.0 |
3-5 |
700-800 |
55 |
73 |
| Φ3.0×20 |
141.3 |
30.1-37.7 |
3-5 |
700-800 |
75 |
85 |
| Φ3.0×25 |
176.6 |
37.7-47.1 |
3-5 |
700-800 |
75 |
95 |
| Φ3.2×25 |
201 |
42.9-53.6 |
3-5 |
700-800 |
90 |
110 |
| Φ3.6×28 |
285 |
60.8-76.0 |
3-5 |
700-800 |
160 |
135 |
Q&A
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
