Large Capacity Low Energy Consumption Hydraulic Gyratory Crusher For Mining

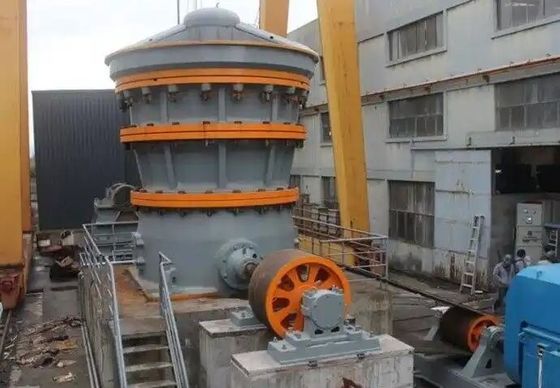

Large Image : Large Capacity Low Energy Consumption Hydraulic Gyratory Crusher For Mining

Product Details:

Place of Origin:	Henan China
Brand Name:	ZTIC
Certification:	ISO\CE
Model Number:	Castings And Forgings

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiated
Packaging Details:	Standard packing or according to customer's requirement
Payment Terms:	L/C, T/T
Supply Ability:	5000 Set/Sets per Year

Contact Now

Detailed Product Description

Material:	Coarse Crushing Ore Or Rock	SPEC:	Customizable
Application:	In Metallurgy, Building Materials, Chemical Industry, Hydropower And Other Industries	Transmission Department:	Small Bevel Gear, Shaft, Transmission Housing
Condition:	New	Usage:	Coarse Smash Equipment
Type:	Castings And Forgings	Port:	Qingdao China
Highlight:	Mining Hydraulic Gyratory Crusher , Low Energy Consumption Gyratory Crusher , Large Capacity Hydraulic Gyratory Crusher

Large Capacity And Low Energy Consumption Hydraulic Gyratory Crusher For Mining

Product Advantages
Hydraulic gyratory crusher has very significant technical advantages: large production capacity, high installed power, and the two indicators are improved by 30% to 50%. Large eccentricity, adjustable, and high production efficiency. The introduction of new design and new structure, the locking nut is placed on the shaft sleeve to avoid the shaft breakage phenomenon of the old crusher, and the main shaft is processed by integral forging to ensure the rigidity and strength of the main shaft. The use of spiral bevel gears improves the transmission power and transmission stability, and reduces the vibration and noise of the equipment. The application of hydraulic and lubrication integrated structure greatly improves the automation level. Humanized design, equipped with special tools for inspection and maintenance, improves the equipment operation rate, and reduces the labor intensity of workers.

Product advantages
1. Large crushing ratio
2. High production capacity
3. Uniform product size
4. Advanced design
5. Reliable performance
6. Stable operation
7. Low energy consumption

Working Principle
Hydraulic gyratory crusher is a crushing machine that uses the gyratory motion of the crushing cone in the cone cavity of the shell to squeeze, split and bend the material, and roughly crushes ores or rocks of various hardness. The upper end of the main shaft equipped with the crushing cone is supported in the bushing in the middle of the beam, and its lower end is placed in the eccentric hole of the sleeve. When the sleeve rotates, the crushing cone performs eccentric gyratory motion around the center line of the machine. Its crushing action is continuous, so its working efficiency is higher than that of the jaw crusher.

Product Parameter

Model	Feeding port size	Discharge port size	Maximum feed size	Discharge opening adjustment range	Output	Cone bottom diameter	Main motor				Lubrication Station Specifications(≥MIN)
	MM	MM	MM	MM	T/H	MM	type	Power(kw)	Speed(R/min)	Voltage(v)
PXZ 0506	500	60	420	60～75	140～170	1200	JR128-10	130	585	380	40
PXZ 0710	700	100	580	100～130	310～400	1400	JR136-8	145	730	3000	40
							JR128-8	155		380
PXZ 0909	900	90	750	90～120	380～510	1650	JR137-8	210	735	380	63
PXZ 0913	900	130	750	130～160	625～770	1650	JR137-8	210	735	380	63
PXZ 0917	900	170	750	170～190	815～910	1650	JR137-8	210	735	380	63
PXZ 1216	1200	160	1000	160～190	1250～1480	2000	JRQ158-10	310	590	6000	125
PXZ 1221	1200	210	1000	210～230	1560～1720	2000	JRQ158-10	310	590	6000	125
PXZ 1417	1400	170	1200	170～200	1750～2060	2200	JRQ1510-10	430	590	3000	125
								400		6000
PXZ 1422	1400	220	1200	210～230	2160～2370	2200	JRQ1510-10	430	590	3000	125
								400		6000
PXZ 1618	1600	180	1350	180～210	2400～2800	2500	JRQ158-10	310	590	6000	125
PXZ 1623	1600	230	1350	210～240	2800～3200	2500	JRQ158-10	310	590	6000	125

Product Display

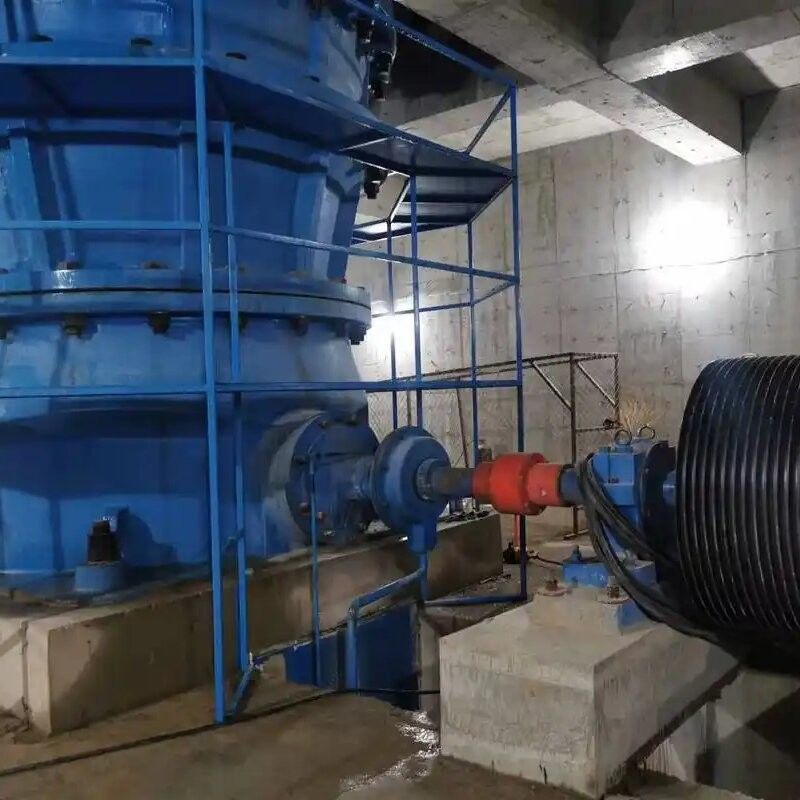

Large Capacity Low Energy Consumption Hydraulic Gyratory Crusher For Mining 1

ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
