High quality wear-resistant heavy hammer crusher mining machinery

High Quality Wear-Resistant Heavy Hammer Crusher Mining Machinery

Product Introduction
Hammer crusher is a kind of equipment that crushes materials in the form of impact. It is divided into single rotor and double rotor. It is a crusher that directly crushes materials with a maximum particle size of 600-1800 mm to 25 or less. Hammer crusher is suitable for medium and fine crushing of materials with medium hardness, such as limestone, slag, coke, coal and other materials in cement, chemical, electric power, metallurgy and other industrial sectors.

Features
⑴The working hammer head is cast with a new process and is wear-resistant and impact-resistant.
⑵The required particle size can be adjusted according to customer requirements.
⑶The hammer crusher body structure is sealed, which solves the dust pollution and body ash leakage problems in the crushing workshop.
⑷The overall design has the advantages of beautiful shape, compact structure, few wearing parts, and convenient maintenance. It is an upgraded product.
⑸Compact structure, beautiful appearance, good wear resistance and convenient maintenance.

Working principle
Hammer crusher mainly relies on impact energy to complete the material crushing operation. When the hammer crusher is working, the motor drives the rotor to rotate at high speed, and the material enters the crusher cavity evenly. The high-speed rotating hammer impacts, shears and tears the material to crush it. At the same time, the gravity of the material itself causes the material to rush from the high-speed rotating hammer to the baffle and screen bar in the frame. The material larger than the screen hole size is retained on the screen plate and continues to be hit and ground by the hammer until it is crushed to the required discharge particle size and finally discharged from the machine through the screen plate.

Main uses
The crushed materials are coal, salt, chalk, gypsum, bricks and tiles, limestone, etc. It is also used to crush fiber structure, elastic and tough wood, paper or asbestos cement waste to recover asbestos fiber, etc. In addition, the hammer crusher can not only be used in crushing production lines and sand making production lines, but also can replace the cone crusher in the mineral processing production line.

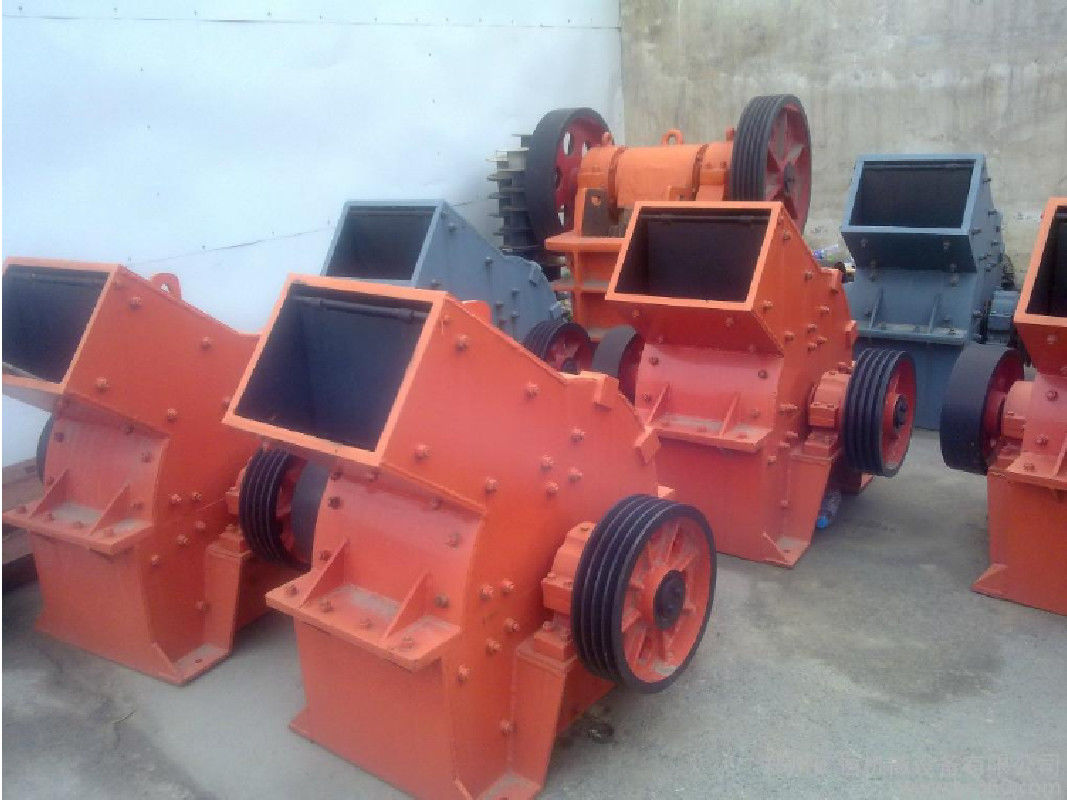

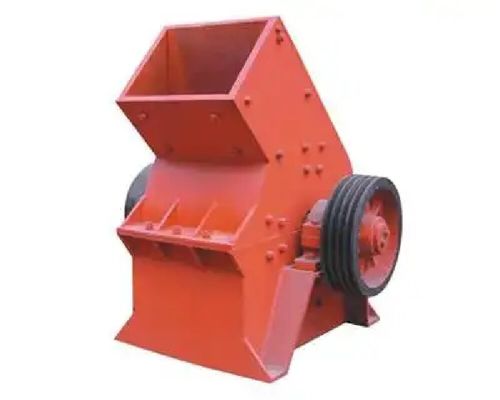

Product Display

Product Parameters
