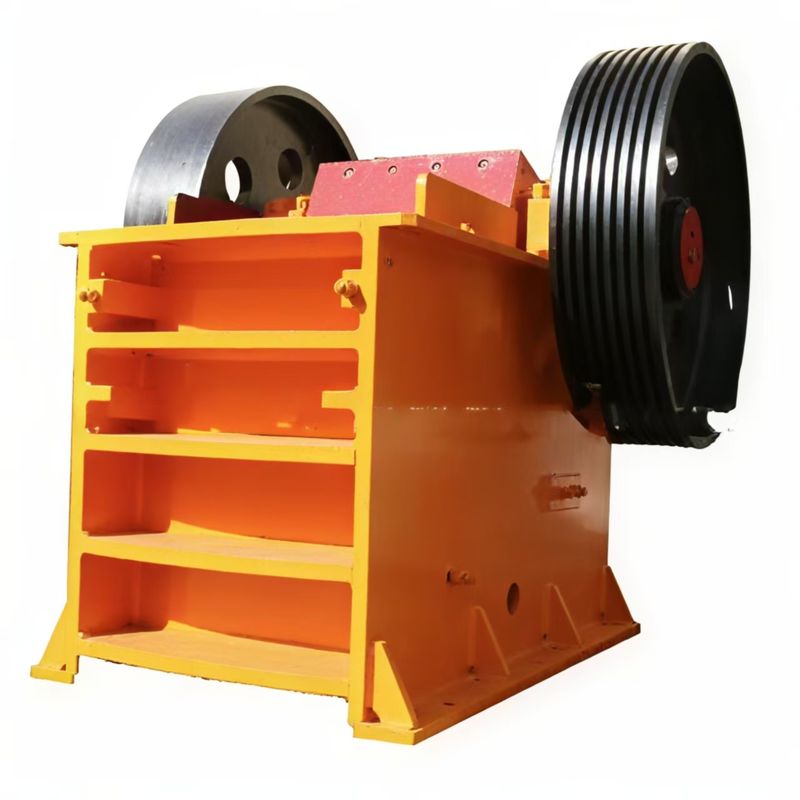

Support Customized Jaw Crusher Mining Stone Fine Crushing Equipment
Product Usage
Jaw crusher series products are widely used in mining, smelting, construction, highway, railway, water conservancy and chemical industry and other industries. It has the characteristics of large crushing ratio, uniform product particle, reasonable structure, reliable work, convenient maintenance, economic operating costs, etc., crushing compressive strength of various materials does not exceed 320 mpa.
Product advantages and features
Easy maintenance and economical operation cost.
Simple structure and reliable operation.
Large crushing ratio, uniform product particle size
Operating principle
The machine is mainly composed of frame, moving jaw, eccentric shaft, jaw plate, elbow plate and other parts, the motor rotates the eccentric shaft through the triangle belt, so that the moving jaw moves according to the adjusted track, so as to break the material in the crushing chamber.
The frame is a single monolithic cast steel structure, the front wall of the frame is equipped with a fixed jaw plate tightened with wedge bolts, and the side wall of the frame is equipped with a side guard plate on the left and right of the crushing chamber to prevent the wear of the frame side wall.

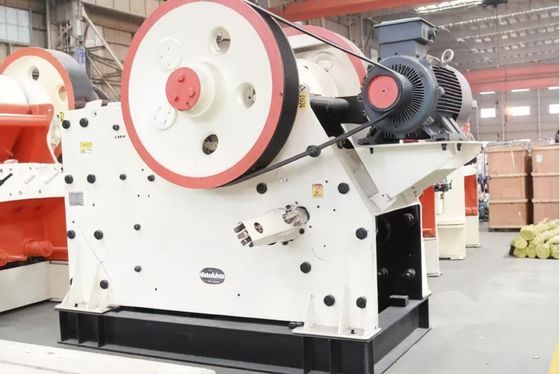

Product Display
Product Parameters
| feed inlet size |
Maximum feed size |
Discharge port adjustment range |
processing capacity |
Eccentric shaft speed |
power |
weight |
size |
| (mm) |
(mm) |
(mm) |
(t/h) |
(r/min) |
(kw) |
(t) |
(mm) |
| 150×250 |
130 |
10-40 |
|
300 |
5.5 |
0.9 |
875×756×850 |
| 250×400 |
210 |
20-80 |
|
300 |
15 |
2.6 |
1450×1315×1296 |
| 400×600 |
350 |
40-100 |
16-65 |
275 |
30/37 |
6.5 |
1565×1732×1586 |
| 500×750 |
425 |
50-100 |
45-100 |
275 |
55 |
10.1 |
1890×1916×1870 |
| 600×900 |
500 |
65-160 |
90-180 |
250 |
55/57 |
15.5 |
2305×1840×2260 |
| 750×1060 |
630 |
80-140 |
110-320 |
250 |
110 |
28 |
2450×2472×2840 |
| 800×1060 |
650 |
100-200 |
140-350 |
250 |
110 |
28.5 |
2450×2556×2800 |
| 870×1060 |
670 |
200-260 |
140-380 |
250 |
110 |
30.5 |
2660×2556×2800 |
| 900×1200 |
750 |
100-200 |
180-360 |
250 |
132 |
50 |
3335×3182×3025 |
| 1000×1200 |
850 |
192-260 |
200-420 |
250 |
132 |
51 |
3435×3182×3025 |
| 1200×1300 |
1000 |
180-330 |
400-800 |
220 |
200 |
62 |
4538×2984×3959 |
| 1200×1500 |
1020 |
150-350 |
400-800 |
180 |
220 |
100.9 |
4200×3732×3025 |
| 1500×1800 |
1200 |
220-350 |
450-1000 |
180 |
280 |
122 |
5100×4700×4300 |
| 250×1000 |
210 |
25-60 |
16-52 |
330 |
30/37 |
6.5 |
1530×1992×1380 |
| 250×1200 |
210 |
25-60 |
20-60 |
330 |
37 |
7.7 |
1900×2192×1430 |
| 300×1300 |
250 |
25-90 |
20-90 |
330 |
55 |
11 |
1900×2192×1430 |
Q&A
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
