Product Definition
This product is a load-bearing device whose sole purpose is to collect molten or solid slag resulting from metallurgical or chemical processes, retain it during transport and deposit it at a disposal site. Slag pots are an essential component of lifting equipment and therefore must comply with the national safety regulations of the country in which they are used in terms of mechanical design, engineering and operation. Dillinger slag pots are designed for use in the European Union and comply with the requirements of the European Machinery Directive 2006/42/EC: each slag pot carries the CE conformity mark.

Material
The pot body is made of cast steel DICAST, a ZTIC brand for casting products: the material is similar to steel grade A27/A 27M grade 65-35 (April 2003), BS 3100 A1/A2 steel grade (January 1991) or DIN 17182 steel grade GS 20Mn5 (May 1992). DICAST is a fully killed steel, vacuum degassed and processed to a fine grain structure with increased toughness and elongation.
Apart from supplying the trunnion forgings and designing the moulds, all other processes are carried out in the company's in-house foundry.
Moulding is carried out individually in modular flasks using a resin-bonded sand mould process.
Trunnions, if present, are preferably cast: they are usually made from steel S355 J2G3, but can also be supplied as cast or hot-fitted. Melting is carried out in an oxygen steelworks (two 180-tonne BOF converters); the ladle capacity allows a continuous bottom pouring process with permanently controlled pouring speed. Metal composition analysis is checked using a computer-connected spectrometer.

Heat Treatment
Each casting pot undergoes a composite quality heat treatment (annealing) aimed at grain refinement and stress relief, namely:
- Heating to above AR3 temperature, austenitizing at about 915°C and controlled cooling in the furnace
- Holding between 600°C - 630°C and cooling to 300°C in the furnace for finishing furnace cleaning and trimming

The inner surface is specially treated to completely remove surface defects that may cause slag adhesion. In addition, the castings are shot peened for descaling and the outside is additionally coated for transportation.
The surface quality is derived from the manufacturer's comprehensive practices and meets the requirements of MSS SP-55-1996 (Visual Evaluation Method for Surface Irregularities).

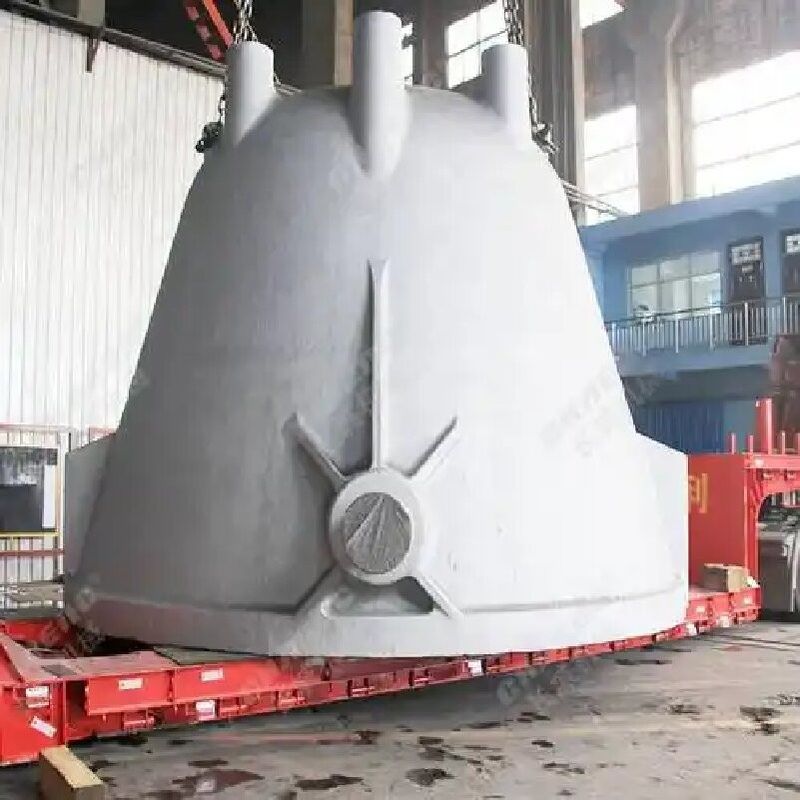

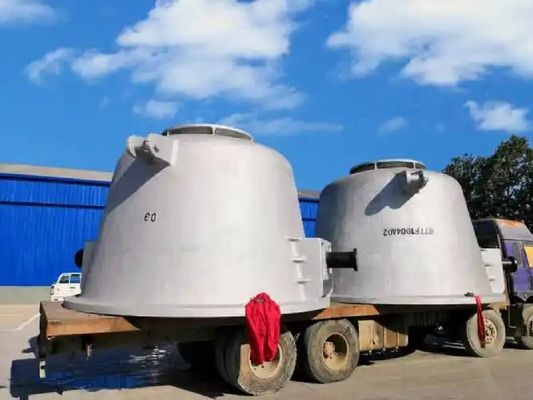

Product Display

Product Parameters

Q&A

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
