Simple Structure Spiral Classifier Reliable Operation Easy-To-Use

Simple Structure Reliable Operation Easy-To-Use Spiral Classifier

Introduction

There are four types of classifiers, high weir type single and double spiral classifier, immersed single and double spiral classifier.

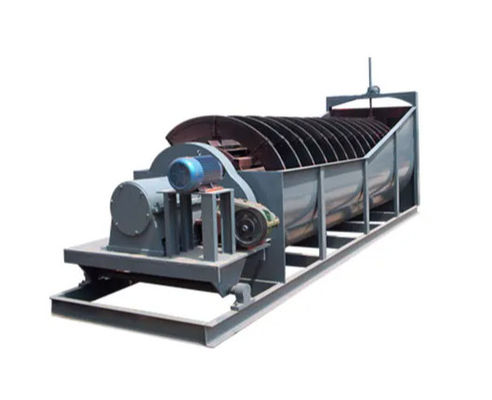

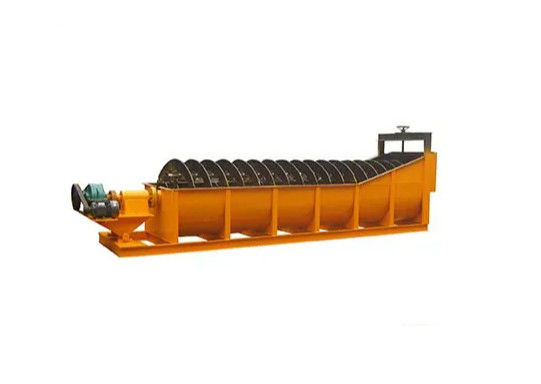

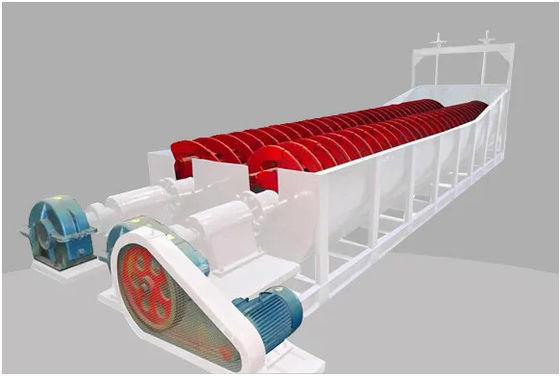

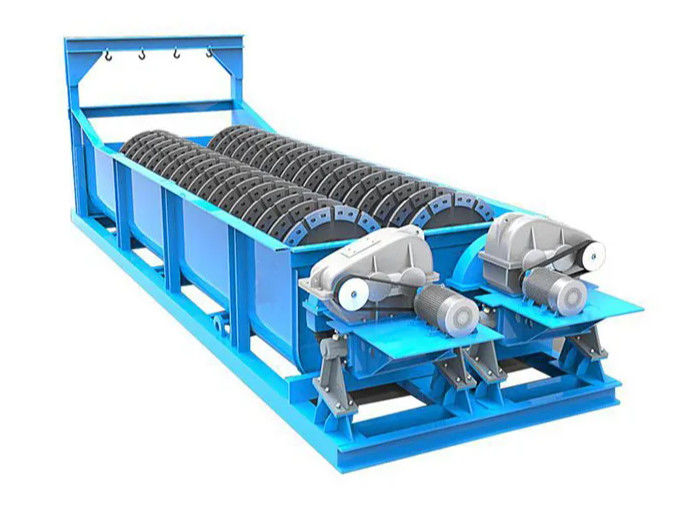

Spiral classifier (Screw classifier) is widely used for distributing ore in the close circuit with ball mill, grading ore and fine slit in the gravity mill, grading granularity in the flow of metal ore-dressing and desliming and dehydrating in the washing. Advantages are simple structure, reliable working condition and convenient operation. According to the principle that different grains are with different specific gravity and sedimentation rate in the liquid, the fine ore flows in the water and the coarse ore sinks in the bottom. The classifier that has machine grading by discharging from the top can filtrate the materials and send coarse materials to the feeding mouth and discharge the fine material from the pipe. The seat of the machine adopts channel steel and body adopts armor plate and the spiral axle adopts cast iron, so it’s durable. The lifting equipment has two types, by electricity and hand.

Spiral classifiers are suitable for

• Separation of fine particles and liquid from coarse particles
• Separation of light particles from heavy particles
• Separation of the particles into a number of products graded according to size
• Separation of liquid from solid particles

Main features

• Adjustable weirs
• Sealed, submerged bearing
• Optional automatic lubrication system
• Rigid tank and substructure
• Wide choice of tank design
• Overflow collection box
• Wide range of industries serviced
• Product parameters of Screw classifier spiral classifier

Product Parameters

Product display

Q&A

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
