Safe And Reliable Environmentally Friendly Vertical Impact Crusher
Product Introduction
The PL series vertical impact crusher is a high-performance sand making equipment that absorbs advanced German technology and is developed and produced.The machine has two forms: "stone stone crusher" and "stone iron crusher". The "stone iron crusher" type has a sand formation rate of 10-20% higher than that of the "stone stone crusher" type.This machine is widely used in fine crushing and coarse grinding operations of metal and non-metallic ores, construction aggregates, cement, refractory materials, abrasives, glass raw materials, artificial sand and gravel materials and various metallurgical slags. It can also be used for the shaping of high-grade road pavement stones.Especially for the crushing of medium-hard, extremely hard and highly abrasive materials such as river pebbles, quartzite, sandstone, basalt, silicon carbide, gold steel sand, sintered bauxite and other materials is more superior than other types of crushers.
Scope Of Application
This series of sand making machines is suitable for crushing and shaping of soft or medium-hard and extremely hard materials. It is widely used in various ores, cement, refractory materials, aluminum clinker, carbide, glass raw materials, mechanical construction sand, stone and various metallurgical slag. It is especially effective for high-hard, extremely hard and wear-resistant materials such as silicon carbide, carbide, sintered bauxite, and granular sand than other types of crushers.
In the engineering field, it is an ideal production equipment for machined sand, cushion material, asphalt concrete and cement concrete aggregate.
In the mining field, it is widely used in the front-end grinding process, which can generate a large amount of powder ore and reduce the high-cost grinding load.
Due to the excellent low wear characteristics of this series of sand making machines, this equipment is also used for high abrasion and secondary disassembly and crushing production.In addition, due to the small pollution to the product, the impact crusher can adapt well to the production of glass quartz sand and other high-purity materials. The production capacity range of 10-500t/h, and the impact crusher can meet almost any production requirements.
PCL direct impact crusher, commonly known as sand making machine.Its performance plays an important role in various ore fine crushing equipment and is an effective, practical and reliable gravel machine.This product is widely used in various industries such as ore, cement, refractory materials, aluminum clinker, emery, glass raw materials, mechanical construction sand, stone and various metallurgical slag.
Structural Characteristics Of Stone Crusher Machine
1. Simple and reasonable structure, self-affecting crushing, and extremely low usage cost;
2. Unique bearing installation and advanced spindle design make this machine have the characteristics of heavy load and high-speed rotation.
3. It has fine crushing and coarse grinding functions;
4. High reliability and strict safety guarantee devices to ensure equipment and personal safety;
5. Smooth operation, low working noise, high efficiency and energy saving, and high crushing efficiency;
6. It is less affected by the moisture content of the material, and the moisture content can reach about 8%;
7. The wearable parts have low losses, and all wearable parts are made of high-quality wear-resistant materials at home and abroad, and have a long service life. A small number of easily worn parts are made of extremely hard and wear-resistant materials, which is small in size, light in weight and easy to replace accessories.
8. The airflow inside the vortex chamber is self-circulating, and the dust pollution is low.
9. The material lining in the impeller and vortex crushing chamber greatly reduces the cost of wear parts and the maintenance workload. During the production process, the stone can form a protective bottom layer, the body is wear-free, and it is durable.
10. Various installation methods and movable installation.
11. The product is cube, with high stacking density and low iron pollution. Can be used as a stone shaping machine.
Product Parameters Of Stone Crusher Machine
| Model |
Maximum Feed Size(mm) |
Impeller Speed(r/min) |
Throughput(t/h) |
Power(kw) |
| PL700 |
45(70) |
1700-2000 |
30-60 |
75-90 |
| PL800 |
55(70) |
1400-1620 |
50-90 |
110-150 |
| PL900 |
65(80) |
1330-1530 |
80-150 |
180-264 |
| PL1050 |
80(100) |
1200-1400 |
150-250 |
264-320 |
| PL1250 |
100(150) |
1000-1100 |
250-500 |
440-500 |

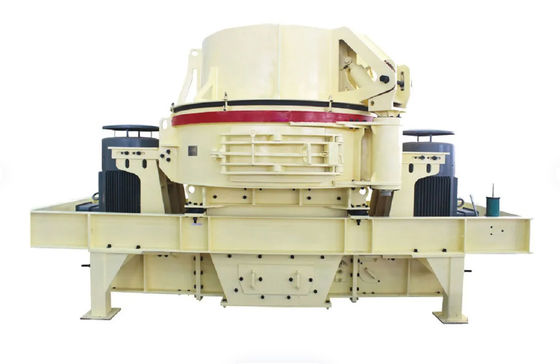

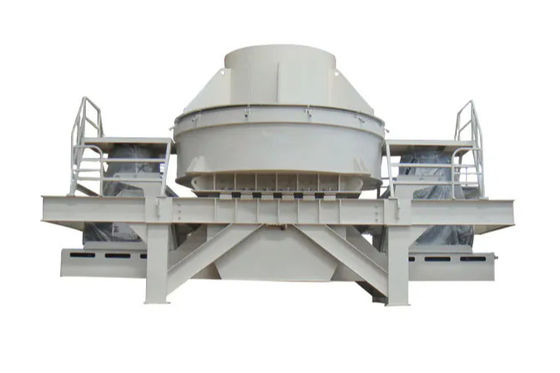

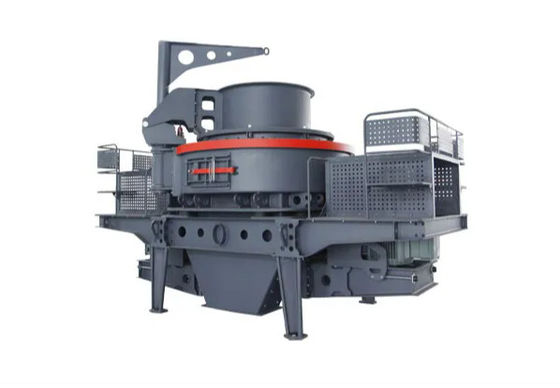

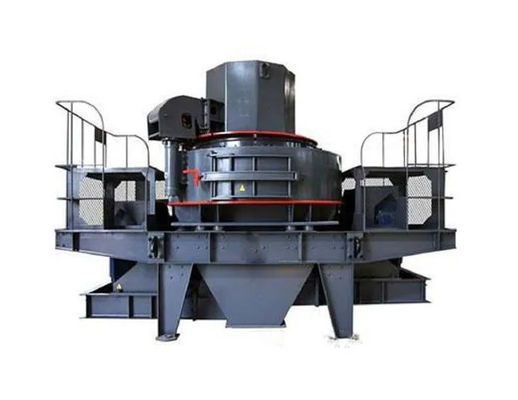

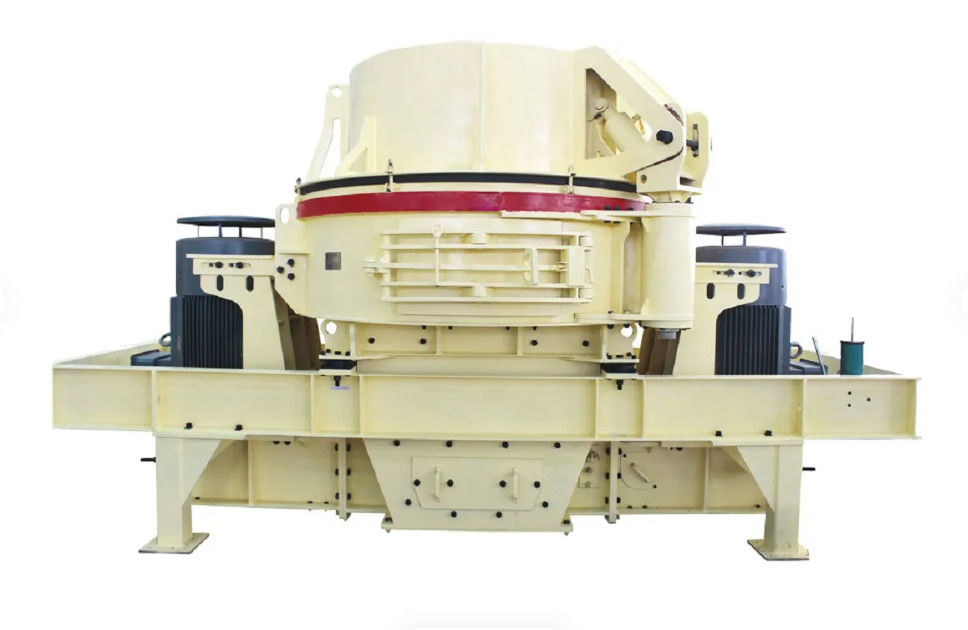

Product Display
Q&A
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
