Product Introduction Of Stone Crusher Machine

Feed particle size: ≤1000mm

Production Capacity: 15-850T/H

Applicable Materials: Granite, limestone, concrete, quicklime, gypsum, ripe lime

Application Field: PF series impact crushers absorb products carefully designed based on advanced domestic and foreign technologies. With their excellent performance and good performance, they are widely used in the production of high-grade highways, hydropower, artificial sand and gravel, crushing, construction and other industries.

This series of products can handle materials with side lengths below 100-500 mm, and its compressive strength can reach up to 350 megapas, which has the advantages of large crushing ratio and the materials appearing in cube particles after crushing.

This product can handle various coarse, medium and fine materials (granite, limestone, concrete, etc.) with a side length of not more than 500mm and a compressive strength of not more than 350MPa. It is widely used in hydropower, highways, artificial sand and gravel, crushing and other industries.

Features and advantages  Of Stone Crusher Machine

★ The impact crusher is evenly crushed in multiple chambers, which is suitable for crushing hard rock;
★ The uniform plate structure makes the discharge material more small particle size and cube-shaped, without internal cracks;
★Low and large feed ports facilitate production line layout and increase feed size;
★ Full hydraulic opening, easy to repair and replace consumable parts;
★ The new wear-resistant materials of the impact crusher make the plate hammer, impact plate and lining plate have a longer service life.

PF series impact crusher Impact crusher Impact crusher is mainly suitable for mining, construction, chemical, electricity, metallurgy and other industries. It crushes ore with a compressive strength of no more than 350 megapas, limestone, slag, coke, coal, etc. The machine is not suitable for crushing ore ore with a surface moisture greater than 8-10% or viscous materials.

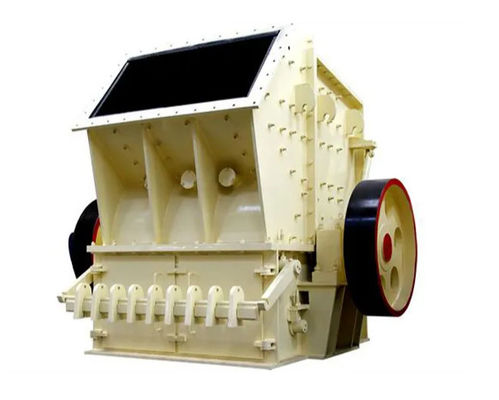

This machine mainly consists of components such as base, middle box, rear rack, rotor, ratchet flap opening device. As shown in Figure 1.


Operating Principle Of Stone Crusher Machine

When the impact crusher is working, the motor drives the rotor through a triangle belt. The material is broken by the high-speed impact of the plate hammer on the rotor and is thrown to the impact elbow plate and broken again. Then it bounces back from the impact surface to the plate hammer action area and breaks again. This process is repeated until the material is broken to the required particle size. The material comes from the first inlet to the first crushing chamber and then enters the second crushing chamber. When the crushed ore particle size is smaller than the gap between the hammer head and the impact plate, it is discharged from the lower part of the machine, which is the crushed product.
This machine uses a self-weight safety device on the rear shelf. When the non-breaking object enters the crushing chamber, the front and rear counterattack frames will retreat and the non-breaking object will be discharged from the body.

Product Parameters

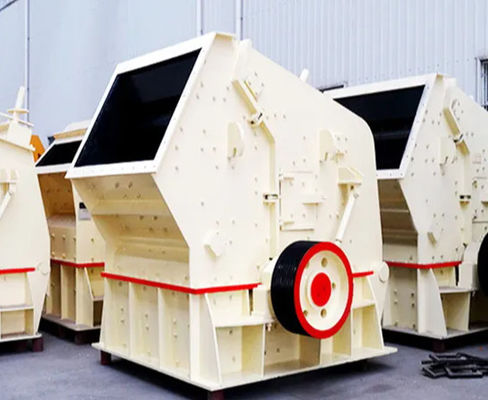

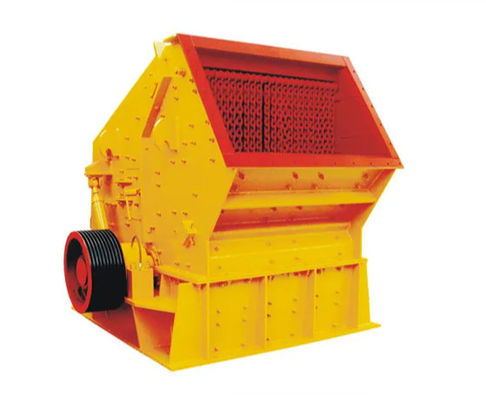

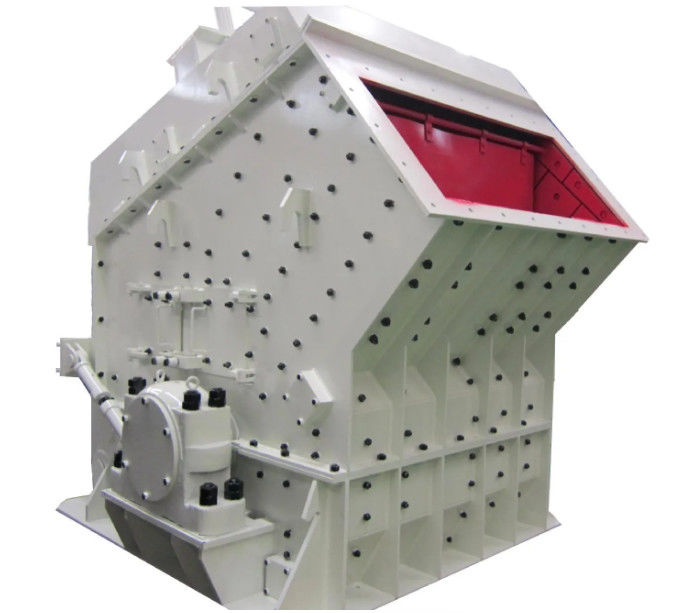

Product Display
