Special Impact Crusher For Coarse And Medium Crushing Of Hard Rock
Product Description Of Stone Crusher Machine
PFQ series vortex strong impact crusher is high efficient impact crusher developed by our company, our company obtained national patent in 2005(patent No.:ZL200420075315.4). This crusher is applied to primary, secondary and fine crushing of a variety of materials with compression strength not more than 250Mpa. It has the features of unique structure, easy operation, high-efficiency and saving energy, good product shape-cubic like, adjustable discharge size, simplifying crushing process, saving cost etc. It can be widely used in electricity, water, highway artificial aggregate crushing industry and so on. Structural design has a unique scroll broken cavity and P, S, T broken three areas, the use of rotor body sleeve keyless connection, high-performance wear-resistant plate hammer, insert the installation of forms, tilt chock unique profile counterattack lining board, multi-directional rack to open the door, screw or hydraulic device to open the replacement of wearing parts, maintenance more convenient. The large type machine also has special tool about changing and lifting blow bar for users to choose.
Application Range
This equipment features large feed size and high compressive strength, widely applicable to various industries including cement, building materials, mining, and power for coarse and medium crushing operations of materials with compressive strength not exceeding 250Mpa. It is particularly suitable for producing construction aggregates used in special industries such as highways, railways, and water conservancy projects, including materials like basalt, granite, and river pebbles.
Product Structure Of Stone Crusher Machine
- Upper frame (left and right) forming the vortex crushing cavity and P crushing zone
- Lower frame
- Rotor unit
- First adjustment unit (S crushing zone)
- Second adjustment unit (T crushing zone)
- Transmission unit
Working Principle
The motor drives the rotor to operate at high speed through V-belts. Materials enter the crusher cavity from the feed inlet, struck by the high-speed rotating rotor hammers, and then rebound freely after impacting the toothed impact plate at the top of the vortex crushing cavity. They continuously collide and crush with subsequent upward-impacting materials. Large blocks and materials not fully crushed are subjected to enormous pressure and bending force under the action of the thick toothed plate and hammer in the P crushing cavity top, easily coarsely crushed and then entering the lower S crushing cavity.
In the S crushing cavity, the gap between the toothed liner and rotor hammer plate is small, where materials undergo friction impact, breaking, and extrusion to achieve medium crushing, entering the T crushing cavity for fine crushing. The gap between the toothed liner and rotor hammer plate in the T crushing cavity is even smaller, allowing materials to undergo further fine crushing through friction impact, breaking, and extrusion before being discharged.
The gap between the toothed liner and rotor hammer plate in the S and T crushing cavities can be adjusted according to users' requirements for different material particle sizes. The T crushing cavity is equipped with an elastic device. When uncrushable materials enter the T crushing cavity, the elastic device provides buffering and allows the discharge opening to enlarge, expelling uncrushable materials. After discharge, the opening returns to its original size under elastic force.
Structural Features
- Unique vortex crushing cavity and curved three-cavity crushing design
- Easily adjustable gap between toothed liner and hammer plate in medium and fine crushing cavities for effective control of discharge particle size
- High-wear-resistant hammer plates with insert installation
- Multi-directional opening of the frame, and screw or hydraulic opening device on the rear upper box frame for easy replacement of wearing parts and maintenance
Product Parameters
|
| Specification |
Max. Feed Size
(mm)
|
Discharge Size
(mm)
|
Capacity
(t/h)
|
Power
(kw)
|
Outline Dimension
(mm)
|
| ＜150MPa |
＜250MPa |
| PFQ0808 |
200 |
150 |
-25(80-90%) |
～46 |
55 |
1900×1860×2150 |
| PFQ1108 |
300 |
180 |
-30(80-90%) |
～80 |
75 |
2845×2000×2265 |
| PFQ1110 |
400 |
200 |
-35(80-90%) |
～110 |
110 |
2845×2250×2262 |
| PFQ1113 |
400 |
200 |
-40(80-90%) |
～150 |
132 |
2845×2420×2265 |
| PFQ1310 |
500 |
250 |
-40(80-90%) |
～180 |
160 |
3050×2120×2900 |
| PFQ1313 |
500 |
250 |
-40(80-90%) |
～225 |
200 |
3050×2420×2900 |
| PFQ1315 |
600 |
300 |
-50(80-90%) |
～280 |
250 |
3050×2675×2900 |
| PFQ1320 |
600 |
300 |
-50(80-90%) |
～350 |
|
|
|

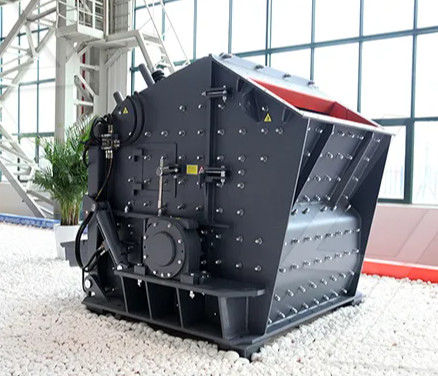

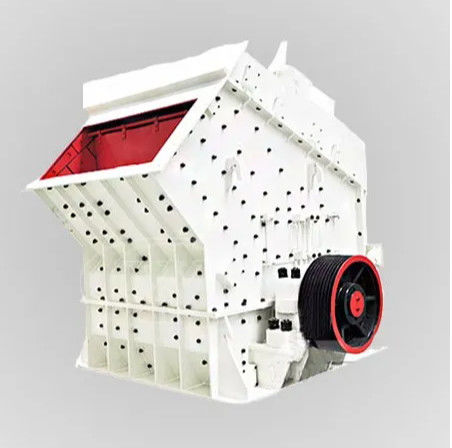

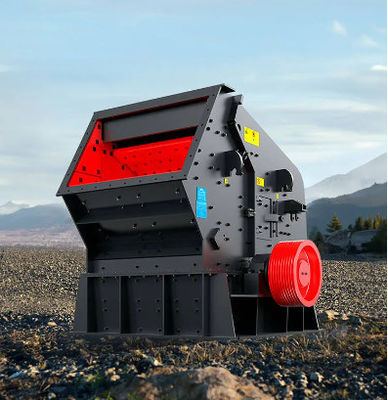

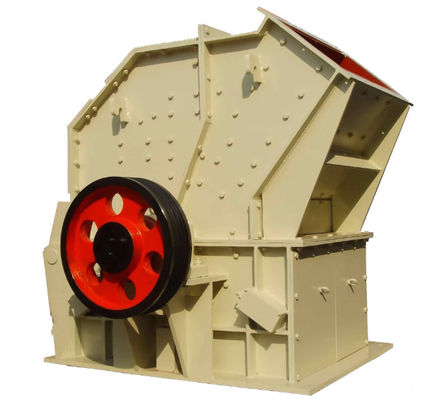

Product Display
