Large Single Cylinder Cone Crusher High Yield Crushing Capacity

Large Image : Large Single Cylinder Cone Crusher High Yield Crushing Capacity

Product Details:

Place of Origin:	Henna, China
Brand Name:	ZTIC
Certification:	IOS/CE
Model Number:	Stone Crusher Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set/sets
Price:	negotiate
Payment Terms:	L/C, T/T
Supply Ability:	5000 Set/Sets per Year

Contact Now

Detailed Product Description

Product:	Cone Crusher	Name:	DP Single Cylinder Hydraulic Cone Crusher
Model:	DP100S	Weight:	7350 -49800 (kg)
Motor Power:	90-500 (kW)	Maximum Maintenance Weight (kg):	2800-13200
Classification:	Stone Crusher Machine	Warranty:	12 Months
Highlight:	Single Cylinder Cone Crusher , Large Cone Crusher , High Yield Capacity Cone Crusher

High Yield Crushing Capacity Large Single Cylinder Cone Crusher

Overview

Production Capacity: ≤500T/H
Feed Size: ≤380mm
Applicable Materials: Iron ore, copper ore, quartz, granite, basalt, diabase
Application Fields: Metallurgical industry, construction industry, road construction industry, chemical industry, and phosphate industry.

Product Introduction Of Stone Crusher Machine

The DP single-cylinder cone crusher is a crushing equipment used for mineral fine crushing operations. It is respectively used for coarse crushing, medium crushing, and fine crushing. It can crush materials to the required particle size range and meet customers' production capacity requirements.

Product Advantages Of Stone Crusher Machine

Uniform particle shape and high output
Strong crushing capacity
Continuous and stable operation, with automatic overload protection against iron impurities
Rotating feeding device ensures even wear of liners

Working Principle Of Stone Crusher Machine

When the cone crusher is working, the rotation of the motor is transmitted through the pulley or coupling to the drive shaft of the cone crusher. The cone part of the crusher swings around a fixed point under the force of the eccentric sleeve. This causes the crushing wall of the cone crusher to periodically approach and move away from the surface of the crushing wall fixed on the adjusting sleeve, continuously impacting, compressing and bending the ore in the crushing chamber to achieve crushing. The motor drives the eccentric sleeve through bevel gears, making the crushing cone swing. The crushing cone periodically approaches and moves away from the fixed cone, completing the crushing and discharge process.

Product Parameters

Model	DP100S	DP100	DP430S	DP430	DP440S	DP440	DP660S	DP660	DP870
Weight (kg)	7350	5700	12000	9200	19300	14300	35700	26800	49800
Maximum maintenance weight (kg)	2800	2000	5200	3000	8200	4800	16800	8600	13200
Motor power (kW)	90	90	132	132	220	220	315	315	500

Model l	Cavity type	Maximum feeding size (mm)	Discharge port (CSS) corresponding output (t/h)
Model l	Cavity type	Maximum feeding size (mm)	6mm	8mm	10mm	13mm	16mm	19mm	22mm	25mm	32mm	38mm	44mm	51mm	57mm	64mm	71mm
DP100	M	105			55-60	60-85	65-95	70-100	75-90
	MF	85		45-50	50-70	55-80	60-85	65-90	65-80
	EF	32	40-55	40-60	45-70	55-75	60-75	65
DP430	EC	185				69-108	75-150	80-161	86-171	91-182	104-208/	115-208
	C	145				66-131	71-142	76-152	81-162	86-173	98-197	109-150
	MC	115			57	62-140	67-151	72-162	77-173	82-184	93-145
	M	90			64-84	69-131	75-142	80-152	86-162	91-154	104
	MF	75		61	65-106	70-115	76-124	81-126	87-114	92
	F	50	48-78	51-83	54--88	59-96	63-103	68-105	72-95	77
	EF	35	70-90 80% of them are smaller than 5mm-5.6mm
DP440	EC	215					114-200	122-276	131-294	139-313	159-357	175-395	192-384
	C	175				101	109-218	117-292	125-312	133-332	151-378	167-335	183-229
	MC	140				97-122	105-262	113-282	120-301	128-320	146-328	161-242
	M	110				117-187	126-278	136-298	145-318	154-339	175-281	194
	MF	85			114	124-227	134-245	144-263	153-281	163-299	186-248
	F	70		90-135	96-176	104-191	112-206	120-221	129-236	137-251	156-208
	EF	38	100-125 80% of them are smaller than 6mm-7.5mm
DP660	EC	270					177	190-338	203-436	216-464	246-547	272-605	298-662	328-511
	CX	235					174-194	187-374	200-488	212-519	242-592	268-654	293-521	323-359
	C	215					171-190	184-367	196-480	209-510	238-582	263-643	288-512	317-353
	MC	175					162-253	174-426	186-455	198-484	226-552	249-499	273-364
	M	135					197-295	211-440	226-470	240-500	274-502	302-403
	MF	115				192	207-369	222-396	237-423	252-450	287-451	318-363
	F	90				195-304	210-328	225-352	241-376	256-400	292-401	323
	EF	65				211-293	227-316	244-298	261-290
DP870	EC	300							448-588	477-849	544-968	601-1070	658-1172	725-1291	782-1393	849-1512	906-1331
	C	240						406	433-636	461-893	525-1018	581-1125	636-1232	700-1357	756-1464	820-1461	876-1286
	MC	195						380-440	406-723	432-837	492-954	544-1055	596-1155	657-1272	708-1373	769-1370	821-1206
	M	155						400-563	428-786	455-836	519-953	573-1054	628-1154	692-1271	746-1372	810-1248	865-1098
	MF	100					379-424	407-716	434-765	462-814	527-928	852-942	638-789	702
	F	90				357-395	385-656	414-704	442-752	470-800	535-912	592-857	649-718
	EF	80			280-405	304-517	328-558	352-598	376-639	400-680	455-775	503-758	551-669

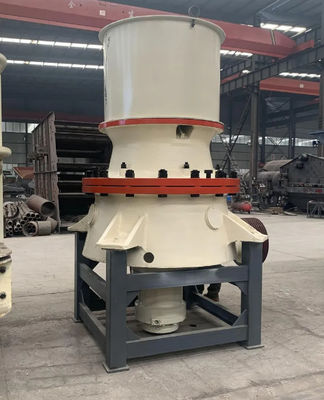

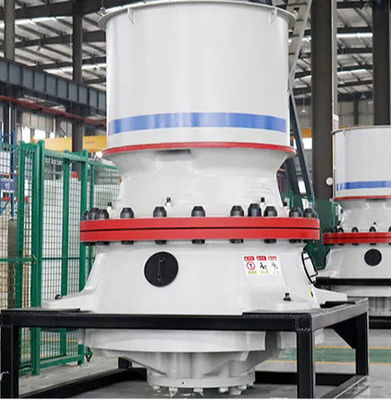

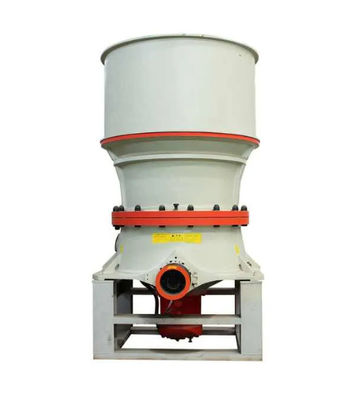

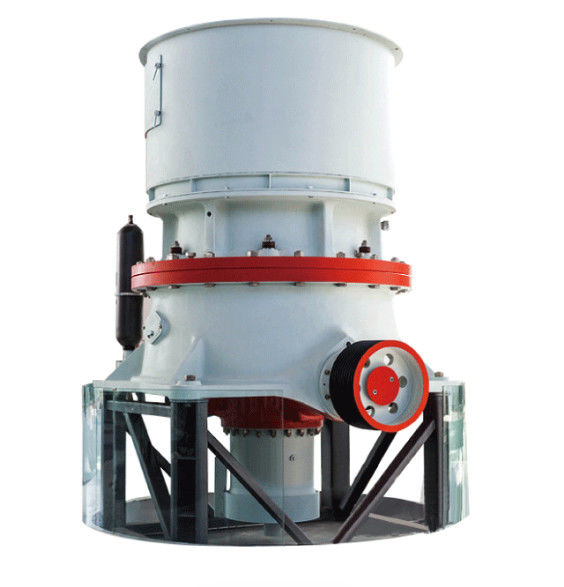

Product Display

Large Single Cylinder Cone Crusher High Yield Crushing Capacity 0

LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.

Q&A

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
