High Crushing Ratio Vertical Compound Crusher Low Energy Consumption

High Crushing Ratio Vertical Compound Crusher Low Energy Consumption
High Crushing Ratio Vertical Compound Crusher Low Energy Consumption High Crushing Ratio Vertical Compound Crusher Low Energy Consumption High Crushing Ratio Vertical Compound Crusher Low Energy Consumption High Crushing Ratio Vertical Compound Crusher Low Energy Consumption

Large Image :  High Crushing Ratio Vertical Compound Crusher Low Energy Consumption

Product Details:
Place of Origin: Henan, China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: Vertical Compound Crusher Stone Crusher Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: negotiate
Payment Terms: L/C, T/T
Supply Ability: 5000 Set/Sets per Year
Contact Now
Detailed Product Description
Product Name: Vertical Compound Crusher Condition: New
Maximum Feed Size: 220 Mm Type: Stone Crusher Machine
Application: Stones And Bulk Materials Capacity: 10-160 T/h
Uasge: Building Materials, Chemical Power(kw): 30-185
Warranty: 12 Months
Highlight:

Low Energy Consumption Compound Crusher

,

Vertical Compound Crusher

,

High Crushing Ratio Compound Crusher

High Crushing Ratio Low Energy Consumption Vertical Compound Crusher



Working Principle

The machine mainly consists of components such as frame, rotor, hammerhead, lining plate, feed inlet, and discharge outlet. The motor drives the rotor through a V-belt, making the hammerhead fixed on the rotor operate at high speed. This enables sufficient impact between materials and hammerheads, as well as the inner wall lining plates, thereby crushing the materials in the crushing chamber. It is also suitable for crushing other medium-hard ores such as iron ore, sandstone, gypsum, blast furnace slag, and lump coal.

Structural Features

The machine mainly consists of components such as frame, rotor, hammerhead, lining plate, feed inlet, and discharge outlet.
Product features
  •  High crushing ratio
  •  Low energy consumption
  • Stable operation
  • Simple structure
  •  Convenient operation and maintenance



Product Parameter

Model Cylinder Diameter(mm) Productivity(t/h) Feed Size(mm) Discharge Size(mm) Power(kw) Dimensions (L×W×H)(mm)
PFL-750 750 10-20 <100 <3-5 60-90% 30-45 2100×1200×1700
PFL-1000 1000 20-40 <120 <3-5 60-90% 55 2600×1400×1900
PFL-1250 1250 40-70 <150 <3-5 60-90% 90 2800×1600×2100
PFL-1500 1500 70-100 <180 <3-5 60-90% 132 3100×1900×2200
PFL-1750 1750 90-130 <200 <3-5 60-90% 160 3710×2360×2390
PFL-2000 2000 100-160 <220 <3-5 60-90% 185 4100×2660×2620

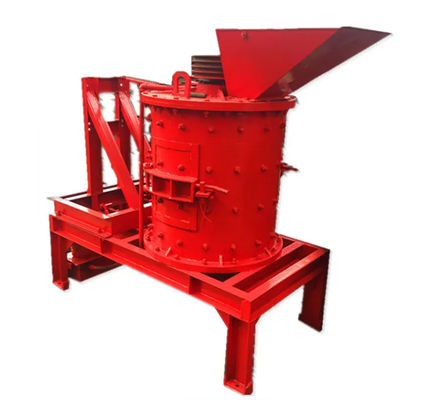

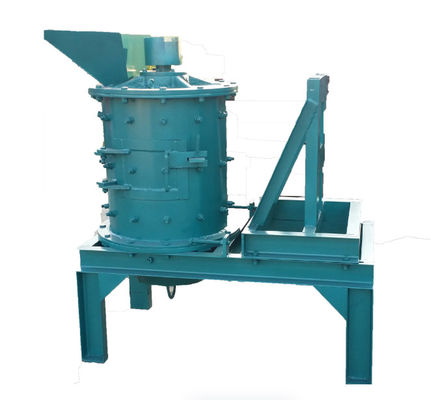

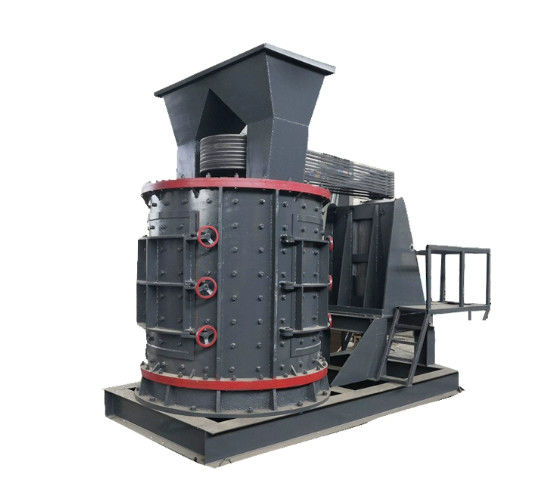

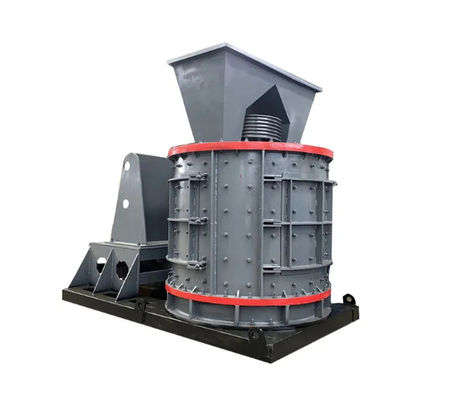

Product Display

High Crushing Ratio Vertical Compound Crusher Low Energy Consumption 0

High Crushing Ratio Vertical Compound Crusher Low Energy Consumption 1

LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.



Q&A



Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
