Mobile Crushing Stations For Expressways Railways Metallurgy Mining
Basic Introduction Of Stone Crusher Machine
The Mobile Crushing Screening Station is mainly used for processing materials in metallurgy, chemical, building materials, hydropower and other industries that frequently require relocation operations, especially for processing mobile stone materials in highway, railway, hydropower and other projects. Users can, according to the type of raw materials to be processed, Different scales and requirements for finished materials adopt various configuration forms. This set of crushing and screening equipment can be used in industries such as mining, building materials, highways, railways, and water conservancy to complete crushing and screening operations at one time, and produce the required particle size and output of materials by users. This mobile crushing and screening set of equipment consists of a primary crushing station, a secondary crushing and screening station, a belt conveyor, etc. Each stage of the crushing station is an independent working unit, capable of independently fulfilling its different responsibilities. The belt conveyor is responsible for the material transportation and stacking between the crushing stations. The mobile crushing and screening stations are complete in variety and serialized in specifications. There is a wide range of choices for mobile crushing and screening stations, which can meet the needs of the majority of users.
Equipment Characteristics Of Stone Crusher Machine
The mobile crushing station features a reasonable matching of crushing equipment at all levels, smooth discharge throughout the entire production line, reliable operation, convenient operation, and high efficiency and energy conservation. Especially, it has good mobility and can be extended along with the raw material site or construction site, and can be combined in various ways to meet different material requirements.
1. Strong mobility: The mobile tire crushing station is short in length. Different crushing equipment is respectively installed on independent mobile chassis, with a short wheelbase and a small turning radius, allowing it to travel flexibly on ordinary roads and within the operation area.
2. Integrated complete set of units: The integrated unit equipment installation form eliminates the complex site infrastructure installation operations of split components, reducing material and labor consumption. The reasonable and compact spatial layout of the unit has enhanced the flexibility of site deployment.
3. Reduce material transportation costs: The mobile crushing station can process materials on-site without having to move the materials away for further processing, significantly reducing the transportation costs of materials.
4. Direct and effective operation: The integrated series of mobile crushing stations can be used independently or provide more flexible process configurations based on the types of materials and product requirements in the process for customers, meeting various requirements such as mobile crushing and mobile screening for users. This makes the production organization and logistics transfer more direct and effective, and minimates costs to the greatest extent.
5. Flexible combination and strong adaptability: The mobile tire crushing station can be combined into a "crush first, then screen" process according to different crushing process requirements, or it can be combined into a "screen first, then crush" process. The crushing station can be combined into a two-stage crushing and screening system of coarse crushing and fine crushing according to actual needs, or into a three-stage crushing and screening system of coarse crushing, medium crushing and fine crushing. It can also operate independently, providing great flexibility.
Mobile Primary Jaw Crusher
| Technical Data//Model | LYCJ69 | LYCJ750 | LYCJ912 | LYCJ860 | LYCJ1100 | | Transportation size(mm) | 11900×2550×3650 | 13500×2550×4300 | 15200×2950×4450 | 14600×2750×4350 | 15200×2800×4900 | | Weight(t) | 35 | 52 | 80 | 59 | 85 | | Tire Configuration | Dualaxial | Triaxial | Triaxial | Triaxial | Triaxial | | Jaw Crusher | PE600×900 | PE750×1060 | PE900×1200 | PEW860 | PEW1100 | | The Maximum Feeding Size(mm) | 480 | 630 | 750 | 730 | 940 | | Discharge Opening Size(mm) | 65~160 | 80~140 | 100~200 | 75~225 | 150~275 | | Capacity(t/h) | 90~180 | 110~320 | 220~450 | 150~500 | 300~650 | | Vibrating Feeder | GZD960×3800 | GZD1100×4200 | GZD1300×4900 | GZD1300×4900 | GZD1300×4900 | | Main Belt Conveyor | B800×8.5M | B1000×9M | B1200×9.5M | B1200×9.5M | B1200×9.5M | | Side Belt Conveyor (optional) | B450×3M | B500×3.5M | B650×4M | B650×4M | B650×4M | | Electric control | standard | control box control panel | control box control panel | control box control panel | control box control panel | control box control panel | | optional | Control box LCD | Control box LCD | Control box LCD | Control box LCD | Control box LCD | | Hydraulic leg | standard | 4 | 4 | 4 | 4 | 4 | | optional | 2 | 2 | 2 | 2 | 2 | | Hydraulic cylinder | standard | 4 | 4 | 4 | 4 | 4 | | optional | 5 | 5 | 5 | 5 | 5 | | Genset (optional)(Kw) | 180 | 250 | 250 | 270 | 380 | | Iron Separator (optional) (Kw) | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-12 | RCYD(C)-12 | RCYD(C)-12 |
|

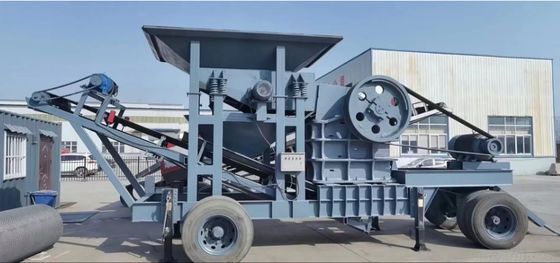

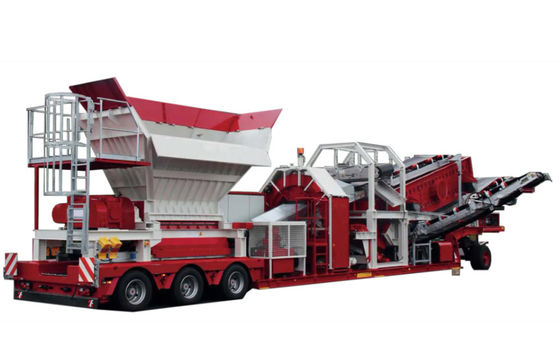

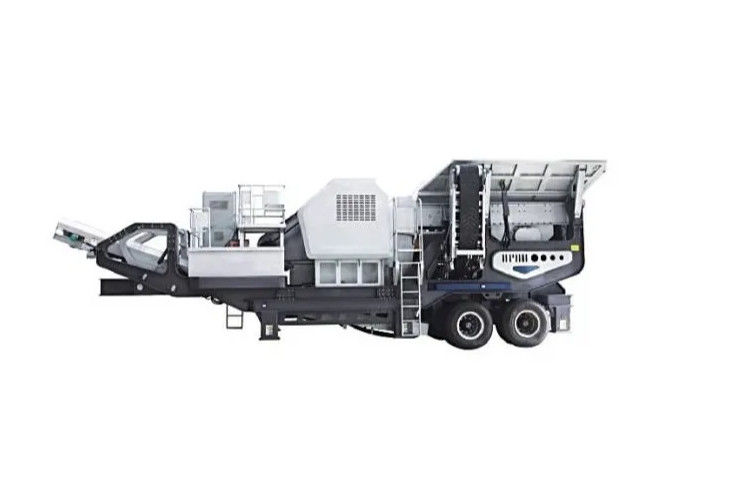

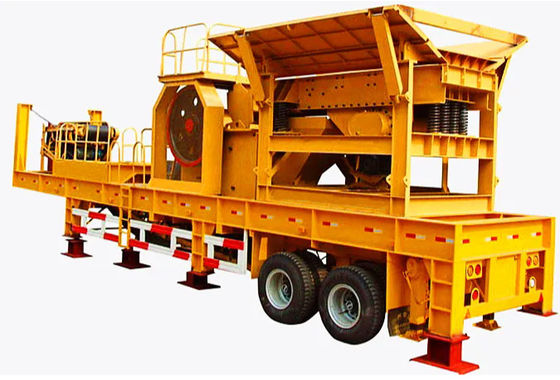

Stone crusher machine photo explanation
Q&A
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
