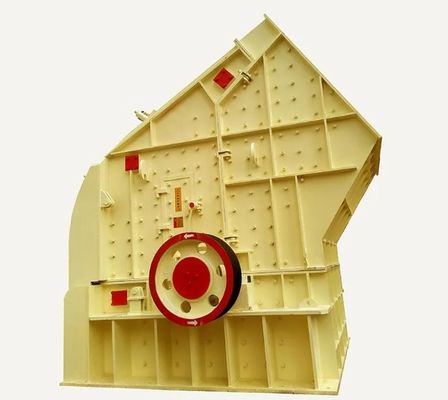

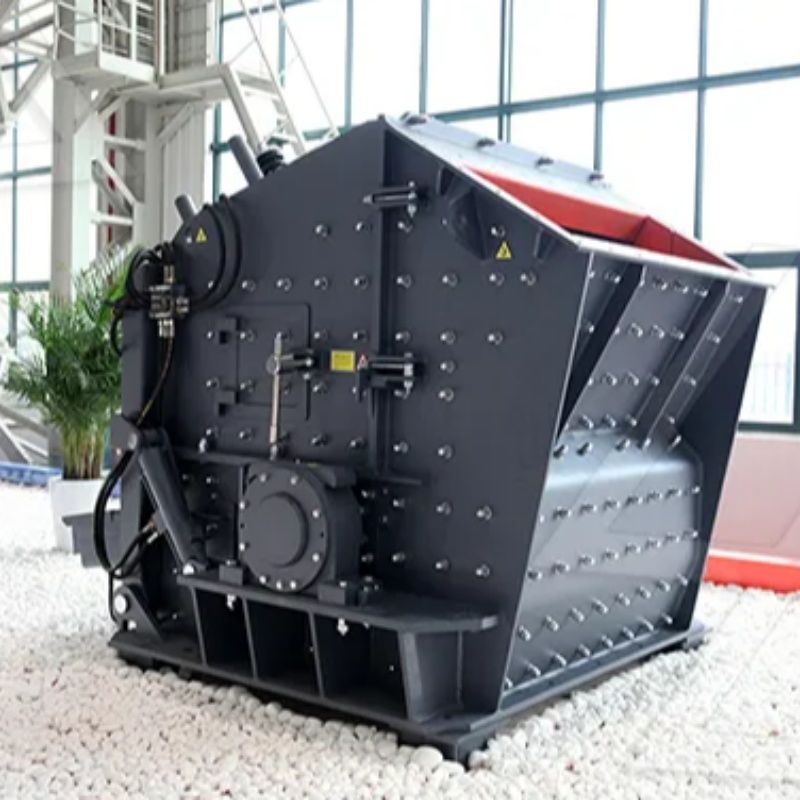

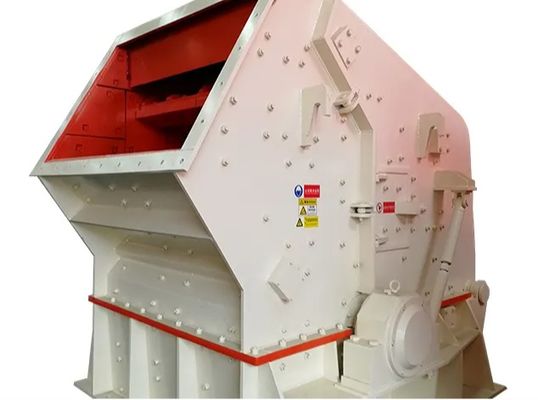

Impact Crusher With Large Feed Particle Size And High Compressive Strength

Impact Crusher With Large Feed Particle Size And High Compressive Strength

The PFQ series of powerful vortex impact crushers is a highly efficient crushing equipment, suitable for coarse, medium and fine crushing operations of various materials with a compressive strength not exceeding 250MPa.

The working principle Of Stone crusher machine

This machine is mainly composed of the vortex crushing chamber and the P section crushing area formed by the upper frame (left and right), the lower frame, the rotor section, the first adjustment section (S crushing section), the second adjustment section (T crushing section) and the transmission section.
The motor is driven by a V-belt to rotate the rotor at high speed. Materials enter the crusher cavity from the feeding port and are struck by the high-speed rotating rotor plate hammers. After being impacted by the toothed impact plate at the top of the vortex crushing cavity, they rebound and fall freely, constantly colliding and crushing with the materials that are subsequently impacted upwards. The huge pressure and bending force generated by the thick-toothed plate and the plate hammer at the top of the P crushing chamber cause the large pieces and materials that are not fully crushed. Even the materials that are very difficult to crush can be roughly crushed and enter the next S crushing chamber.
The gap between the toothed liner in the S crushing chamber and the rotor hammer plate is relatively small. The material is subjected to friction, impact, breakage and compression here to obtain medium crushing and then enters the T crushing chamber for fine crushing.
The gap between the toothed liner plate of the T crushing chamber and the rotor hammer plate is smaller. The material is further crushed by friction, impact, breakage and compression, and then discharged outside the machine.
The gap between the toothed liners of the S and T crushing chambers and the rotor hammer plates can be adjusted according to the user's requirements for the particle size of different materials. The T-shaped crushing chamber is equipped with an elastic device. When unbreakable materials enter the T-shaped crushing chamber, the elastic device has a retracting and buffering effect, increasing the size of the discharge port and allowing the unbreakable materials to be discharged outside the machine. When the unbreakable material is discharged, under the elastic effect, the discharge port returns to its original size.

Structural features Of Stone crusher machine

In terms of structural design, a unique vortex crushing chamber and curved three-chamber crushing are adopted. The gap between the toothed liner and the hammer in the medium and fine crushing cavity can be conveniently adjusted to effectively control the particle size of the output. High wear-resistant plate hammer, insertable installation form; The multi-directional door opening of the frame and the rear upper box frame lead screw or hydraulic opening device make the replacement of vulnerable parts and maintenance more convenient.
Performance characteristics
High-efficiency crushing: It features a large vortex crushing chamber and three-stage crushing zones, ensuring high crushing efficiency and large production capacity.
Excellent particle shape: The product is cubic in shape, with uniform particle shape, meeting the standards for building materials.
Easy to maintain: The structure design is reasonable, with multi-directional doors, making it convenient to replace vulnerable parts and carry out maintenance.
Energy conservation and environmental protection: Low energy consumption, high output, and in line with environmental protection requirements.


Stone crusher machine product parameters


Photo Explanation

FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time
A: parts lead time 1-2months, machines 2-3months.

Q:Payment terms
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping

Q: Quality warranty?
A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: we can supply technical guide for machines running test and parts maintenance if end user needs.
