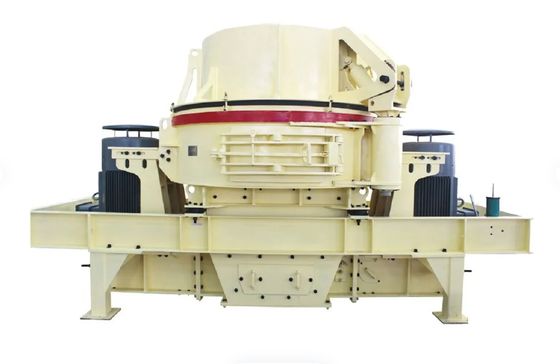

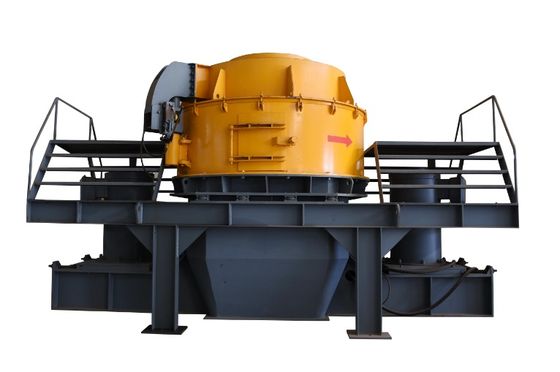

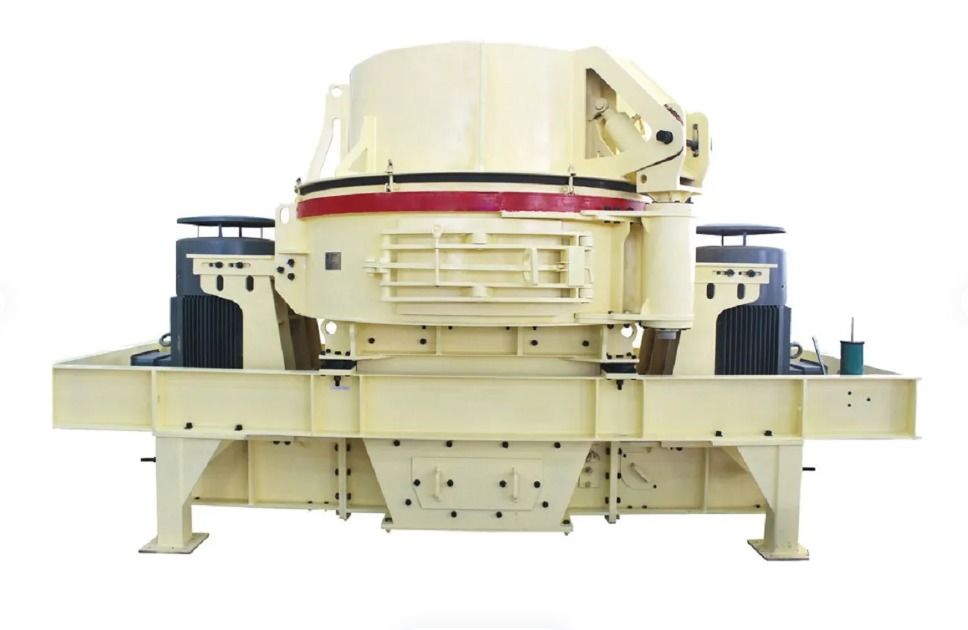

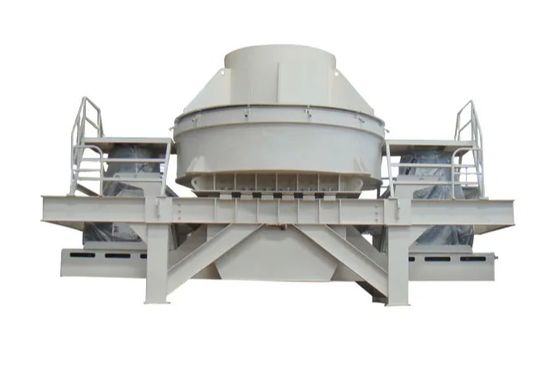

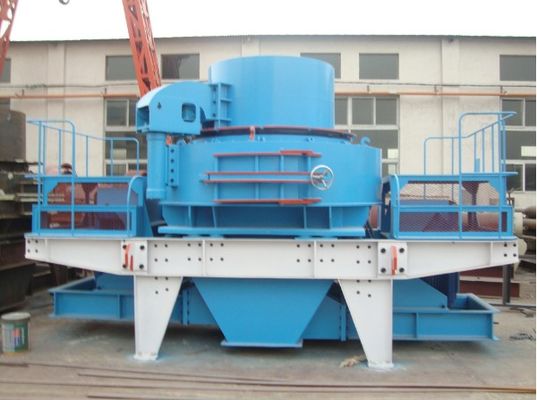

VSI Molding Sand Crusher With Low Energy Consumption And High Output

Feature

• Structure is simple to install, easy maintenance, low running costs
• It has novel and unique structure and stable operation.
• This machine is low in energy consumption, high in output and big in crushing ratio.
• The equipment is small in size, simple and easy in operation and convenient in installation and maintenance.
• It has the function of reshaping, and the final products are in the shape of cube and big in stacking density.
• During the production process, the stone materials can form a protective basement, so that the machine has no abrasion and is durable in use.
• The few easy-wearing spare parts are made of super-hard wear-resisting materials, so that the machine is small in size, light in weight and convenient in spare part changing.

Working principle Of Stone Crusher Machine

The materials go into the crusher from the feed hopper and are separated into two parts by the distributor. One part goes into the impeller rotating with high speed from the middle of the distributor, and is quickened inside the impeller, and the acceleration can reach hundred times of the acceleration of gravity, and then the materials will cast from the three uniformly distributed runners of the impeller at a speed of 60-70m/s, and impact and crush with the other part of materials which fall from around the distributor and then they will together impact to the material lining inside the vortex cavity. Bounced from the material lining, the materials will impact obliquely upward to the top of the whirling motion chamber which will change their movement direction again, so that materials will move down, and the materials launching from the runners of the impeller will form a continuous material curtain. In this way, the materials will get two times or more hitting, friction, grinding and crushing effect inside the whirling motion crushing chamber. The crushed materials will be discharged from the bottom discharging mouth. This process will form a closed-circuit system together with the cyclic screening system and generally speaking, after three times of cycle, the materials will be crushed below 20Moh.

In the whole crushing process, the materials impact and crush with each other without directly contacting the metal spare parts, and just impact and grind with the material lining to be crushed, thus extending the abrasion time of the machine. The ingenious airflow self cycle inside the whirling motion chamber eliminates powder dust pollution

Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience.

2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.

3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time:

A: Parts lead time 1-2months, machines 2-3months.

Q: Quality warranty?

A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?

A: We can supply technical guide for machines running test and parts maintenance if end user needs.

Aftersales service
ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES

4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
