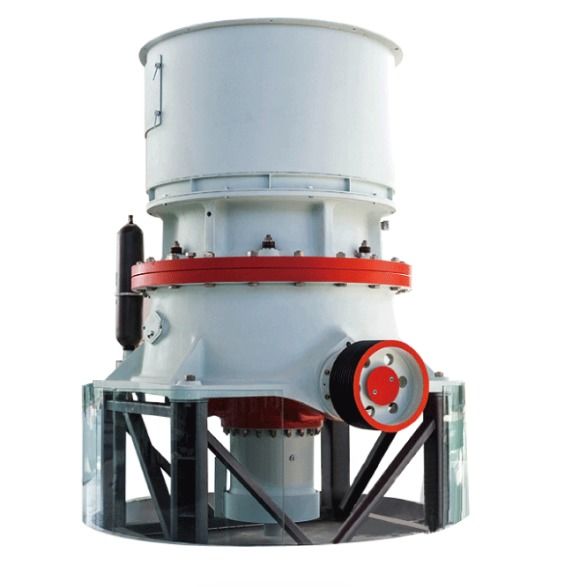

DP Single-Cylinder Cone Crusher For Mineral Fine Crushing Operation
The DP single-cylinder cone crusher is a highly efficient crushing equipment integrating mechanics, hydraulics, electricity, automation and intelligent control. It is widely used in medium, fine and ultra-fine crushing operations in industries such as metal and non-metallic minerals, cement, sand and gravel, and metallurgy.
Working principle
Under the drive of the eccentric sleeve, the moving cone of the cone crusher performs a rotary pendulum motion, driving the crushing wall to squeeze and roll the material between it and the mortar wall. According to the lamination theory, the material is subjected to forces from multiple directions, crushed and ground according to its own texture, forming stable stone particles. Those that meet the discharge requirements fall from the rotary pendulum gap of the crushing wall, while the rest of the material continues to be crushed until the requirements are met.
Application scope
It is widely used in numerous sectors such as mining, metallurgy, building materials, highways, railways, water conservancy and chemistry, and is suitable for medium and fine crushing operations.
Product advantages
The particle shape is uniform and the output is high
It has a large crushing capacity
Continuous and stable operation, and automatic overload protection to prevent iron from being mixed in
The rotating feeding device ensures uniform wear of the liner
Product parameters of DP single cylinder hydraulic cone crusher stone crusher machine
| Model |
DP100S |
DP100 |
DP430S |
DP430 |
DP440S |
DP440 |
DP660S |
DP660 |
DP870 |
| Weight (kg) |
7350 |
5700 |
12000 |
9200 |
19300 |
14300 |
35700 |
26800 |
49800 |
Maximum maintenance weight
(kg) |
2800 |
2000 |
5200 |
3000 |
8200 |
4800 |
16800 |
8600 |
13200 |
Motor power
(kW) |
90 |
90 |
132 |
132 |
220 |
220 |
315 |
315 |
500 |
| Model l |
Cavity type |
Maximum feeding size
(mm) |
Discharge port (CSS) corresponding output (t/h) |
| 6mm |
8mm |
10mm |
13mm |
16mm |
19mm |
22mm |
25mm |
32mm |
38mm |
44mm |
51mm |
57mm |
64mm |
71mm |
DP100 |
M |
105 |
|
|
55-60 |
60-85 |
65-95 |
70-100 |
75-90 |
|
|
|
|
|
|
|
|
| MF |
85 |
|
45-50 |
50-70 |
55-80 |
60-85 |
65-90 |
65-80 |
|
|
|
|
|
|
|
|
| EF |
32 |
40-55 |
40-60 |
45-70 |
55-75 |
60-75 |
65 |
|
|
|
|
|
|
|
|
|
DP430 |
EC |
185 |
|
|
|
69-108 |
75-150 |
80-161 |
86-171 |
91-182 |
104-208/ |
115-208 |
|
|
|
|
|
| C |
145 |
|
|
|
66-131 |
71-142 |
76-152 |
81-162 |
86-173 |
98-197 |
109-150 |
|
|
|
|
|
| MC |
115 |
|
|
57 |
62-140 |
67-151 |
72-162 |
77-173 |
82-184 |
93-145 |
|
|
|
|
|
|
| M |
90 |
|
|
64-84 |
69-131 |
75-142 |
80-152 |
86-162 |
91-154 |
104 |
|
|
|
|
|
|
| MF |
75 |
|
61 |
65-106 |
70-115 |
76-124 |
81-126 |
87-114 |
92 |
|
|
|
|
|
|
|
| F |
50 |
48-78 |
51-83 |
54--88 |
59-96 |
63-103 |
68-105 |
72-95 |
77 |
|
|
|
|
|
|
|
| EF |
35 |
70-90 80% of them are smaller than 5mm-5.6mm |
DP440 |
EC |
215 |
|
|
|
|
114-200 |
122-276 |
131-294 |
139-313 |
159-357 |
175-395 |
192-384 |
|
|
|
|
| C |
175 |
|
|
|
101 |
109-218 |
117-292 |
125-312 |
133-332 |
151-378 |
167-335 |
183-229 |
|
|
|
|
| MC |
140 |
|
|
|
97-122 |
105-262 |
113-282 |
120-301 |
128-320 |
146-328 |
161-242 |
|
|
|
|
|
| M |
110 |
|
|
|
117-187 |
126-278 |
136-298 |
145-318 |
154-339 |
175-281 |
194 |
|
|
|
|
|
| MF |
85 |
|
|
114 |
124-227 |
134-245 |
144-263 |
153-281 |
163-299 |
186-248 |
|
|
|
|
|
|
| F |
70 |
|
90-135 |
96-176 |
104-191 |
112-206 |
120-221 |
129-236 |
137-251 |
156-208 |
|
|
|
|
|
|
| EF |
38 |
100-125 80% of them are smaller than 6mm-7.5mm |
DP660 |
EC |
270 |
|
|
|
|
177 |
190-338 |
203-436 |
216-464 |
246-547 |
272-605 |
298-662 |
328-511 |
|
|
|
| CX |
235 |
|
|
|
|
174-194 |
187-374 |
200-488 |
212-519 |
242-592 |
268-654 |
293-521 |
323-359 |
|
|
|
| C |
215 |
|
|
|
|
171-190 |
184-367 |
196-480 |
209-510 |
238-582 |
263-643 |
288-512 |
317-353 |
|
|
|
| MC |
175 |
|
|
|
|
162-253 |
174-426 |
186-455 |
198-484 |
226-552 |
249-499 |
273-364 |
|
|
|
|
| M |
135 |
|
|
|
|
197-295 |
211-440 |
226-470 |
240-500 |
274-502 |
302-403 |
|
|
|
|
|
| MF |
115 |
|
|
|
192 |
207-369 |
222-396 |
237-423 |
252-450 |
287-451 |
318-363 |
|
|
|
|
|
| F |
90 |
|
|
|
195-304 |
210-328 |
225-352 |
241-376 |
256-400 |
292-401 |
323 |
|
|
|
|
|
| EF |
65 |
|
|
|
211-293 |
227-316 |
244-298 |
261-290 |
|
|
|
|
|
|
|
|
DP870 |
EC |
300 |
|
|
|
|
|
|
448-588 |
477-849 |
544-968 |
601-1070 |
658-1172 |
725-1291 |
782-1393 |
849-1512 |
906-1331 |
| C |
240 |
|
|
|
|
|
406 |
433-636 |
461-893 |
525-1018 |
581-1125 |
636-1232 |
700-1357 |
756-1464 |
820-1461 |
876-1286 |
| MC |
195 |
|
|
|
|
|
380-440 |
406-723 |
432-837 |
492-954 |
544-1055 |
596-1155 |
657-1272 |
708-1373 |
769-1370 |
821-1206 |
| M |
155 |
|
|
|
|
|
400-563 |
428-786 |
455-836 |
519-953 |
573-1054 |
628-1154 |
692-1271 |
746-1372 |
810-1248 |
865-1098 |
| MF |
100 |
|
|
|
|
379-424 |
407-716 |
434-765 |
462-814 |
527-928 |
852-942 |
638-789 |
702 |
|
|
|
| F |
90 |
|
|
|
357-395 |
385-656 |
414-704 |
442-752 |
470-800 |
535-912 |
592-857 |
649-718 |
|
|
|
|
| EF |
80 |
|
|
280-405 |
304-517 |
328-558 |
352-598 |
376-639 |
400-680 |
455-775 |
503-758 |
551-669 |
|
|
|
|

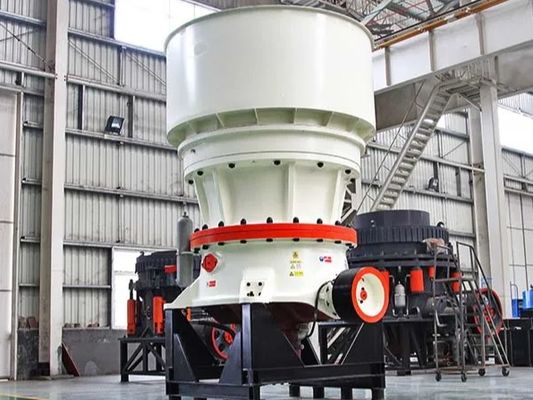

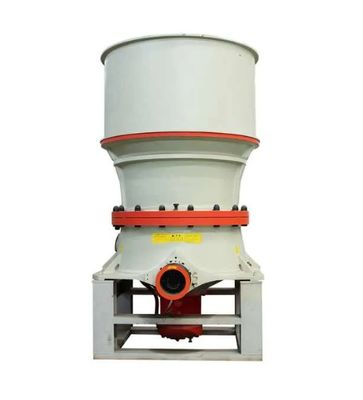

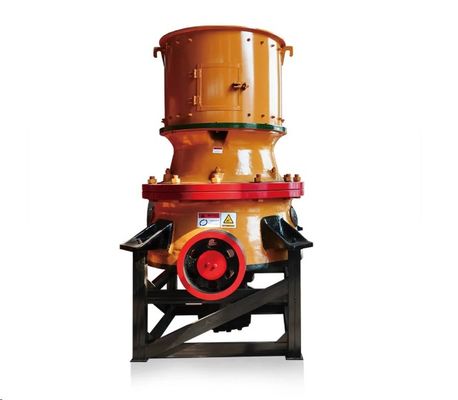

Rroduct Display Of stone crusher machine
stone crusher machine
Aftersales service
ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
