Low Energy Consumption Stable Operation Vertical Compound Crusher
Product Description
Compound vertical crusher, also known as vertical compound crusher or compound crusher, is a kind of equipment commonly used in crushing production line and sand making production line.
Working principle
This machine is mainly composed of a frame, rotor, hammer, lining, feed port, discharge port and other parts. The motor drives the rotor through the rotation of the V-belt, so that the hammer fixed on the rotor runs at a high speed, so that the material fully collides with the hammer and the inner wall lining, thereby crushing the material in the crushing chamber.
Structure
This machine is mainly composed of frame, rotor, hammer head, lining plate, feed port, discharge port and other parts.
features
- Simple structure,
- Large ratio of crushing,
- Low energy consumption,
- Stable rotation,
- Easy operation and maintenance
Main Applications
Widely used in building materials, mining, metallurgy, chemical industry and other industries, used for crushing limestone, clinker, coal, iron ore, molybdenum ore, aluminum ore, dolomite, cement clinker, metal ore and water-containing mud materials, etc.
Performance Parameter Of Stone Crusher Machine
| Specification |
Feed Size
(mm)
|
Discharge Size
(mm)
|
Rotating Speed of Main Shaft
(r/min)
|
Capacity
(t/h)
|
Power
(kw)
|
Outline Dimension
(mm)
|
| PFL-750Ⅲ |
≤100 |
≤3,70-90% |
880~1350 |
8~20 |
45 |
2370×1110×1300 |
| PFL-1000Ⅲ |
≤120 |
≤3,70-90% |
650~980 |
15~30 |
55 |
2680×1520×1420 |
| PFL-1250Ⅲ |
≤150 |
≤3,70-90% |
510~770 |
35~45 |
90 |
3240×1690×1660 |
| PFL-1500Ⅲ (ⅢX) |
≤180 |
≤3,70-90% |
430~640 |
50~70 |
132 |
3530×2050×2030
(3392×2200×2180)
|
| PFL-1750Ⅲ (ⅢX) |
≤200 |
≤3,70-90% |
420~540 |
70~100 |
160 |
3710×2360×2390
(3720×2360×2280)
|
| PFL-2000Ⅲ |
≤220 |
≤3,70-90% |
360~500 |
90~120 |
200 |
4270×2610×2180 |

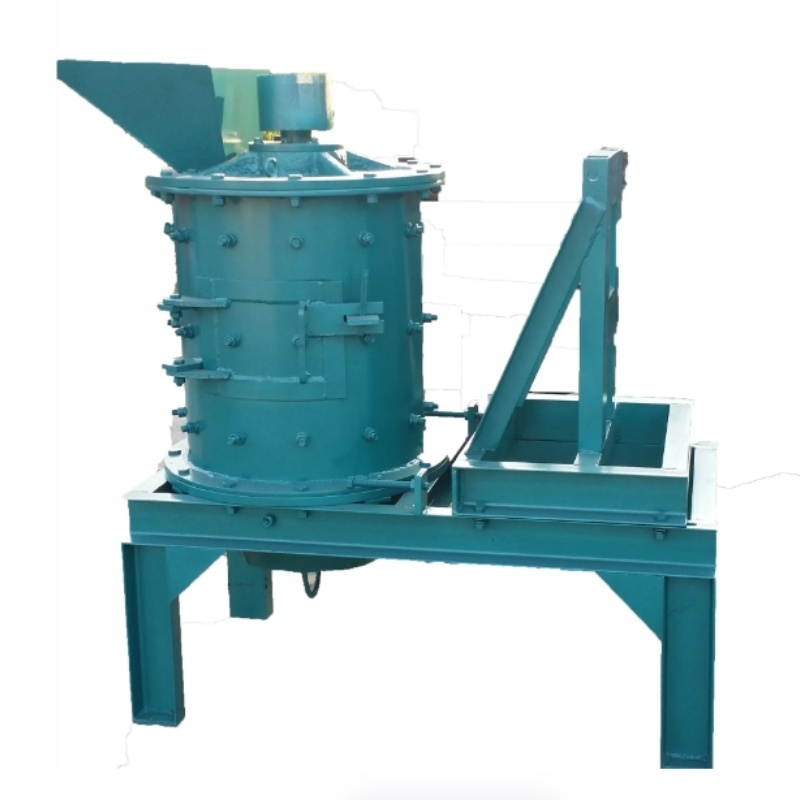

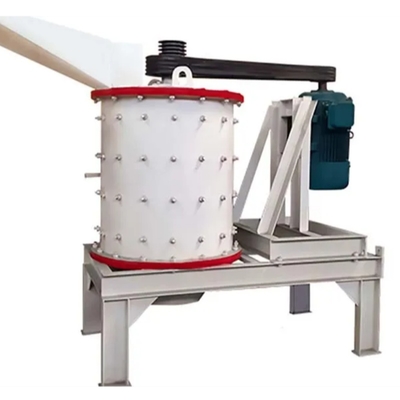

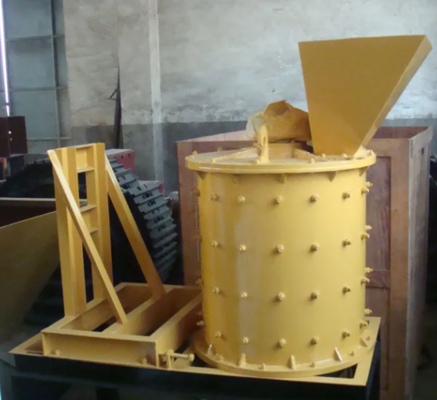

Product Display Of Stone Crusher Machine
Stone Crusher Machine
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
After Sales Service
ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
