Easy Maintenance And High Screening Efficiency Circular Vibrating Screen
Product Description
Circular vibrating screen is a high-efficiency, multi-layer screening equipment with a circular or elliptical motion trajectory, suitable for screening operations of a variety of materials.Circular vibrating screens have been widely used in mining, construction, transportation, energy and chemical industries.
Working Principle
The circular vibrating screen generates exciting force through the rotation of the eccentric block, which makes the screen box move in a circular motion. The material is thrown on the inclined screen surface, and the material smaller than the size of the screen hole passes through the screen to achieve classification.
Features
- Simple structure; Easy to replace screen;
- High screening efficiency, low energy consumption;
- High wear resistance, low noise
Technical advantages
1. It uses an eccentric block to generate a strong exciting force.
2. It adopts a structure with small amplitude, high frequency, and large inclination angle to achieve high efficiency, large processing capacity, long life, low consumption, and low noise.
3. Low power consumption.
4. Simple structure, easy to disassemble and replace;
5. The crossbeam and the screen body are connected by high-strength bolts. Therefore, they have the characteristics of simple structure and easy maintenance.
6. Flexible connection and stable operation.
Product parameters of ore dressing equipment
| Model |
Sieve layer |
Sieve area (m2) |
Mesh size (mm) |
Max feeding size (mm) |
Capacity (m3/h) |
Vibrating Power (r/min) |
Duble amplitude (mm) |
Motor power (kw) |
Sieve obliquity (o) |
Sieve spec. (mm) |
Total weight (kg) |
Dimensions (L*W*H)(mm)
|
|
2YK1225
|
2
|
6
|
4-50
|
400
|
8-60
|
800-970
|
8
|
5.5
|
20
|
1200*2500
|
3500
|
2930*1860*870
|
|
3YK1225
|
3
|
9
|
4-50
|
400
|
10-70
|
800-970
|
8
|
5.5
|
20
|
1200*2500
|
3850
|
3070*1860*1210
|
|
2YK1230
|
2
|
7.2
|
4-50
|
400
|
12-78
|
800-970
|
8
|
7.5
|
20
|
1200*3000
|
4200
|
3430*1860*870
|
|
3YK1230
|
3
|
10.8
|
4-50
|
400
|
13-80
|
800-970
|
8
|
7.5
|
20
|
1200*3700
|
4600
|
3570*1860*1210
|
|
2YK1237
|
2
|
8.88
|
4-50
|
400
|
15-86
|
800-970
|
8
|
7.5
|
20
|
1200*3700
|
4600
|
4050*1860*870
|
| 3YK1237 |
3 |
13.22 |
4-50 |
400 |
16-90 |
800-970 |
8 |
7.5 |
20 |
1500*3500 |
5200 |
4270*1860*1210 |
| 2YK1535 |
2 |
10.5 |
5-50 |
400 |
20-125 |
800-970 |
8 |
11 |
20 |
1500*3500 |
5890 |
4120*2210*1230 |
|
3YK1535
|
3
|
15.75
|
5-50
|
400
|
21-125
|
800-970
|
8
|
11
|
20
|
1500*3500
|
6700
|
4360*2210*1610
|
|
2YK1545
|
2
|
13.5
|
5-50
|
400
|
22-150
|
800-970
|
8
|
15
|
20
|
1500*4500
|
6330
|
5120*2210*1230
|
|
3YK1545
|
3
|
20.25
|
5-50
|
400
|
22-150
|
800-970
|
8
|
15
|
20
|
|
|

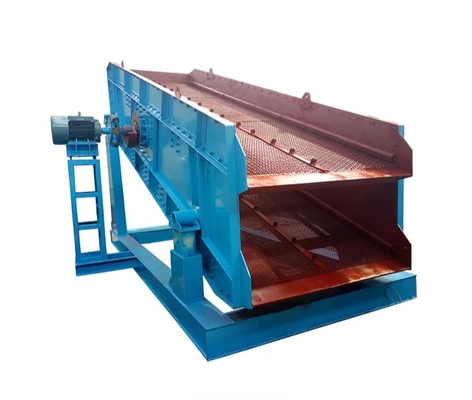

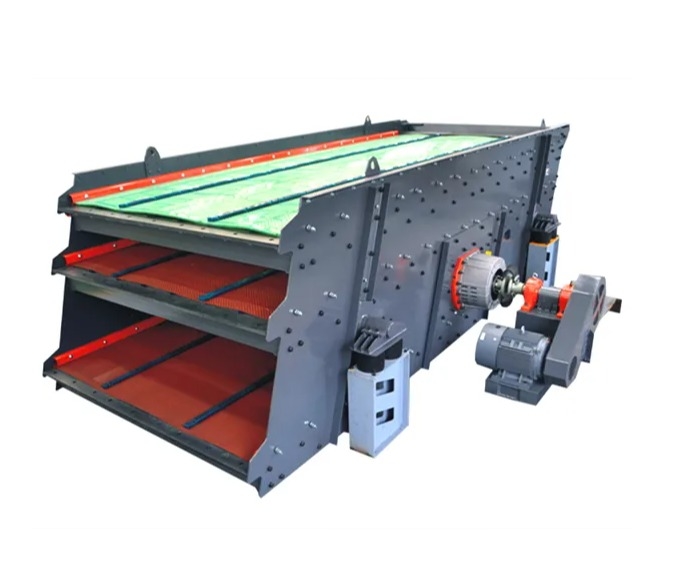

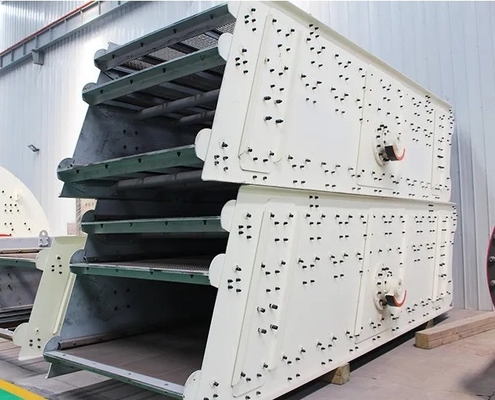

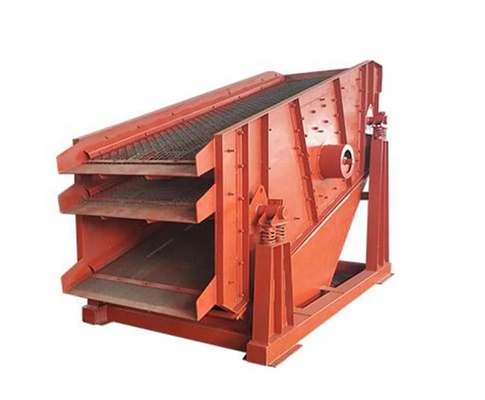

Product Display of ore dressing equipment
ore dressing equipment
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
