Mobile Jaw Crusher Construction Waste Treatment Equipment Concrete Stone Crusher

Large Image : Mobile Jaw Crusher Construction Waste Treatment Equipment Concrete Stone Crusher

Product Details:

Place of Origin:	Henan China
Brand Name:	ZTIC
Certification:	ISO\CE
Model Number:	Stone Crusher Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiated
Packaging Details:	Standard packing or according to customer's requirement

Contact Now

Detailed Product Description

Condition:	New	Name:	Jaw Crusher
Place Of Origin:	China	Used:	Mining, Smelting, Construction, Highway, Railway
Compressive Strength:	320Mpa	Type:	Stone Crusher
Warranty:	12 Months	Port:	Qingdao China

Mobile Jaw Crusher Construction Waste Treatment Equipment Concrete Stone Crusher

Working principle

Jaw crusher is the use of two jaw plate extrusion and bending of materials, coarse or medium crushing of various hardness of materials crushing machinery. The crushing mechanism is composed of a fixed jaw plate and a movable jaw plate. When the two jaw plates are near, the material is broken, and when the two jaw plates leave, the material block smaller than the discharge port is discharged from the bottom. Its breaking action is intermittent. This kind of crusher is widely used in mineral processing, building materials, silicate and ceramics industry because of its advantages of simple structure, reliable work and crushing hard materials.

Main use

Jaw crusher series products are widely used in mining, smelting, construction, highway, railway, water conservancy and chemical industry and other industries. It has the characteristics of large crushing ratio, uniform product particle, reasonable structure, reliable work, convenient maintenance, economic operating costs, etc., crushing compressive strength of various materials does not exceed 320 mpa.

Product images

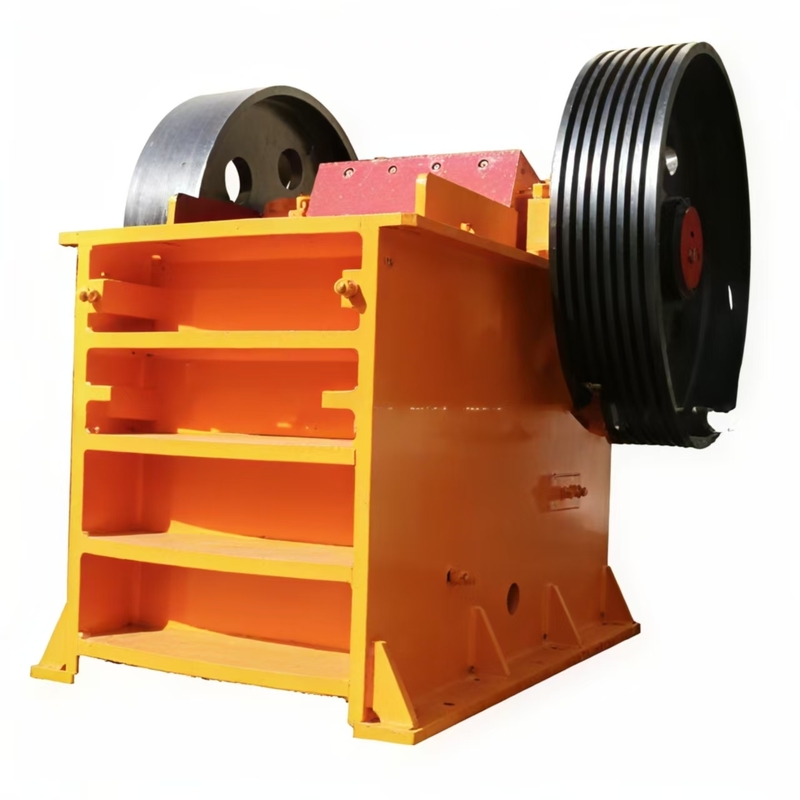

Mobile Jaw Crusher Construction Waste Treatment Equipment Concrete Stone Crusher 0

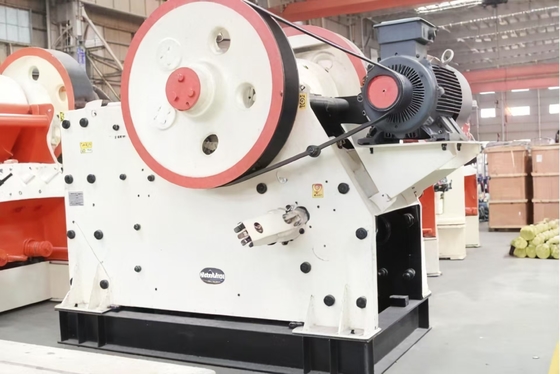

Mobile Jaw Crusher Construction Waste Treatment Equipment Concrete Stone Crusher 1

Product Parameters

feed inlet size	Maximum feed size	Discharge port adjustment range	processing capacity	Eccentric shaft speed	power	weight	size
(mm)	(mm)	(mm)	(t/h)	(r/min)	(kw)	(t)	(mm)
150×250	130	10-40		300	5.5	0.9	875×756×850
250×400	210	20-80		300	15	2.6	1450×1315×1296
400×600	350	40-100	16-65	275	30/37	6.5	1565×1732×1586
500×750	425	50-100	45-100	275	55	10.1	1890×1916×1870
600×900	500	65-160	90-180	250	55/57	15.5	2305×1840×2260
750×1060	630	80-140	110-320	250	110	28	2450×2472×2840
800×1060	650	100-200	140-350	250	110	28.5	2450×2556×2800
870×1060	670	200-260	140-380	250	110	30.5	2660×2556×2800
900×1200	750	100-200	180-360	250	132	50	3335×3182×3025
1000×1200	850	192-260	200-420	250	132	51	3435×3182×3025
1200×1300	1000	180-330	400-800	220	200	62	4538×2984×3959
1200×1500	1020	150-350	400-800	180	220	100.9	4200×3732×3025
1500×1800	1200	220-350	450-1000	180	280	122	5100×4700×4300
250×1000	210	25-60	16-52	330	30/37	6.5	1530×1992×1380
250×1200	210	25-60	20-60	330	37	7.7	1900×2192×1430
300×1300	250	25-90	20-90	330	55	11	1900×2192×1430
