Efficient Independent Use Of Mobile Crushing Plants For Highways

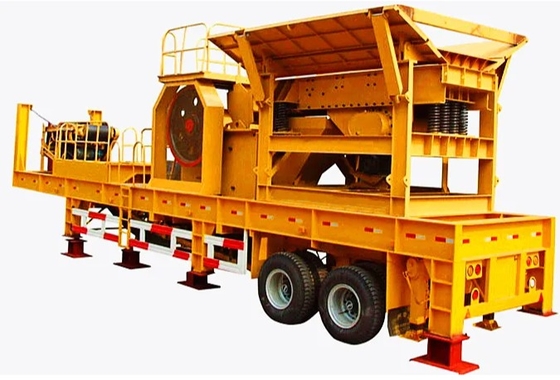

Large Image : Efficient Independent Use Of Mobile Crushing Plants For Highways

Product Details:

Place of Origin:	Henan, China
Brand Name:	ZTIC
Certification:	ISO CE, ISO/CE
Model Number:	Stone Crusher Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1.0 Set/Sets
Price:	$1,000.00 - $60,000.00 / Set
Packaging Details:	Simple package
Payment Terms:	L/C, T/T
Supply Ability:	200.0 Set/Sets per Year

Contact Now

Detailed Product Description

Condition:	New	Motor Type:	AC Motor
Capacity(t/h):	20-700 Tph	Weight:	35t
Warranty:	12 Months	Mobile Crusher:	Mobile Jaw Crusher/Mobile Impact Crusher
Transportation Size:	11900×2550×3650 Mm	Tire Configuration:	Dualaxial
Jaw Crusher:	PE600×900	The Maximum Feeding Size:	480mm
Port:	Qingdao,Shanghai,Tianjin	Type:	Stone Crusher Machine
Discharge Opening Size:	65~160mm	Capacity:	90~180t/h
Vibrating Feeder:	GZD960×3800

Efficient Independent Use Of Mobile Crushing Plants For Highways

Product Description

Mobile crushers are highly efficient equipment that integrates crushing, screening, and conveying functions. They are widely used in mining, construction, highway, and railway engineering applications.

Working Principle and Structure

Integrated Design: Mobile crushers typically consist of a crusher, vibrating feeder, screening system, belt conveyor, and onboard power unit. Their modular design facilitates transportation and installation.

Crushing Methods: Various physical crushing methods, such as crushing, splitting, and pulverizing, are employed depending on the material's characteristics.

Advantages:

Flexibility: Rapid deployment allows for adaptability to diverse operating environments, minimizing site restrictions.
Efficient and Energy-Saving: The integrated unit design reduces material transportation and operating costs.
Adaptability: Different crushing and screening systems can be configured to meet diverse production needs.

Technical Data Of Stone Crusher Machine

Mobile Primary Jaw Crusher Technical Data

Technical Data//Model		LYCJ69	LYCJ750	LYCJ912	LYCJ860	LYCJ1100
Transportation size(mm)		11900×2550×3650	13500×2550×4300	15200×2950×4450	14600×2750×4350	15200×2800×4900
Weight(t)		35	52	80	59	85
Tire Configuration		Dualaxial	Triaxial	Triaxial	Triaxial	Triaxial
Jaw Crusher		PE600×900	PE750×1060	PE900×1200	PEW860	PEW1100
The Maximum Feeding Size(mm)		480	630	750	730	940
Discharge Opening Size(mm)		65~160	80~140	100~200	75~225	150~275
Capacity(t/h)		90~180	110~320	220~450	150~500	300~650
Vibrating Feeder		GZD960×3800	GZD1100×4200	GZD1300×4900	GZD1300×4900	GZD1300×4900
Main Belt Conveyor		B800×8.5M	B1000×9M	B1200×9.5M	B1200×9.5M	B1200×9.5M
Side Belt Conveyor (optional)		B450×3M	B500×3.5M	B650×4M	B650×4M	B650×4M
Electric control	standard	control box + control panel	control box + control panel	control box + control panel	control box + control panel	control box + control panel
Electric control	optional	Control box + LCD	Control box + LCD	Control box + LCD	Control box + LCD	Control box + LCD
Hydraulic leg	standard	4	4	4	4	4
Hydraulic leg	optional	2	2	2	2	2
Hydraulic cylinder	standard	4	4	4	4	4
Hydraulic cylinder	optional	5	5	5	5	5
Genset (optional)(Kw)		180	250	250	270	380
Iron Separator (optional) (Kw)		RCYD(C)-8	RCYD(C)-10	RCYD(C)-12	RCYD(C)-12	RCYD(C)-12

Note:Any change of technical data shall not be advised additionally.

Mobile Primary Impact Crusher Technical Data

Technical Data//Model		LCI1214Ⅱ	LCI315Ⅱ	LCI318Ⅱ
Transportation size(mm)		11900×2650×3850	13500×2780×4150	15200×2950×4300
Weight(t)		41	52	61
Tire Configuration		Dualaxial	Triaxial	Triaxial
Impact Crusher		PFW-1214Ⅱ	PFW-1315Ⅱ	PFW-1318Ⅱ
The Maximum Feeding Size(mm)		500	600	700
Capacity(t/h)		130~200	180~320	240~400
Vibrating Feeder		GZD960×3800	GZD1100×4200	GZD1300×4900
Main Belt Conveyor		B800×8.5M	B1000×9M	B1200×9.5M
Side Belt Conveyor (optional)		B450×3M	B500×3.5M	B650×4M
Electric control	standard	control box + control panel	control box + control panel	control box + control panel
Electric control	optional	Control box + LCD	Control box + LCD	Control box + LCD
Hydraulic leg	standard	4	4	4
Hydraulic leg	optional	2	2	2
Hydraulic cyclinder	standard	4	4	4
Hydraulic cyclinder	optional	5	5	5
Genset (optional) (Kw)		270	380	440
Iron Separator (optional)(Kw)		RCYD(C)-8	RCYD(C)-10	RCYD(C)-12

Note:Any change of technical data shall not be advised additionally.

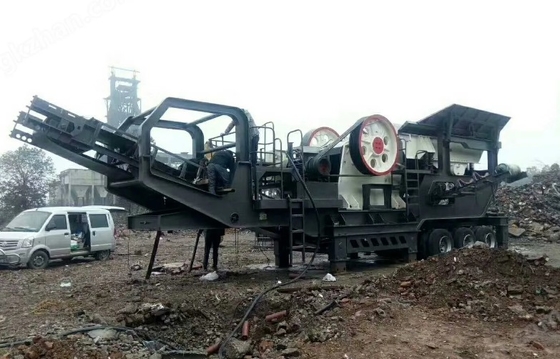

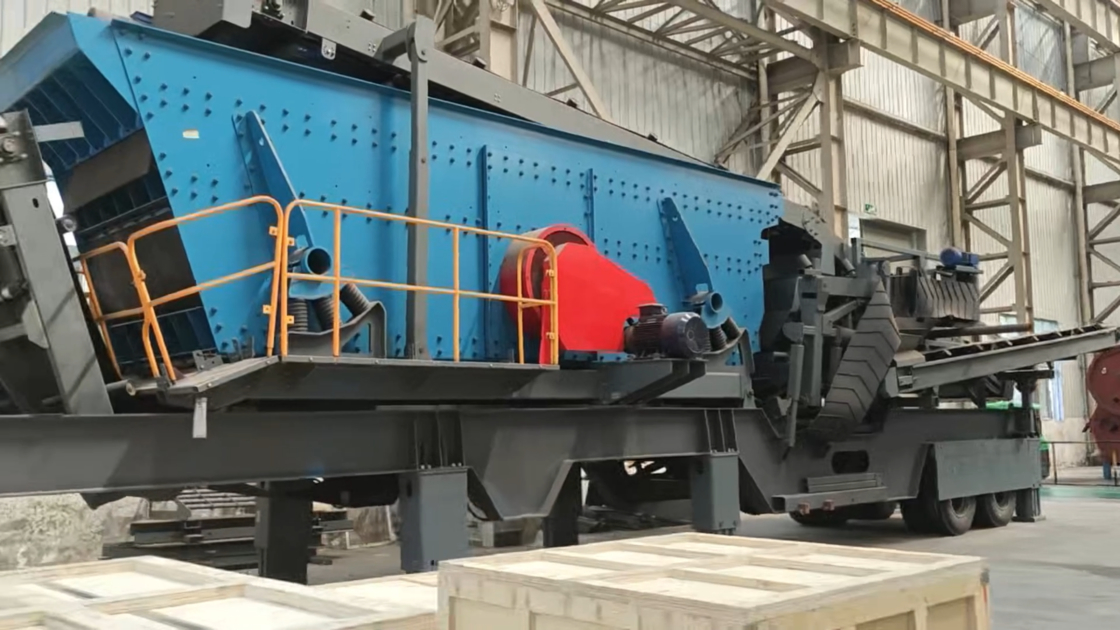

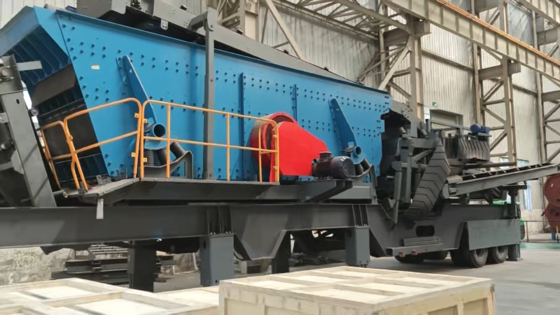

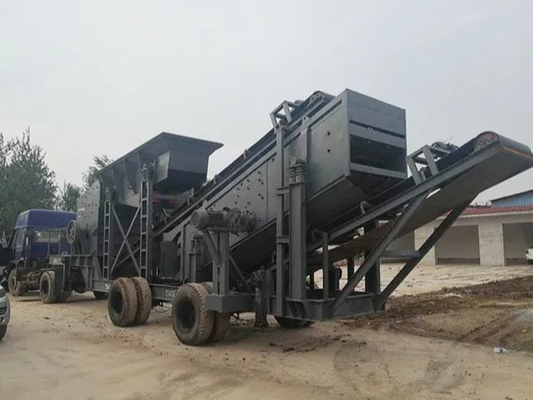

Product Display Of Stone Crusher Machine

Stone Crusher Machine

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.

After Sales Service

ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
