Solid-Liquid Separation Filtration High Pressure Round Plate Filter Press

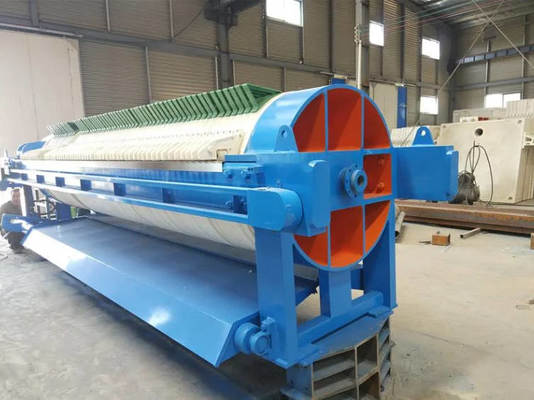

Large Image : Solid-Liquid Separation Filtration High Pressure Round Plate Filter Press

Product Details:

Place of Origin:	Henan China
Brand Name:	ZTIC
Certification:	ISO\CE
Model Number:	Ore Dressing Equipment

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiated
Packaging Details:	Standard packing or according to customer's requirement

Contact Now

Detailed Product Description

Condition:	New	Warranty:	12 Months
Area:	40(㎡)	Plate Size:	φ800mm
Port:	Qingdao China	Classification:	Ore Dressing Equipment
Cake Thickness:	25mm
Highlight:	high pressure plate filter press , solid liquid separation filtration equipment , round plate filter press for ore dressing

Solid-Liquid Separation Filtration High Pressure Round Plate Filter Press

The circular plate filter press is a highly efficient solid-liquid separation device. Its core principle is to utilize the pressure differential across the filter cloth to trap solid particles in the liquid feed within the filter chamber, forming a filter cake, while the liquid passes through the cloth and is discharged. The equipment primarily consists of a frame, filter plates, a compression system, and an electrical control system.

It’s mainly used for solid-liquid separation in stone waste water, ceramics, kaolin, building materials industries. High filter pressure, low water content rate of filter cakes.

Product Advantages:
Efficient Dehydration: High pressure extrusion significantly reduces the moisture content of the filter cake, making it suitable for high-viscosity materials.

Stable Operation: The circular structure distributes force evenly, reducing the risk of deformation and improving sealing.

High Level of Automation: Supports fully automated plate pulling, liquid collection, and washing processes, reducing manual intervention.

High Corrosion Resistance: Optional filter plate materials are available to adapt to various acid and alkaline environments.

Product Parameters of Ore Dressing Equipment

Model	Area(m²)	Plate size(mm)	Cake thickness(mm)	Filter chamber volume(L)	Plate Qty(pcs)	Filtration pressure(Mpa)	Weight(Kg)	LWH(mm)	Foundation Sizel(mm)
									L	B	D
XMY40/φ800-25	40	φ800	25	499	40	1.0-3.0	4554	4300×1100×1060	3500	530	1050
XMY50/φ800-25	50			621	50		5150	4820×1100×1060	4020
XMY60/φ800-25	60			753	60		9710	5340×1100×1060	4540
XMY70/Φ800-25	70			875	70		5760	5860×1100×1060	5580
XMY80/φ800-25	80			1000	80		6860	6200×1100×1060	5660
XMY80/φ1000-30	80	φ1000	30	1210	59	1.0-3.0	6652	7254×1311×1399	5857	680	1400

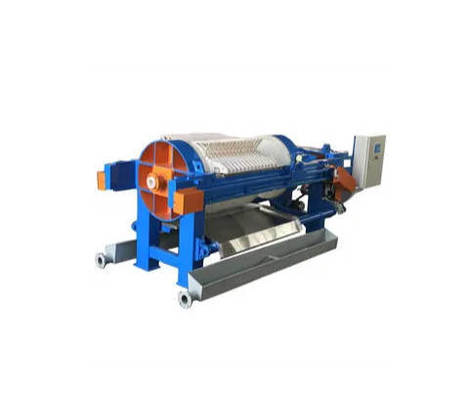

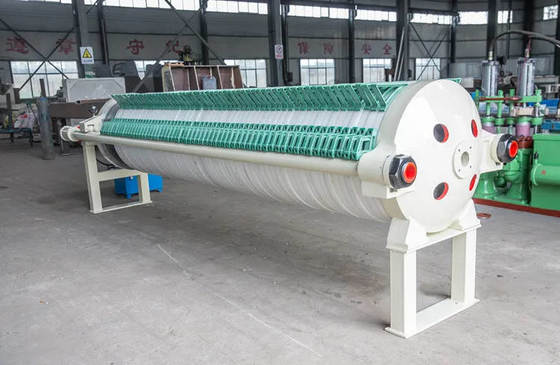

Product Display of Ore Dressing Equipment

Solid-Liquid Separation Filtration High Pressure Round Plate Filter Press 0

Solid-Liquid Separation Filtration High Pressure Round Plate Filter Press 1
