Simple Structure Easy Operation Manual Jack Filter Press

Large Image : Simple Structure Easy Operation Manual Jack Filter Press

Product Details:

Place of Origin:	Henan China
Brand Name:	ZTIC
Certification:	ISO\CE
Model Number:	Ore Dressing Equipment

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiated
Packaging Details:	Standard packing or according to customer's requirement

Contact Now

Detailed Product Description

Condition:	New	Warranty:	12 Months
Area:	1(㎡)	Plate Size:	380*380mm
Port:	Qingdao China	Classification:	Ore Dressing Equipment
Cake Thickness:	30mm

Simple Structure Easy Operation Manual Jack Filter Press

Manual Jack Filter Press is an intermittent pressure filtration device. A screw driven by a mechanical jack or handwheel compresses the filter plates to form a sealed filter chamber, achieving solid-liquid separation. The device primarily consists of three main components: a frame (including thrust plates, compression plates, and main beam), a filter unit (filter plates and filter cloth), and a compression mechanism (handwheel, worm gear, or screw jack).

Application Scope: Generally used for laboratory-scale filter presses with filtration areas ranging from 1 to 40 square meters.

Product Features: Structural Characteristics:

The screw jack-type filter press employs a screw jack as its compression mechanism, featuring a simple structure, convenient operation, no power requirement, and cost-effective practicality.

Product Parameters of Ore Dressing Equipment

Technical Data Of Recessed Filter Press

Model				Filter area(㎡)	Pldte size(mm)	Cake thickness(mm)	Filter chamber volume(L)	XMber plate(pcs)	Number frame(pcs)	Filtration pressure(Mpa)	Weight(kg)	Dimensions LWH(mm)	Foundation Size(mm)
													L	B	D	H
B	A	Q1/320-30U	B	1	380*380	30	15	4	5	≤0.5	500	1180570660	1010	280	570	470
	M		K
B	A	Q2/320-30U	B	2			31	9	10		545	1620570660	1310
	M		K
B	A	Q3/320-30U	B	3			46	14	15		570	1920570660	1610
	M		K
B	A	Q4/450-30U	B	4	500*500		60	9	10		798	1750800900	1400	390	820	560
	M		K
B	A	Q6/450-30U	B	6			91	14	15		858	2050800900	1700
	M		K
B	A	Q8/450-30U	B	8			121	19	20		918	2350800900	2000
	M		K
B	A	Q10/450-30U	B	10			151	24	25		978	2650800900	2300
	M		K
B	A	Q12/450-30U	B	12			182	29	30		1038	2950800900	2600
	M		K
B	A	Q15/450-30U	B	15			225	36	37		1122	3370800900	3020
	M		K
B	A	Q16/450-30U	B	16			243	39	40		1158	3560800900	3200
	M		K
B	A	Q15/630-30U	B	15	710*710		226	18	19		1579	246011101190	2080	560	1110	700
	M		K
B	A	Q20/630-30U	B	20			297	24	25		1796	282011101190	2440
	M		K
B	A	Q30/630-30U	B	30			452	37	38		2258	360011101190	3220
	M		K
B	A	Q40/630-30U	B	40			595	49	50		2893	442011101190	4040
	M		K

Technical Data Of Plate& Frame Filter Press

Model					Filter area(m²)	Plate size(mm)	Cake thickness(mm)	Filter chamber volume (U)	Plate NO.(pcs)	Filtration pressure(Mpa)	Weight(Kg)	DimensionsLWH(mm)	Foundation Size(mm)
													L	B	D	H
X	A	Q1/320-30U	B		1	380*380	30	15	4	≤0.6	490	1230570660	920	280	570	470
	M		K
X	A	Q2/320-30U	B		2			31	9		528	1455570660	1145
	M		K
X	A	Q3/320-30U	B		3			46	14		550	1680570660	1370
	M		K
X	A	Q4/320-30U	B		4	500*500		60	9	≤0.6	780	1630800900	1280	390	800	560
	M		K
X	A	Q6/320-30U	B		6			91	14		830	1880800900	1530
	M		K
X	A	Q8/320-30U	B		8			121	19		880	2130800900	1780
	M		K
X	A	Q10/450-30U		B	10			151	24		930	2380800900	2030
	M			K
X	A	Q12/450-30U		B	12			182	29		980	2630800900	2280
	M			K
X	A	Q15/450-30U		B	15			225	36		1030	2980800900	2630
	M			K
X	A	Q16/450-30U		B	16			243	39		1050	3130800900	2780
	M			K
X	A	Q15/630-30U		B	15	700*700		226	18	≤0.6	1257	225010801060	1870	560	910	700
	M			K
X	A	Q20/630-30U		B	20			297	24		1347	255010801060	2170
	M			K
X	A	Q30/630-30U		B	30			452	37		1693	320010801060	2820
	M			K
X	A	Q40/630-30U		B	40			595	49		2193	390010801060	3520
	M			K

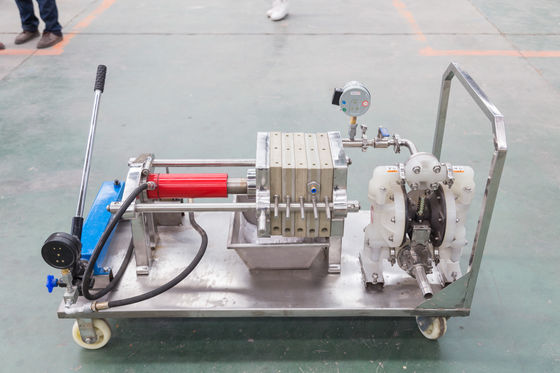

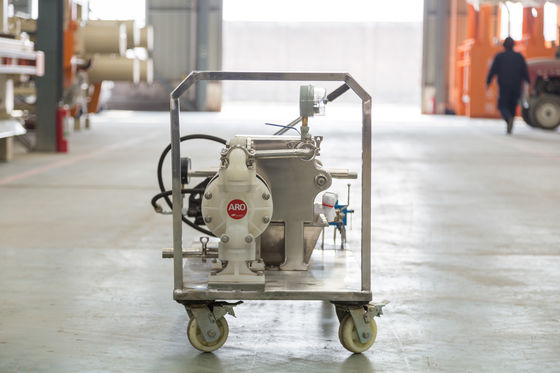

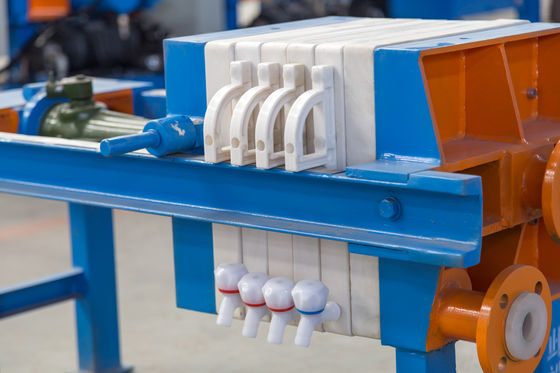

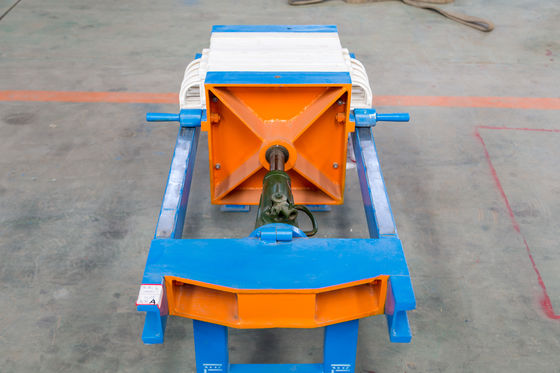

Product Display of Ore Dressing Equipment

Simple Structure Easy Operation Manual Jack Filter Press 0

Simple Structure Easy Operation Manual Jack Filter Press 1
