Widely used in various thicknesses Stainless Steel Filter PressFor Fine Filtration

Large Image : Widely used in various thicknesses Stainless Steel Filter PressFor Fine Filtration

Product Details:

Place of Origin:	Henan China
Brand Name:	ZTIC
Certification:	ISO\CE
Model Number:	Ore Dressing Equipment

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiated
Packaging Details:	Standard packing or according to customer's requirement

Contact Now

Detailed Product Description

Condition:	New	Warranty:	12 Months
Area:	14(㎡)	Plate Qty:	41piece
Port:	Qingdao China	Classification:	Ore Dressing Equipment
Feeding Flow:	10-13T/h
Highlight:	stainless steel filter press , fine filtration filter press , ore dressing filter press

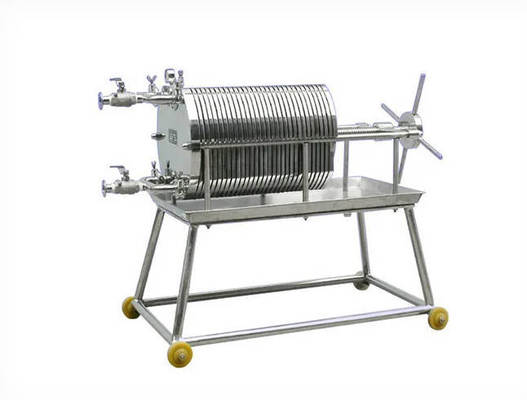

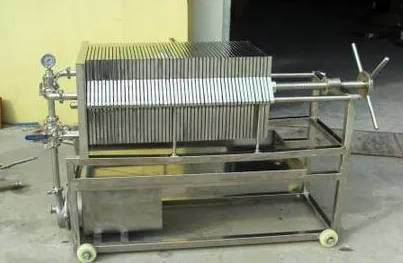

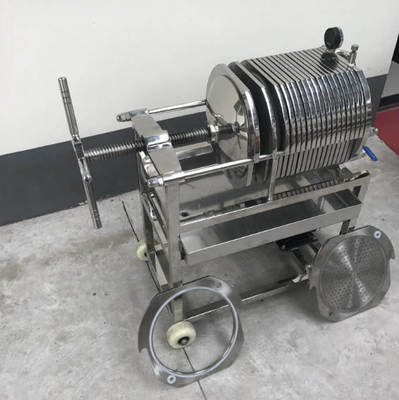

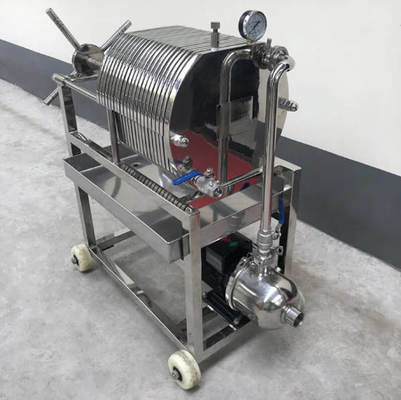

Widely used in various thicknesses Stainless Steel Filter Press For Fine Filtration

This type of filter press is suitable for various sector such as: liquid medicine, plasma, liquor(beer, wine, spirit, yellow wine, fruit wine), beverage, juice, syrup, vinegar, oil(for food or industry usage), fine chemicals, electroplating water industries.

Material: frame: S.S.-304;plate: S.S.-304(316L or PP could be optional)
Sealing ring material: white silastic. Working pressure: <0.4 MPa; Working temperature:<120℃ Major dimensions: plate thickness:13mm; Individual chamber volume: 4.8L.
Squeezing method: Screw/Manual Hydraulic(Others: Manual jack/ Automatic hydraulic etc.) Filter material: Filter paper board, Filter paper, Filter membrane, filter cloth, etc.
Precision: Cloth from 200 to 300 mesh for rough filtration, and paper or membrane from 0.22 to 0.45μm for refined filtration.

Product Parameters of Ore Dressing Equipment

Technical Data

Model	Area(m²)	Plate Qty(piece)	Feeding Flow(T/h)	Plate Size(mm)	Dimension(mm)

BASJL600-14	14	41	10-13	600×600	1750×870×1350
BASJL600-21	21	61	15-20	600×600	2100×870×1350
BASJL600-24	24	71	20-25	600×600	2250×870×1350
BASJL600-35	35	101	25-30	600×600	2800×870×1350

Technical data of cast

Model	Area(m²)	Plate Qty(piece)	Feeding Flow(T/h)	Plate External Size(mm)	Power of Feeding Pump(KW)	Dimension(mm)

BASJL400-2	2	15	1-2	400×400	1.5	1250×660×1300
BASJL400-3	3	21	1-3	400×400	1.5	1350×660×1300
BASJL400-4	4	31	3-4	400×400	1.5	1550×660×1300
BASJL400-6	6	45	4-6	400×400	1.5	1750×660×1300
BASJL400-8.5	8.5	61	6-8	400×400	2.2	2100×660×1300
BASJL400-9.5	9.5	71	8-10	400×400	2.2	2300×660×1300

The pressing mode of this model is screw and manual hydraulic pump pressing, or stainless steel jacks pressing, the price is the same.

Product Display of Ore Dressing Equipment

Widely used in various thicknesses Stainless Steel Filter PressFor Fine Filtration 0

Widely used in various thicknesses Stainless Steel Filter PressFor Fine Filtration 1

Ore Dressing Equipment
