Screw Filter Suitable For Sludge With High Oil Content

Large Image : Screw Filter Suitable For Sludge With High Oil Content

Product Details:

Place of Origin:	Henan China
Brand Name:	ZTIC
Certification:	ISO\CE
Model Number:	Ore Dressing Equipment

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiated
Packaging Details:	Standard packing or according to customer's requirement

Contact Now

Detailed Product Description

Condition:	New	Warranty:	12 Months
Screw Qty:	1	Screw Power:	0.18kw
Port:	Qingdao China	Classification:	Ore Dressing Equipment
Mixing Power:	0.18kw
Highlight:	screw filter for oily sludge , high oil content sludge filter , ore dressing screw filter

Screw Filter Suitable For Sludge With High Oil Content

Introduction

Screw filter is mainly used in wastewater treatment industries, such as: municipal wastewater, waster water from food, beverage, chemical, leather, and sludge treatment in papermaking, printing and dyeing, pharmaceutical and other industries.Especially suitable for treating sludge with high oil content.
Because of screw squeezing technology, the power consumption is very low, so that save running cost. It's difficult to be blocked, so the quantity of washing waster will be greatly decreased. It can running continuously for 24 hours, so it has feature of lowest labour cost.
Under the same situation, the water consumption is only 1/80 of the belt filter press and the power consumption is only 1/12 of the centrifuge machine.
Fully automatic running. From feeding, adding chemicals to cake discharging, all steps can be controlled automatically and can contentiously run for 24 hours.

Product Parameters of Ore Dressing Equipment

Main technical parameters

Model	Material	Absolute dry sludge capacity	Dimension LxWxH(mm)	Net Weight KG	Running Weight KG
DZDL101	S.S.304 (Other material is optional.)	~5-7kgds/h	1830x760x 1040	205	315
DZDL131		~10-14kgds/h	2000x900x1300	250	250
DZDL201		~15-20kgds/h	2500x800x1270	420	395
DZDL202		~30-40kgds/h	2580x1045x1270	470	540
DZDL203		~45-60kgds/h	2580x1350x1270	690	1030
DZDL301		~50-70kgds/h	3255x985x1750	900	1300
DZDL302		~100-140kgds/h	3455x1300x1750	1350	2000
DZDL303		~150-210kgds/h	3615x1690x1750	1880	2700
DZDL304		~200-280kgds/h	3900x2110x1950	2500	3600
DZDL351		~100-120kgds/h	4140x 1160x2300	1100	2000
DZDL352		~200-240kgds/h	4250x 1550x2300	2100	3250
DZDL353		~300-360kgds/h	4520x 1965x2300	3100	4600
DZDL354		~400-480kgds/h	4700x2505x2300	4100	5700
DZDL401		~130-160kgds/h	5200x 1400x2560	3000	4800
DZDL402		~260-320kgds/h	5200x 1880x2560	4500	6500
DZDL403		~270-450kgds/h	5200x2525x2560	5500	8000
DZDL404		~390-480kgds/h	5250x3105x2560(mm)	7000	9500

Main operating parameters

Model	Screw Qty	Screw Power	Mixing Power	Dimension	Flushing water consumption	Washing Water Source
DZDL101	1	0.18kw	0.18kw	Φ100x1150(mm)	24L/h	Running water will be ok.(No need high pressure.)
DZDL131	1	0.18kw	0.18kw	Φ130x1150(mm)	24L/h
DZDL201	1	0.37kw	0.18kw	Φ200x1570(mm)	32L/h
DZDL202	2	0.37kwx2	0.55kw	Φ200x1570(mm)	64L/h
DZDL203	3	0.37kwx3	0.55kw	Φ200x1570(mm)	96L/h
DZDL301	1	0.75kw	0.55kw	Φ300x2270(mm)	40L/h
DZDL302	2	0.75kwx2	0.75kw	Φ300x2270(mm)	80L/h
DZDL303	3	0.75kwx3	1.1kw	Φ300x2270(mm)	120L/h
DZDL304	4	0.75kwx4	1.1kw	Φ300x2270(mm)	160L/h
DZDL351	1	1.1kw	0.75kw	Φ350x2800(mm)	70L/h
DZDL352	2	1.1kwx2	1.1kw	Φ350x2800(mm)	140L/h
DZDL353	3	1.1kwx3	1.1kw	Φ350x2800(mm)	210L/h
DZDL354	4	1.1kwx4	1.1x2kw	Φ350x2800(mm)	280L/h
DZDL401	1	1.5kw	1.1kw	Φ400x3600(mm)	80L/h
DZDL402	2	1.5kwx2	1.1kw	Φ400x3600(mm)	160L/h
DZDL403	3	1.5kwx3	1.1x2kw	Φ400x3600(mm)	240L/h
DZDL404	4	1.5kwx4	1.1x2kw	Φ400x3600(mm)	320L/h

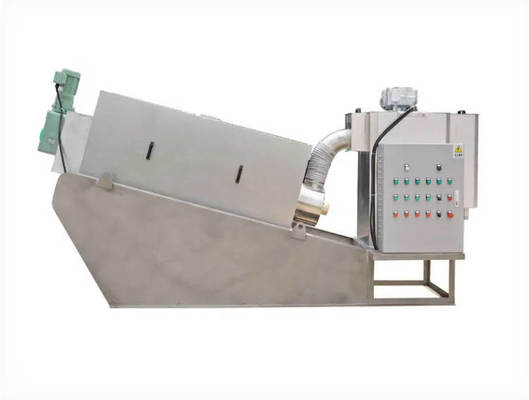

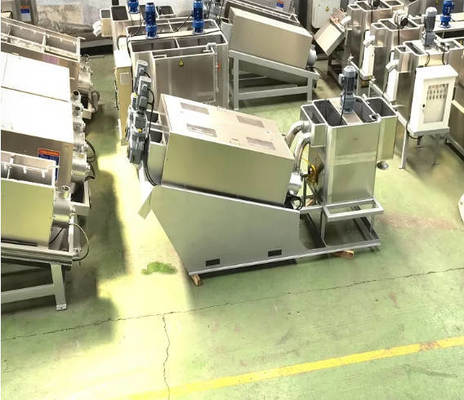

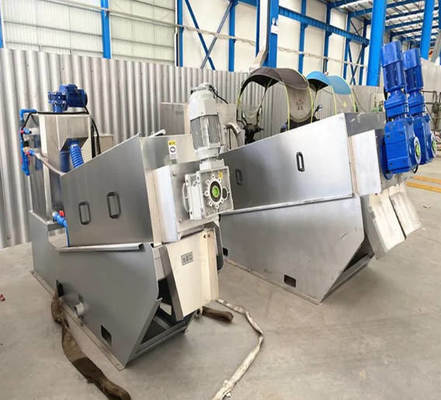

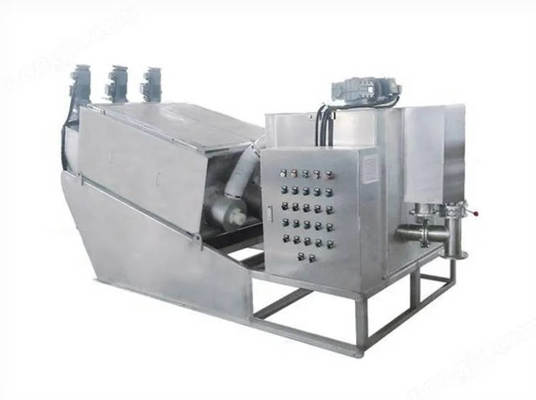

Product Display of Ore Dressing Equipment

Screw Filter Suitable For Sludge With High Oil Content 0

Screw Filter Suitable For Sludge With High Oil Content 1

Ore Dressing Equipment
