Low Energy Consumption And High Efficiency Fully Automatic Sludge Thickening Screw Press

Large Image : Low Energy Consumption And High Efficiency Fully Automatic Sludge Thickening Screw Press

Product Details:

Place of Origin:	Henan China
Brand Name:	ZTIC
Certification:	ISO\CE
Model Number:	Ore Dressing Equipment

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiated
Packaging Details:	Standard packing or according to customer's requirement

Contact Now

Detailed Product Description

Condition:	New	Warranty:	12 Months
DS Capacity:	70~100kg/hm³/hr	Screw. Specification:	φ300×1
Port:	Qingdao China	Classification:	Ore Dressing Equipment
Net Weight:	850kg
Highlight:	fully automatic sludge screw press , low energy sludge thickening press , high efficiency ore dressing equipment

Low Energy Consumption And High Efficiency Fully Automatic Sludge Thickening Screw Press

Sludge thickening screw press inherits the technical advantages of sludge dewatering screw press and developed its own advantages, such as low energy consumption, high afficiency, fully automatic control, and stable operation. It can drectly thicken the sludge in the secondary sedimentation tank quickly and continuously, and the sludge concentration is stable and adjustable in the range of 90-96%. After using this equipment, thickening tank is not needed any more, which reduces construction cost and land space. Furthermore, it can effectively reduce the odor and phosphonus release caused by the sludge in the thickening tank, release the workload of subsequent treatments, and significantly increase the capacity of sludge dewatering equipment.

Working principle

The sludge thickening screw press is composed of a thickener, a driving device, a filtrate tank, a mixing system, and a frame. When the screw press is working, the sludge is pumped to the mixing tank by the sludge pump. In the mean time, the dosing pump also quantitatively transports the polymer to the mixing tank, then the stiming motor drives agitator to start mixing until solid particles are flocculated. When the liquid level reaches the upper level of the liquid level sensor, the sensor gets a signal and instructs the main motor of screw press to work, thereby starting to filter and press the sludge that comes into the screws body. Under the squeezing of the screw shaft. the sludge is raised step by step to the sludge outlet, and the filtrate flows out from the gap between the fixed ring and the moving ring.
in general. the sludge thickener screw press uses the principle of screw extrusion which is finalized by the strong extrusion force from the change of screw diameter and pitch, and the tiny gap between the moving ring and the fixed ring, thus the solid and liquid can be separated. Sludge thickening screw press is a new type of solid-liquid separation equipment for sludge concentration.

Product Parameters of Ore Dressing Equipment

Main technical parameters

Model	DSCapacity (m³/hr)	Sludge treatment capacity				Screw. specification	Distance of mud cake outlet from ground (mm)	Size (mm)			net weight (kg)	Running weight (kg)	Motor power(kw)			water pressure	Cleaning water (L/h)	Maintenance frequency	Consumable parts replacement cycle (years)
		2500mg/L	5000mg/L	10000mg/L	20000mgL			L	W	H			Spiral shaft	Mixer	total				Spiral shaft	Activity Ring
DLN301	70~100kg/h	28m³/h	14 m³/h	10m³h	5m³/h	φ300×1	500	3160	1150	2000	850	1250	0.75	0.55	1.3	0.1Mpa~0.2Mpa (No need to use high pressure Flushing device)	40	5 minutes/day	10	5
DLN302	140~200kg/h	56m³/h	28 m³/h	20 m³/h	10 m³/h	φ300×2	500	3360	1350	2000	1200	1900	1.5	0.75	2.25		80		10	5
DLN303	210~300kg/h	84 m³/h	42 m³/h	30 m³/h	15m/h	φ300×3	500	3560	1600	2000	1750	2550	2.25	1.1	3.35		120		10	5
DLN304	280~400kg/h	112 m³/h	56 m³/h	40 m³/h	20 m³/h	φ300×4	500	3700	2110	2000	2300	3400	3	1.1	4.1		160		10	5
DLN351	120~160kg/h	48 m³/h	24 m³/h	16m³/h	8m³/h	φ350×1	680	3850	1200	2300	1030	1930	1.1	0.75	1.85		60		10	5
DLN352	240~320kg/h	96 m³/h	48 m³/h	32 m³/h	16m³/h	φ350×2	680	3950	1600	2300	1960	3110	2.2	1.1	3.3		120		10	5
DLN353	360~480kg/h	144 m³/h	72 m³/h	48 m³/h	24 m³/h	φ350×3	680	4250	2000	2300	2890	4390	3.3	1.5	4.8		180		10	5
DLN354	480~640kg/h	192 m³/h	96 m³/h	64 m³/h	32 m³/h	φ350×4	680	4400	2550	2300	3820	5420	4.4	0.75+0.75	5.9		240		10	5
DLN401	200~300kg/h	80 m³/h	40 m³/h	30 m³/h	15m³/h	φ400×1	880	4450	1400	2560	2090	4090	1.5	1.1	2.6		80		10	5
DLN402	400~600kg/h	160 m³/h	80 m³/h	60 m³/h	30 m³/h	φ400×2	880	4650	1900	2560	3280	5780	3	1.5	4.5		160		10	5
DLN403	600~900kg/h	240 m³/h	120 m³/h	90 m³/h	45m³/h	φ400×3	880	4750	2550	2560	5170	7670	4.5	1.1+1.1	6.7		240		10	5
DLN404	800~1200kg/h	320 m³/h	160 m³/h	120 m³/h	60 m³/h	φ400×4	880	4850	3150	2560	6560	9060	6	1.1+1.1	8.2		320

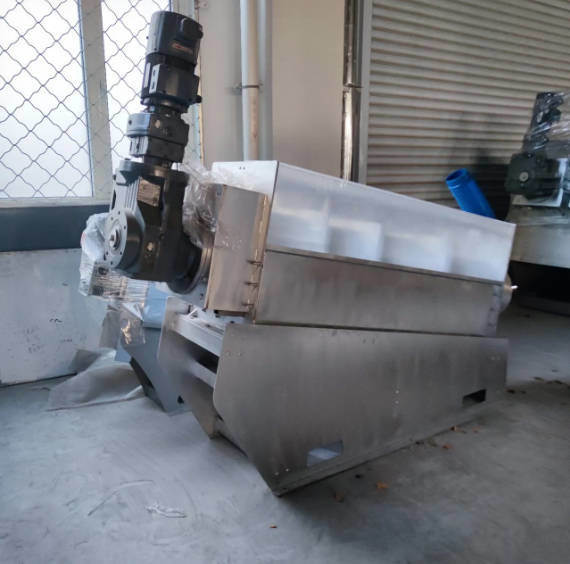

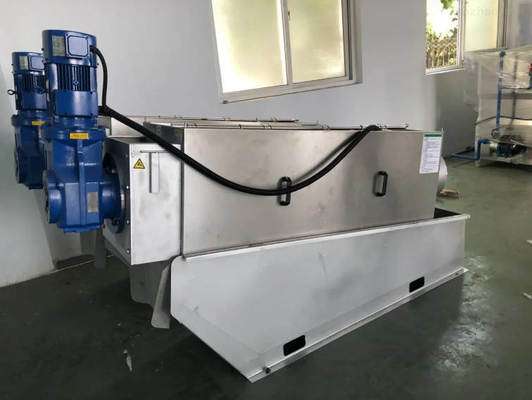

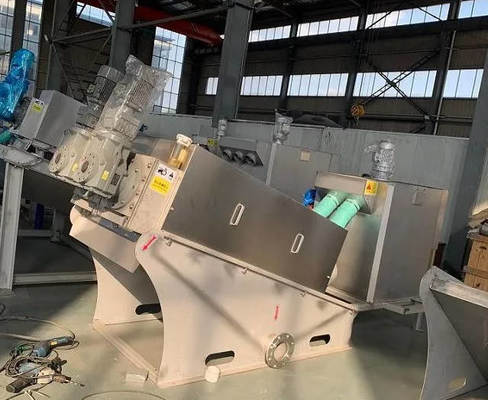

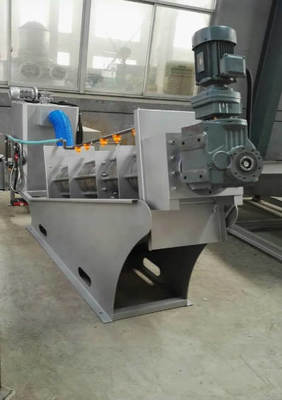

Product Display of Ore Dressing Equipment

Low Energy Consumption And High Efficiency Fully Automatic Sludge Thickening Screw Press 0

Low Energy Consumption And High Efficiency Fully Automatic Sludge Thickening Screw Press 1

Ore Dressing Equipment
