High-Efficiency Three Filter Belt Type Concentrated Filter Press

Large Image : High-Efficiency Three Filter Belt Type Concentrated Filter Press

Product Details:

Place of Origin:	Henan China
Brand Name:	ZTIC
Certification:	ISO\CE
Model Number:	Ore Dressing Equipment

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiated
Packaging Details:	Standard packing or according to customer's requirement

Contact Now

Detailed Product Description

Condition:	New	Warranty:	12 Months
Belt Width:	500mm	Capacity:	5-15m³hr
Port:	Qingdao China	Classification:	Ore Dressing Equipment
Cake Moisture:	65-84%

High-Efficiency Three Filter Belt Type Concentrated Filter Press

The three-filter belt concentrator and dehydrator is an efficient sludge treatment equipment. It achieves integrated concentration and dehydration of sludge through the coordinated operation of three filter cloths. It is widely used in municipal sewage treatment plants, industrial wastewater treatment stations and other scenarios.

Features
Multi-layer filter cloth synergy: Three filter cloths operate simultaneously to remove free water and bound water through gravity dehydration and multi-stage pressing (low → medium → high pressure) to form a high-dry mud cake.
Automated operation: Equipped with automatic vibration drainage, elastic cleaning system and pneumatic correction device, it supports continuous 24-hour automatic operation and reduces manual intervention.
Structural design optimization: The wedge-shaped pre-pressure zone is combined with the "S"-shaped pressing section to increase the pressure to improve dehydration efficiency; the extra-large diameter drainage roller design reduces the risk of mud runoff.

Product Parameters of Ore Dressing Equipment

Technical Data Of Cast Iron Filter Press

Model	Belt Width(mm)	Low Consistency		Middle Consistency		Cake Moisture(%)	Power(kw)			S.S.Tray	Reference Dimensions(mm)			Foundation Dimensions L2xW1(mm)	Weight(kgs)
		Capacity (m³/hr) Feed concentration (Solid content 0.5-1%)	DS(kg/hr) Dry Solid	Capacitym³/hr) Feed concentration (Solid content 1-1.5%)	DS(kg/hr) Dry Solid		Power of Driving Motor	Mixing Power	Gravity concen-trator motor power
											L	W	H
DNY500-3	500	5-15	30-60	4-7.5	50-94	65-84	0.75	0.75	0.55	with	2600	1050	2175	2455*836	1200
DNY750-3	750	7-15	42-90	6-10.5	75-140	65-84	0.75	0.75	0.55	with	2600	1300	2160	2455*1096	1600
DNY1000-3	1000	10-20	60-120	11-15	100-188	65-84	0.75	0.75	0.55	with	3000	1550	2160	2455*1346	1800

DNY1250-3	1250	15-25	84-168	15-21	140-263	65-84	0.75	0.75	0.55	with	3000	1800	2160	2455*1596	1960
DNY1500-3	1500	18-30	100-198	18-25	160-300	65-84	0.75	0.75	0.55	with	3000	2050	2160	2455*1846	2250
DNY1500L-3	1500	20-35	110-215	20-28	180-330	65-84	0.75	0.75	0.55	with	3000	2550	2160	2455*2096	2600
DNY1750-3	1750	22-40	120-234	21-30	196-368	65-84	0.75	0.75	0.55	without	3000	2300	2160	2455*2096	2800
DNY2000-3	2000	25-45	140-270	23-35	240-450	65-84	1.1	0.75	0.55	without	3200	2550	2180	2455*2346	3200
DNY2500-3	2500	35-55	180-350	28-50	300-550	65-84	2.2	1.5	0.75	without	4600	3050	2600	4255*2846	3600
DNY3000-3	3000	40-65	220-420	35-60	350-650	65-84	3	2.2	1.5	without	4600	3550	2600	4255*3346	4000
Remark		Decided by the nature of wasrewater								Can be customized	We will supply with drawings

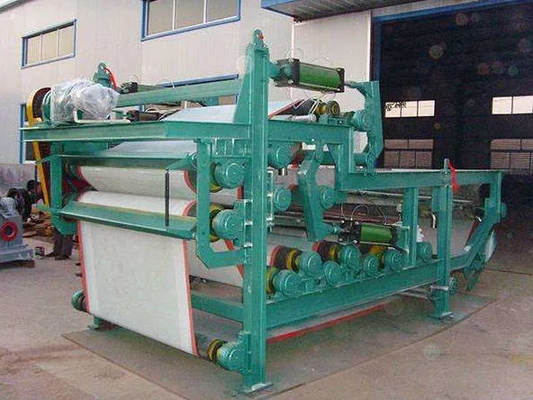

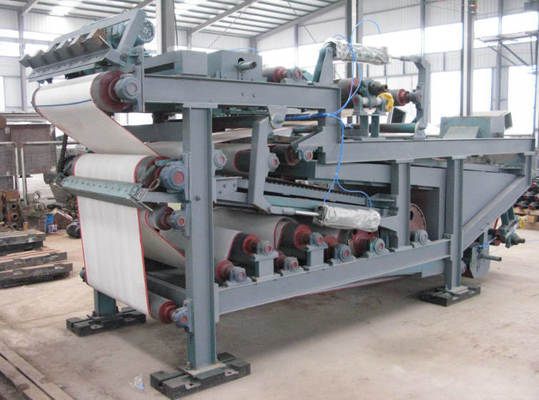

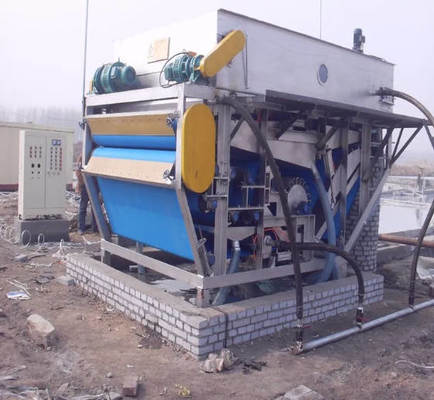

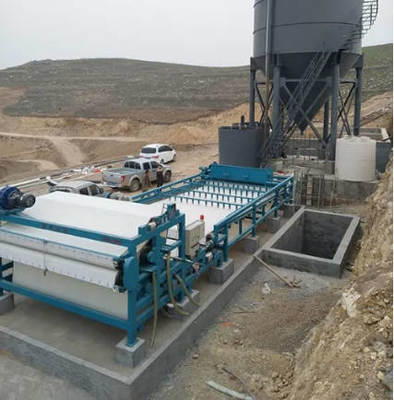

Product Display of Ore Dressing Equipment

High-Efficiency Three Filter Belt Type Concentrated Filter Press 0

High-Efficiency Three Filter Belt Type Concentrated Filter Press 1

Ore Dressing Equipment
