Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Diameter: | 600mm | Rotation Speed: | 1500rad/ Min |
| Port: | Qingdao China | Classification: | Ore Dressing Equipment |
| Volume: | 45L |

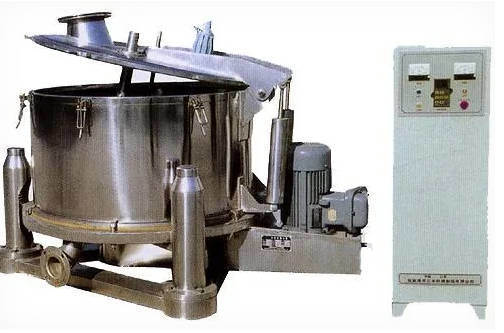

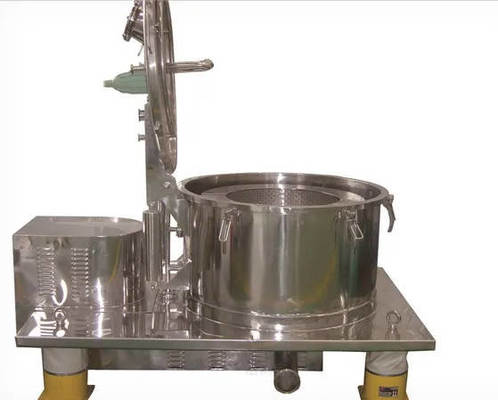

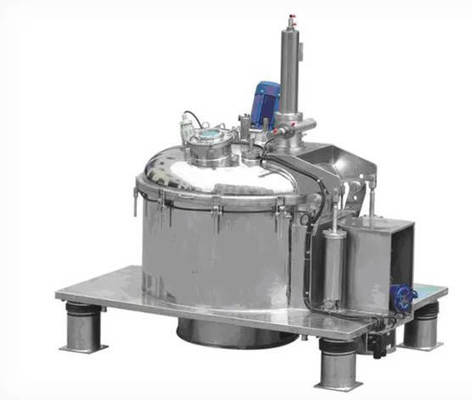

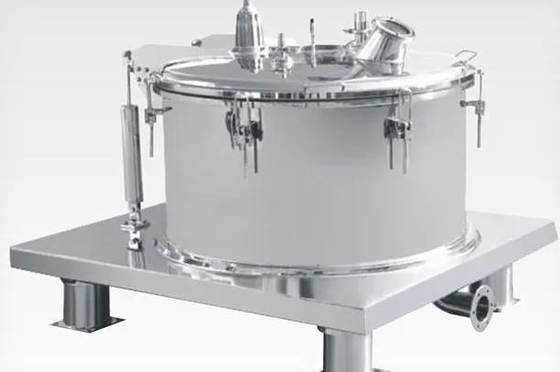

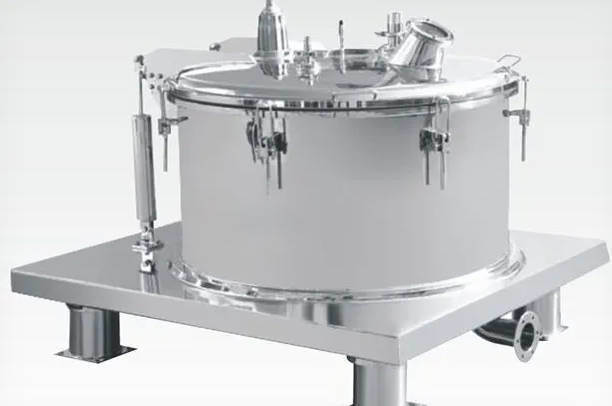

Widely Used SB Top Discharge Centrifuge
SB top discharge clean centrifuge is a filter centrifuge designed for the pharmaceutical, food and other industries. It complies with GMP standards and has a fully enclosed structure, online cleaning and nitrogen protection functions to ensure high cleanliness and safety.
SB series centrifugal machine discharges on the top, but the chamber is sealed. The material is feed into the chamber via top inlet, and under the centrifugal force, the liquid will go through the filtering medium out, but the solid will be blocked inside. It's features of stable performance, easy operation, best solid washing effect, little solid broken, sealed working. The machine is suitable for the solutions whose solid is bigger than 0.01 mm, such as: particles, crystals, fibers, textiles etc., especially for the solids, which is viscous, fine, toxic, flammable etc., so it's widely used in following industries: chemicals, medicines, food, light industries etc.. And according to customer's needs, we can produce special centrifugal machines.
Product Parameters of Ore Dressing Equipment
Technical Data Of SB top discharge centrifuge
| Model | Rotating Drum | Centrifugal Factor (w²/g) | Power(kw) | L×b×h | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Diameter(mm) | RotationSpeed(rad/ min) | Volume(L) | Materel Weight (kg) | Total Weight (kg) | Dimension | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SB600 | 600 | 1500 | 45 | 70 | 755 | 3 | 600 | 1350×990×750 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SB800 | 800 | 1300 | 98 | 120 | 756 | 5.5 | 1300 | 1740×1380×1000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SB1000 | 1000 | 1000 | 140 | 150 | 560 | 7.5 | 1500 | 1950×1560×1050 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SB1200 | 1200 | 800 | 230 | 200 | 430 | 11 | 1800 | 2370×1600×1000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SB1500 | 1500 | 600 | 360 | 400 | 300 | 15 | 3200 | 2640×1850×1100 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Display of Ore Dressing Equipment
![]()
![]()
Ore Dressing Equipment
