Durable And With Low Vibration Filter Cloth Cloth Washer

Large Image : Durable And With Low Vibration Filter Cloth Cloth Washer

Product Details:

Place of Origin:	Henan China
Brand Name:	ZTIC
Certification:	ISO\CE
Model Number:	Ore Dressing Equipment

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiated
Packaging Details:	Standard packing or according to customer's requirement

Contact Now

Detailed Product Description

Condition:	New	Warranty:	12 Months
Breaking Strength:	4.3-9g/d	Breaking Elongation:	20~50%
Port:	Qingdao China	Classification:	Ore Dressing Equipment
Softening Point:	238~240℃

Durable And With Low Vibration Filter Cloth Cloth Washer

Filter cloth cleaning machines are industrial devices specifically designed to remove impurities and dirt from the surface of filter cloths. They remove contaminants from the filter cloths through mechanical friction or beating, achieving filter cloth purification and reuse.

The filter cloth washer adopts horizontal roller type. The tank is made from high-quality stainless steel plate. The surface is flat and smooth, which lengthens life of machine and reduces the filter cloth wear. The inner tank gate has stainless steel safety lock device, and the outer tank gate has electric interlock device, making the machine running safely and reliably. It adopts texrope as the transmitting motion to make the machine working in low noise and stable operation. The filter cloth washer is applicable for various cloth materials, increasing the washing efficiency.

Product Parameters of Ore Dressing Equipment

Filter cloth features

Performance

Acid resistance

Alkaline resistance

Breaking Strength(g/d)

Breaking Elongation(%)

Softening Point(℃)

Melting Point ( % )

Specific Gravity

Chemical Name

Polyester

Weekalkali resistance

4.3-9

20~50

238~240

255~260

Polyethylene Terephthalate Resin

Nylon

4.5-9.5

20~40

180~235

215~260

Polyamide

4.5-9

18~35

140~160

165~173

Polypropylene

12~26

220~230

Not obvious

1.26~1.30

Polypropylene

Specification of cloth washer

Model	Capacity(kg)	Inner Size(mm)	Motor power(kw)	Rotating Speed(r/min)	Stream pressure(Mpa)	Weight(Kg)	Equipment size(mm)

GX15	15	Φ520×620	0.75	33	0.3-0.6	220	1080×660×1100
GX20	20	Φ520×660	0.75	33	0.3-0.6	290	1100×800×1200
GX30	30	Φ660×800	1.5	33	0.3-0.6	700	1460×900×1200
GX50	50	Φ800×980	2.2	33	0.3-0.6	900	1640×900×1200
GX70	7	Φ950×1300	3	33	0.3-0.6	1500	2220×1340×1360

GX100	100	Φ960×1420	3	33	0.3-0.6	1750	2380×1340×1380
GX150	150	Φ1060×1650	4	33	0.3-0.6	1850	2560×1390×1520
GX200	200	Φ1080×2000	5.5	33	0.3-0.6	2200	2990×1400×2210
GX250	250	Φ1200×2200	7.5	33	0.3-0.6	2500	3100×1550×2250
GX300	300	Φ1300×2300	7.5	33	0.3-0.6	2800	3200×1650×2350

Product Display of Ore Dressing Equipment

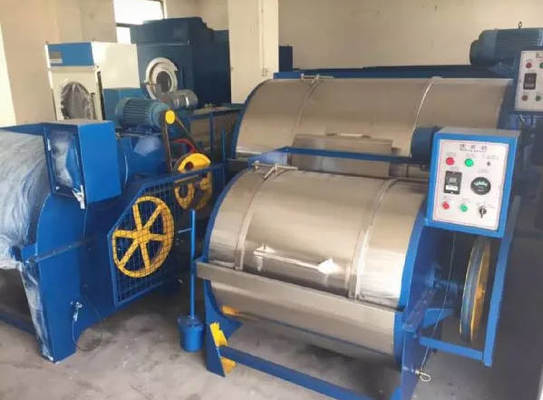

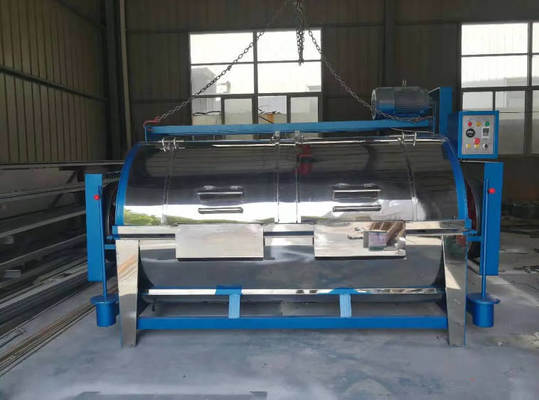

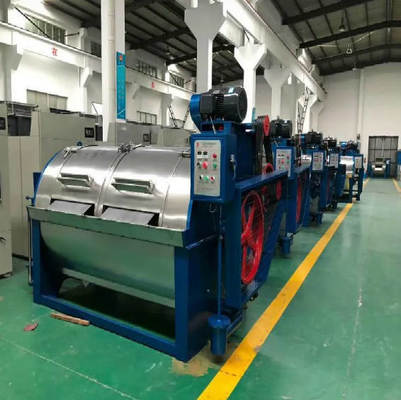

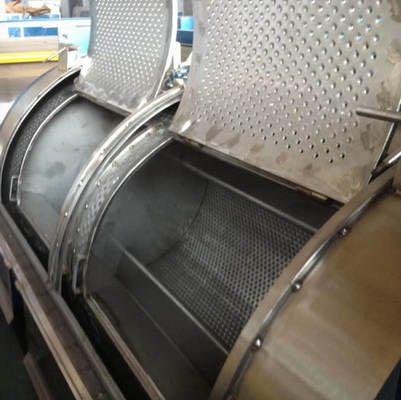

Durable And With Low Vibration Filter Cloth Cloth Washer 0

Durable And With Low Vibration Filter Cloth Cloth Washer 1
